55 Results

Manufacturer1

Product Series Line0

IC Encapsulation Type0

Availability Status0

Device Type Classification0

Thermal Package Design0

Mounting Technique0

Physical Shape Form0

Linear Length Dimension0

Horizontal Width Dimension0

Circular Measurement0

Heat Sink Fin Elevation0

Power at Temp Increase0

Thermal Resistance with Fan0

Passive Cooling Resistance0

Construction Material Type0

Surface Material Treatment0

Manufacturer

SAME SKY (FORMERLY CUI DEVICES)

Part Number
Manufacturer
Price
Product Series Line
IC Encapsulation Type
Availability Status
Device Type Classification
Thermal Package Design
Mounting Technique
Physical Shape Form
Linear Length Dimension
Horizontal Width Dimension
Circular Measurement
Heat Sink Fin Elevation
Power at Temp Increase
Thermal Resistance with Fan
Passive Cooling Resistance
Construction Material Type
Surface Material Treatment

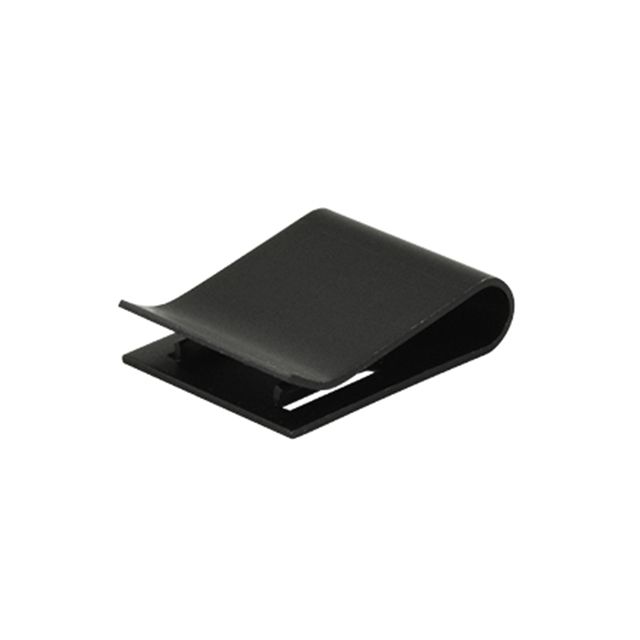

HSS-B20-NP-13 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level
TO-220
Bolt On
Rectangular, Fins
0.700" (17.78mm)
1.750" (44.45mm)
-
0.375" (9.52mm)
3.9W @ 75°C
5.88°C/W @ 200 LFM
19.22°C/W
Aluminum
Black Anodized

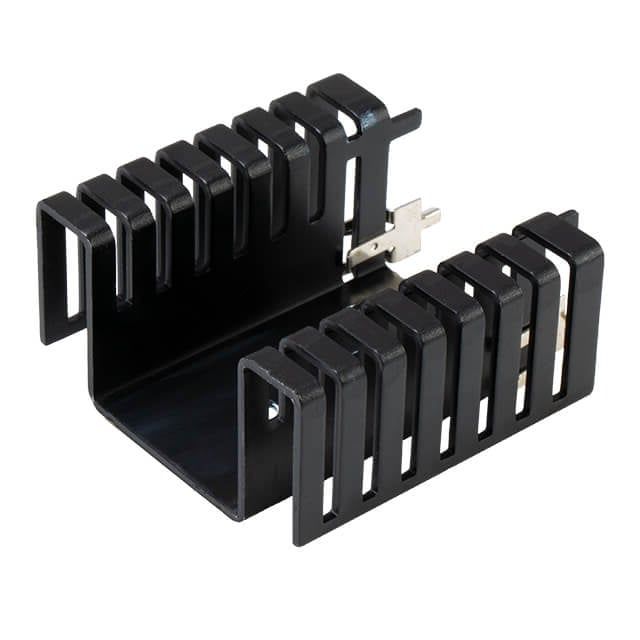

HSS01-B20-CP SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Box
Active
Board Level, Vertical
TO-220
Bolt On and PC Pin
Rectangular
1.941" (49.31mm)
1.900" (48.26mm)
-
0.950" (24.13mm)
9.9W @ 75°C
3.70°C/W @ 200 LFM
7.59°C/W
Aluminum Alloy
Black Anodized

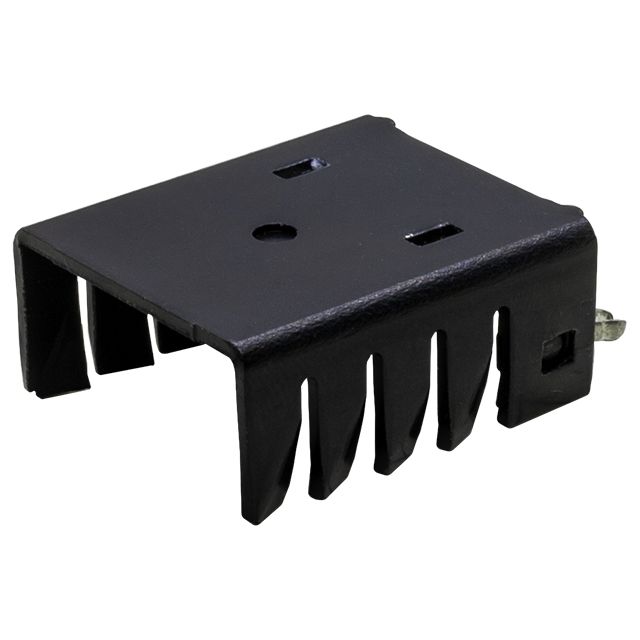

HSS-B20-065V-02 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level
TO-220
PC Pin
Rectangular, Fins
0.748" (19.00mm)
0.504" (12.80mm)
-
0.500" (12.70mm)
2.9W @ 75°C
7.24°C/W @ 200 LFM
25.92°C/W
Aluminum
Black Anodized

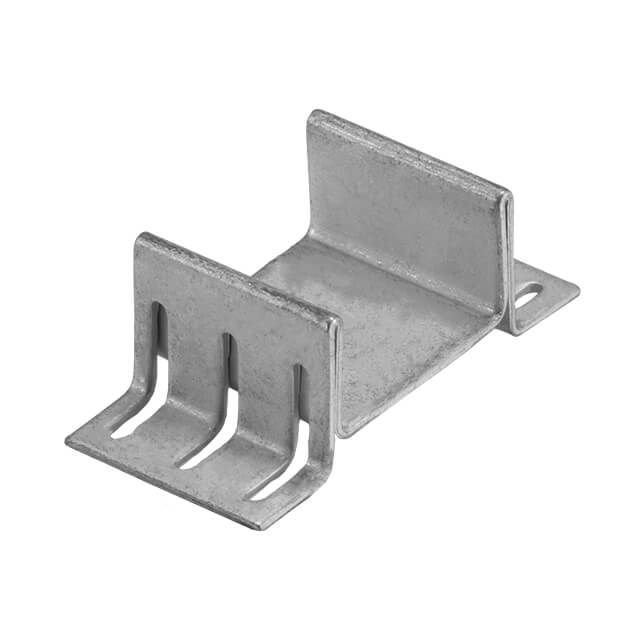

HSE-B1711-057 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSE
Box
Active
Board Level
TO-220
Bolt On
Rectangular, Fins
0.984" (25.00mm)
0.625" (16.00mm)
-
0.354" (9.00mm)
3.1W @ 75°C
7.07°C/W @ 200 LFM
24.19°C/W
Aluminum Alloy
Black Anodized

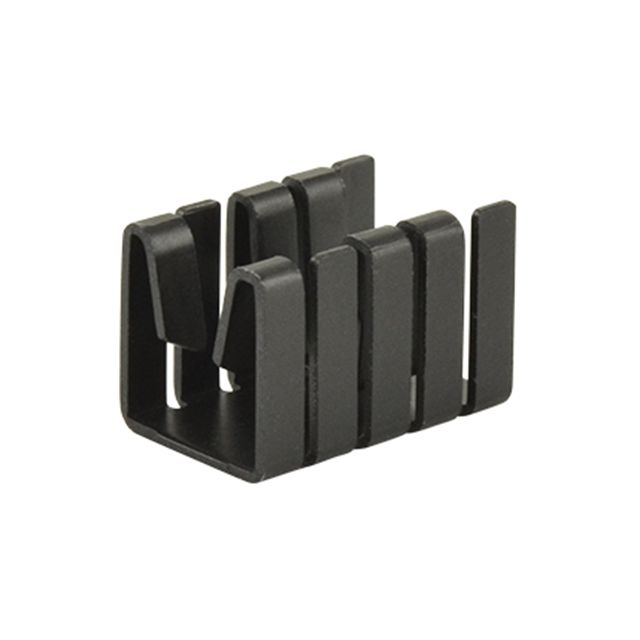

HSS-B20-0452H SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Obsolete
Board Level, Vertical
TO-220
PC Pin
Rectangular, Fins
0.500" (12.70mm)
0.500" (12.70mm)
-
0.748" (19.00mm)
3.2W @ 75°C
6.40°C/W @ 200 LFM
23.81°C/W
Aluminum
Black Anodized

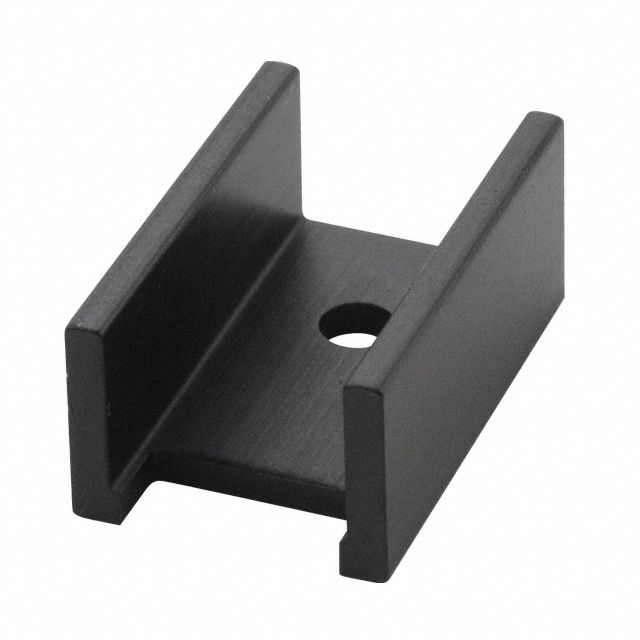

HSS-B20-NP-07 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level
TO-220
-
Rectangular, Fins
0.591" (15.00mm)
0.504" (12.80mm)
-
0.500" (12.70mm)
2.3W @ 75°C
11.04°C/W @ 200 LFM
33.28°C/W
Aluminum
Black Anodized
HSS-B20-NP-02 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level
TO-220
-
Rectangular, Fins
0.748" (19.00mm)
0.830" (21.08mm)
-
0.394" (10.00mm)
3.6W @ 75°C
5.39°C/W @ 200 LFM
20.59°C/W
Aluminum
Black Anodized
HSS04-B20-P318 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Box
Active
Board Level, Vertical
TO-220
Bolt On and PC Pin
Rectangular
1.650" (41.91mm)
1.750" (44.45mm)
-
0.380" (9.65mm)
5.9W @ 75°C
5.50°C/W @ 200 LFM
12.79°C/W
Aluminum Alloy
Black Anodized

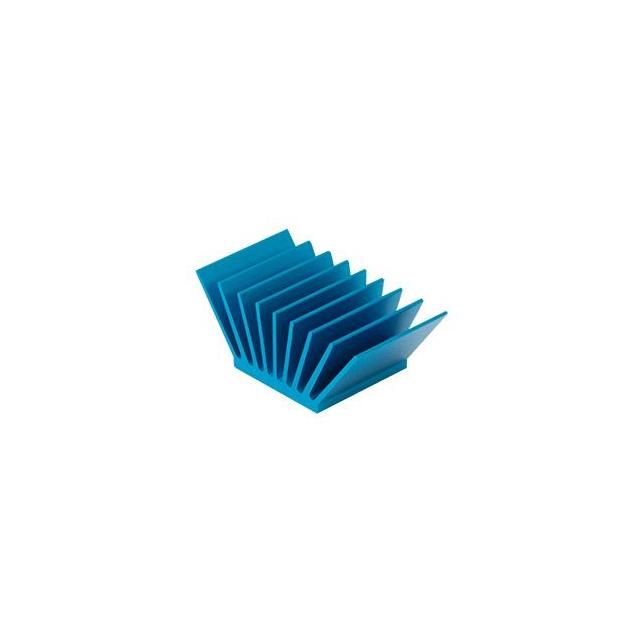

HSE02-173213P SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSE
Box
Active
Top Mount
-
Thermal Tape, Adhesive (Included)
Square, Angled Fins
0.669" (17.00mm)
0.669" (17.00mm)
-
0.492" (12.50mm)
3.5W @ 75°C
6.70°C/W @ 200 LFM
21.44°C/W
Aluminum Alloy
Blue Anodized

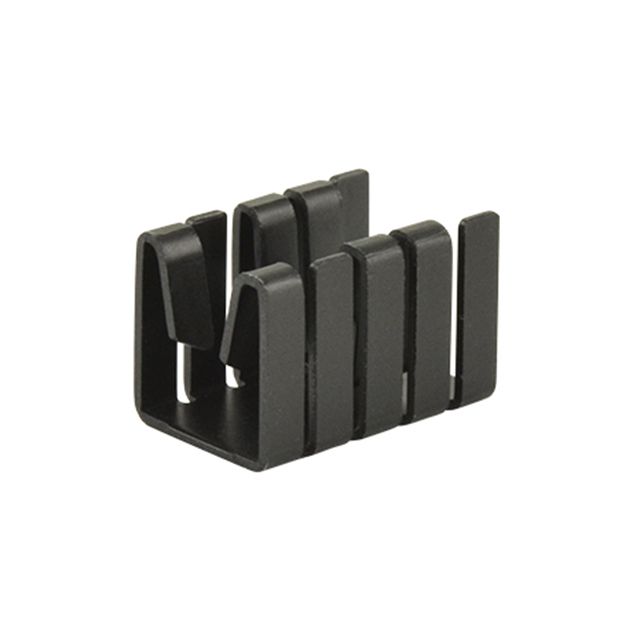

HSS-B20-NP-10 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level
TO-220
-
Rectangular, Fins
0.748" (19.00mm)
0.504" (12.80mm)
-
0.500" (12.70mm)
2.9W @ 75°C
7.24°C/W @ 200 LFM
25.92°C/W
Aluminum
Black Anodized
HSS-B20-NP-03 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Top Mount
TO-220
-
Rectangular, Fins
0.279" (7.10mm)
0.787" (20.00mm)
-
1.000" (25.40mm)
3.6W @ 75°C
7.45°C/W @ 200 LFM
20.83°C/W
Aluminum
Black Anodized
HSS-B20-NP-01 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level
TO-220
-
Rectangular, Fins
0.787" (20.00mm)
0.775" (19.68mm)
-
0.303" (7.70mm)
4.1W @ 75°C
7.05°C/W @ 200 LFM
18.29°C/W
Aluminum
Black Anodized
HSS29-302513P SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Box
Active
Board Level, Vertical
TO-220
Bolt On and PC Pin
Rectangular, Fins
1.000" (25.40mm)
1.181" (30.00mm)
-
0.500" (12.70mm)
4.25W @ 75°C
8.10°C/W @ 200 LFM
17.67°C/W
Aluminum Alloy
Black Anodized
HSS-B20-NP-11 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level
TO-220
Bolt On
Rectangular, Fins
0.700" (17.78mm)
0.779" (19.80mm)
-
0.850" (21.60mm)
4.4W @ 75°C
6.86°C/W @ 200 LFM
17.05°C/W
Aluminum
Black Anodized
HSS-B20-NP-12 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level
TO-220
Bolt On
Rectangular, Fins
1.450" (36.83mm)
0.700" (17.80mm)
-
0.850" (21.60mm)
6.8W @ 75°C
3.47°C/W @ 200 LFM
14.33°C/W
Aluminum
Black Anodized
HSS05-C20-SMT-TR SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Active
Board Level, Vertical
TO-220
-
Rectangular
1.031" (26.20mm)
0.500" (12.70mm)
-
0.390" (9.91mm)
2.3W @ 75°C
14.00°C/W @ 200 LFM
32.69°C/W
Copper Alloy
Tin
HSS27-B20-P43 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level, Vertical
TO-218, TO-220
Bolt On and PC Pin
Rectangular, Fins
1.193" (30.30mm)
0.874" (22.20mm)
-
0.211" (5.35mm)
3.03W @ 75°C
13.20°C/W @ 200 LFM
24.79°C/W
Aluminum Alloy
Black Anodized
HSS06-C20-P32 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Box
Active
Board Level, Vertical
TO-220
PC Pin
Rectangular
1.101" (27.96mm)
0.866" (22.00mm)
-
0.375" (9.52mm)
3.0W @ 75°C
10.60°C/W @ 200 LFM
25.35°C/W
Copper Alloy
Tin
HSS-B20-NP-15 SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSS
Bag
Active
Board Level
TO-220
-
Rectangular, Fins
0.625" (15.90mm)
0.866" (22.00mm)
-
0.440" (11.18mm)
4.1W @ 75°C
6.50°C/W @ 200 LFM
18.34°C/W
Aluminum
Black Anodized
HSE11-B20-NP SAME SKY (FORMERLY CUI DEVICES)
SAME SKY (FORMERLY CUI DEVICES)
-
HSE
Bag
Active
Top Mount
TO-218, TO-220
Bolt On
Rectangular
0.984" (25.00mm)
0.472" (12.00mm)
-
0.177" (4.50mm)
1.93W @ 75°C
21.40°C/W @ 200 LFM
38.90°C/W
Aluminum Alloy
Black Anodized
