80 Results

Manufacturer1

Product Series Line0

IC Encapsulation Type0

Availability Status0

Device Type Classification0

Thermal Package Design0

Mounting Technique0

Physical Shape Form0

Linear Length Dimension0

Horizontal Width Dimension0

Circular Measurement0

Heat Sink Fin Elevation0

Power at Temp Increase0

Thermal Resistance with Fan0

Passive Cooling Resistance0

Construction Material Type0

Surface Material Treatment0

Manufacturer

OHMITE

Part Number
Manufacturer
Price
Product Series Line
IC Encapsulation Type
Availability Status
Device Type Classification
Thermal Package Design
Mounting Technique
Physical Shape Form
Linear Length Dimension
Horizontal Width Dimension
Circular Measurement
Heat Sink Fin Elevation
Power at Temp Increase
Thermal Resistance with Fan
Passive Cooling Resistance
Construction Material Type
Surface Material Treatment

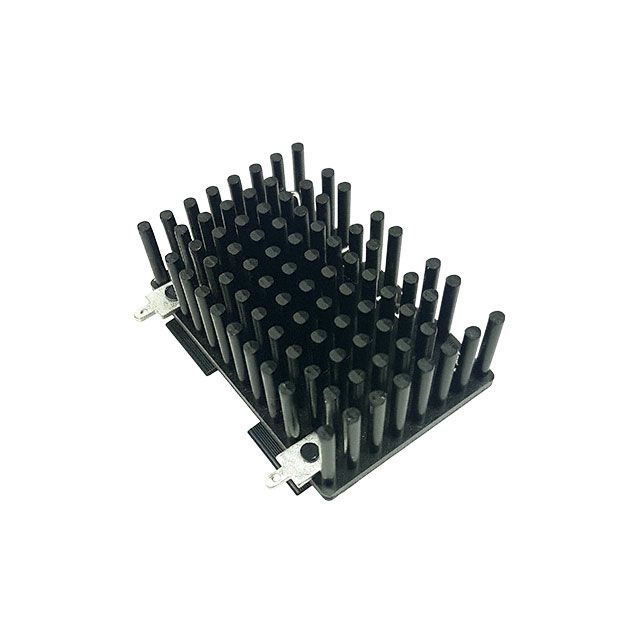

PA-T22-38E OHMITE
OHMITE
-
P
Box
Active
Board Level, Vertical
TO-220, TO-247, TO-264
2 Clips and PC Pin
Rectangular, Pin Fins
2.170" (55.12mm)
1.240" (31.50mm)
-
1.520" (38.61mm)
-
-
3.13°C/W
Aluminum
Black Anodized
CR301-50VE OHMITE
OHMITE
-
CR
Box
Active
Board Level, Vertical
TO-301
2 Clips and PC Pin
Rectangular, Fins
1.969" (50.00mm)
2.362" (60.00mm)
-
-
-
-
5.70°C/W
Aluminum Alloy
Degreased
MV-102-55E OHMITE
OHMITE
-
M
Box
Obsolete
Top Mount
TO-247, TO-264
Clip and PC Pin
Rectangular, Fins
2.170" (55.12mm)
1.350" (34.30mm)
-
1.520" (38.61mm)
16.0W @ 43°C
2.00°C/W @ 400 LFM
-
Aluminum
Degreased
C247-075-3AE OHMITE
OHMITE
-
C
Box
Obsolete
Board Level, Vertical
TO-247
3 Clips and PC Pin
Rectangular, Fins
2.953" (75.00mm)
1.500" (38.10mm)
-
0.710" (18.03mm)
2.5W @ 20°C
2.00°C/W @ 300 LFM
-
Aluminum
Black Anodized
CR201-50VE OHMITE
OHMITE
₹450.16
CR
Box
Active
Board Level, Vertical
TO-201
3 Clips and PC Pin
Rectangular, Fins
1.969" (50.00mm)
2.953" (75.00mm)
-
-
-
-
3.30°C/W
Aluminum Alloy
Degreased
CR201-75AE OHMITE
OHMITE
₹629.94
CR
Box
Active
Board Level, Vertical
TO-201
3 Clips and PC Pin
Rectangular, Fins
2.953" (75.00mm)
2.953" (75.00mm)
-
-
-
-
2.60°C/W
Aluminum Alloy
Black Anodized
C264-085-3VE OHMITE
OHMITE
-
C
Box
Obsolete
Board Level, Vertical
TO-264
3 Clips and PC Pin
Rectangular, Fins
3.346" (85.00mm)
1.500" (38.10mm)
-
0.710" (18.03mm)
-
-
-
Aluminum
Degreased
MV-301-27E OHMITE
OHMITE
-
M
Box
Obsolete
Top Mount
TO-247, TO-264
Clip and PC Pin
Rectangular, Fins
1.060" (26.92mm)
2.200" (55.88mm)
-
1.712" (43.48mm)
-
-
5.50°C/W
Aluminum
Unfinished
PA-T21-38E OHMITE
OHMITE
-
P
Box
Active
Board Level, Vertical
TO-220, TO-247, TO-264
Clip and PC Pin
Rectangular, Pin Fins
2.170" (55.12mm)
1.240" (31.50mm)
-
1.520" (38.61mm)
-
-
3.13°C/W
Aluminum
Black Anodized
MA-101-27E OHMITE
OHMITE
-
M
Box
Obsolete
Top Mount
TO-247, TO-264
Clip and PC Pin
Rectangular, Fins
1.060" (26.92mm)
1.350" (34.30mm)
-
1.520" (38.61mm)
-
-
8.00°C/W
Aluminum
Black Anodized
CR201-25AE OHMITE
OHMITE
₹246.97
CR
Box
Active
Board Level, Vertical
TO-201
3 Clips and PC Pin
Rectangular, Fins
0.984" (25.00mm)
2.953" (75.00mm)
-
-
-
-
4.70°C/W
Aluminum Alloy
Black Anodized
C220-050-2VE OHMITE
OHMITE
-
C
Box
Active
Board Level, Vertical
TO-220
2 Clips and PC Pin
Rectangular, Fins
1.969" (50.00mm)
1.500" (38.10mm)
-
0.710" (18.03mm)
-
-
-
Aluminum
Degreased

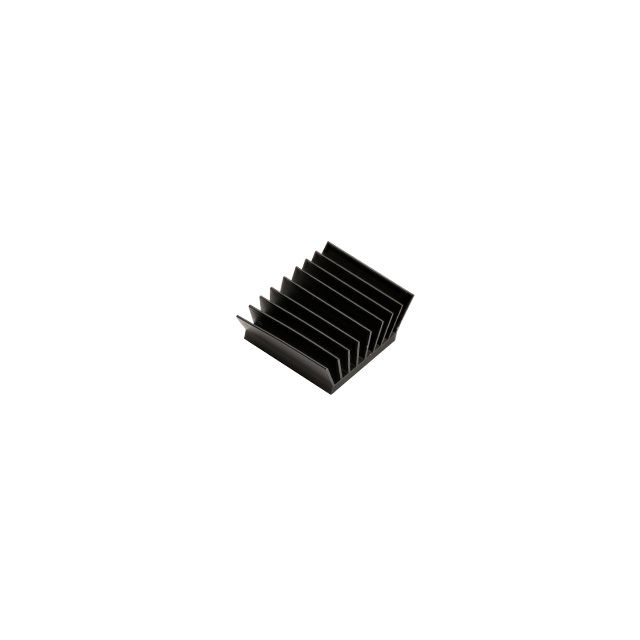

BGAH150-075E OHMITE
OHMITE
-
BG
Box
Obsolete
Top Mount
BGA, CPU, GPU
Thermal Tape, Adhesive (Included)
Square, Angled Fins
0.591" (15.00mm)
0.591" (15.00mm)
-
0.295" (7.50mm)
-
-
18.00°C/W
Aluminum Alloy
Black Anodized
CR401-75AE OHMITE
OHMITE
-
CR
Box
Obsolete
Board Level, Vertical
TO-401
2 Clips and PC Pin
Rectangular, Fins
2.953" (75.00mm)
2.953" (75.00mm)
-
-
-
-
3.00°C/W
Aluminum Alloy
Black Anodized
C264-085-3AE OHMITE
OHMITE
-
C
Box
Obsolete
Board Level, Vertical
TO-264
3 Clips and PC Pin
Rectangular, Fins
3.346" (85.00mm)
1.500" (38.10mm)
-
0.710" (18.03mm)
-
-
-
Aluminum
Black Anodized
MA-301-27E OHMITE
OHMITE
-
M
Box
Obsolete
Top Mount
TO-247, TO-264
Clip and PC Pin
Rectangular, Fins
1.060" (26.92mm)
2.200" (55.88mm)
-
1.712" (43.48mm)
-
-
4.60°C/W
Aluminum
Black Anodized
C60-075-AE OHMITE
OHMITE
₹811.68
C60
Box
Active
Board Level, Vertical
TO-220, TO-247, TO-264
Clip, Solder Foot
Rectangular, Fins
2.950" (74.93mm)
2.480" (62.99mm)
-
1.610" (40.89mm)
-
-
-
Aluminum Alloy
Black Anodized
PV-T21-38E OHMITE
OHMITE
-
P
Box
Active
Board Level, Vertical
TO-220, TO-247, TO-264
Clip and PC Pin
Rectangular, Pin Fins
2.170" (55.12mm)
1.240" (31.50mm)
-
1.520" (38.61mm)
-
-
3.89°C/W
Aluminum
Degreased
CR401-75VE OHMITE
OHMITE
-
CR
Box
Obsolete
Board Level, Vertical
TO-401
2 Clips and PC Pin
Rectangular, Fins
2.953" (75.00mm)
2.953" (75.00mm)
-
-
-
-
3.00°C/W
Aluminum Alloy
Degreased
C247-075-3VE OHMITE
OHMITE
-
C
Box
Obsolete
Board Level, Vertical
TO-247
3 Clips and PC Pin
Rectangular, Fins
2.953" (75.00mm)
1.500" (38.10mm)
-
0.710" (18.03mm)
2.5W @ 20°C
2.00°C/W @ 300 LFM
-
Aluminum
Degreased
