254 Results

Manufacturer1

Product Series Line0

IC Encapsulation Type0

Availability Status0

Device Type Classification0

Thermal Package Design0

Mounting Technique0

Physical Shape Form0

Linear Length Dimension0

Horizontal Width Dimension0

Circular Measurement0

Heat Sink Fin Elevation0

Power at Temp Increase0

Thermal Resistance with Fan0

Passive Cooling Resistance0

Construction Material Type0

Surface Material Treatment0

Manufacturer

BOYD LACONIA, LLC

Part Number
Manufacturer
Price
Product Series Line
IC Encapsulation Type
Availability Status
Device Type Classification
Thermal Package Design
Mounting Technique
Physical Shape Form
Linear Length Dimension
Horizontal Width Dimension
Circular Measurement
Heat Sink Fin Elevation
Power at Temp Increase
Thermal Resistance with Fan
Passive Cooling Resistance
Construction Material Type
Surface Material Treatment

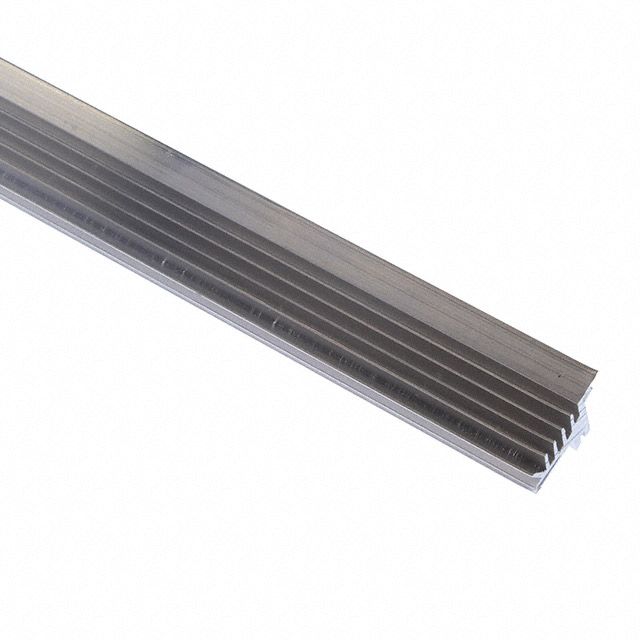

652452F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Top Mount, Extrusion
-
Adhesive
Rectangular, Pin Fins
48.000" (1219.20mm)
1.260" (32.00mm)
-
1.650" (41.91mm)
-
2.00°C/W @ 300 LFM
-
Aluminum
-

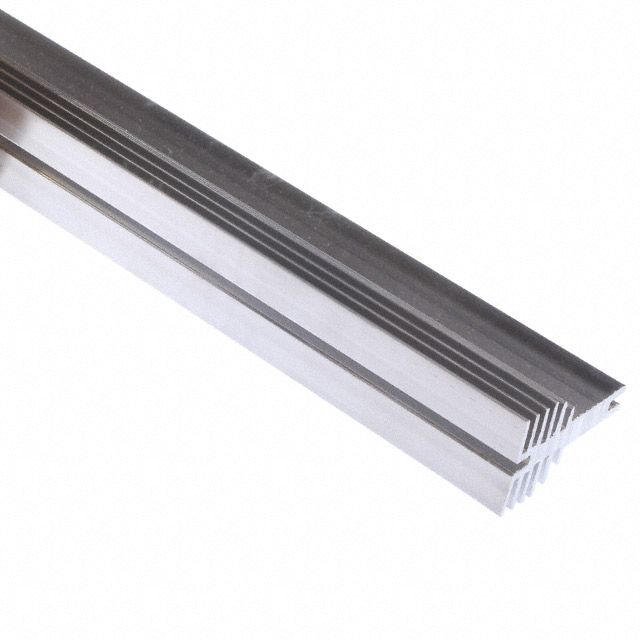

782202F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Board Level, Vertical, Extrusion
-
PC Pin
Rectangular, Pin Fins
49.500" (1257.30mm)
1.181" (30.00mm)
-
2.362" (60.00mm)
-
1.50°C/W @ 400 LFM
-
Aluminum
-
663652F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Top Mount, Extrusion
-
Adhesive
Rectangular, Pin Fins
48.000" (1219.20mm)
1.500" (38.10mm)
-
0.630" (16.00mm)
-
2.00°C/W @ 400 LFM
-
Aluminum
-
780202F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Board Level, Vertical, Extrusion
-
Clip and PC Pin
Rectangular, Pin Fins
49.500" (1257.30mm)
1.181" (30.00mm)
-
1.850" (47.00mm)
-
-
-
Aluminum
-
688552F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Top Mount, Extrusion
-
Adhesive
Rectangular
48.000" (1219.20mm)
7.200" (182.88mm)
-
0.480" (12.19mm)
-
0.50°C/W @ 500 LFM
-
Aluminum
-
631352F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Top Mount, Extrusion
-
Adhesive
Rectangular, Pin Fins
48.000" (1219.20mm)
2.125" (53.98mm)
-
1.750" (44.45mm)
-
1.50°C/W @ 200 LFM
-
Aluminum
-
622852F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Top Mount, Extrusion
-
Adhesive
Rectangular, Fins
48.000" (1219.20mm)
6.750" (171.45mm)
-
1.630" (41.40mm)
-
0.65°C/W @ 200 LFM
-
Aluminum
-
2227B BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Bulk
Active
Board Level
TO-5
Press Fit
Cylindrical
-
-
0.315" (8.00mm) ID, 1.250" (31.75mm) OD
0.400" (10.16mm)
1.8W @ 50°C
14.00°C/W @ 200 LFM
21.00°C/W
Aluminum
Black Anodized
610852F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Top Mount, Extrusion
-
Adhesive
Rectangular, Pin Fins
48.000" (1219.20mm)
5.380" (136.65mm)
-
1.312" (33.32mm)
-
0.50°C/W @ 500 LFM
-
Aluminum Alloy
Unfinished

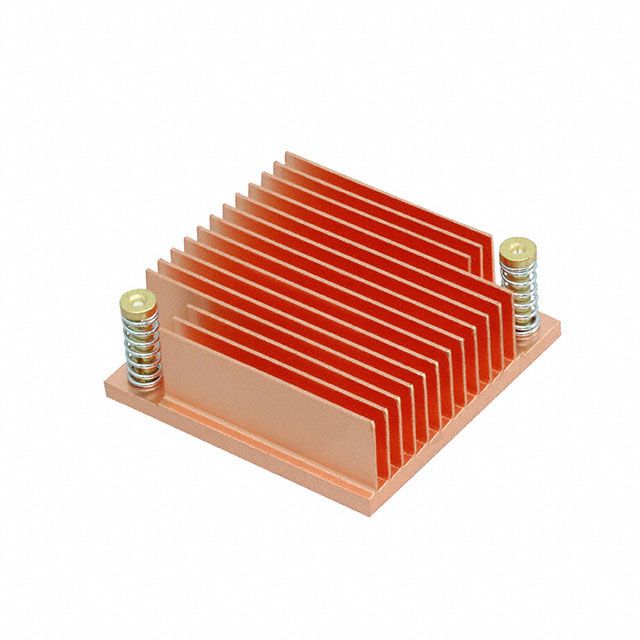

342941 BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Tray
Active
Top Mount, Skived
BGA
Push Pin
Square, Fins
1.594" (40.50mm)
1.575" (40.00mm)
-
0.531" (13.50mm)
-
2.50°C/W @ 200 LFM
13.30°C/W
Copper
AavSHIELD 3C
780802F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Board Level, Vertical, Extrusion
-
PC Pin
Rectangular, Pin Fins
49.500" (1257.30mm)
1.063" (27.00mm)
-
2.362" (60.00mm)
-
-
-
Aluminum
-
783452F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Top Mount, Extrusion
-
-
Rectangular, Pin Fins
49.500" (1257.30mm)
2.677" (68.00mm)
-
1.535" (39.00mm)
-
1.00°C/W @ 400 LFM
-
Aluminum
-
627252F00000 BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Top Mount, Extrusion
-
Adhesive
Rectangular, Fins
55.500" (1409.70mm)
9.750" (247.65mm)
-
2.280" (57.91mm)
-
0.20°C/W @ 700 LFM
-
Aluminum
-
780252F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Board Level, Vertical, Extrusion
-
PC Pin
Rectangular, Pin Fins
49.500" (1257.30mm)
1.535" (39.00mm)
-
1.240" (31.50mm)
-
-
-
Aluminum
-
2286B BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Bulk
Active
Board Level
BGA
Thermal Tape, Adhesive (Not Included)
Square
0.790" (20.07mm)
0.790" (20.07mm)
-
0.155" (3.94mm)
1.0W @ 40°C
20.00°C/W @ 200 LFM
-
Aluminum
Black Anodized
1130BG BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Bulk
Active
Board Level
TO-5
Press Fit
Cylindrical
0.400" (10.16mm)
0.375" (9.50mm)
0.450" (11.43mm)
0.450" (11.43mm)
-
-
15°C/W
Aluminum
Black Anodized
569000B00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Bulk
Active
Board Level
LED
Thermal Tape, Adhesive (Not Included)
Square
1.830" (46.48mm)
1.830" (46.48mm)
-
1.310" (33.27mm)
12.0W @ 60°C
1.50°C/W @ 500 LFM
5.50°C/W
Aluminum
Black Anodized
783502F00000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Box
Active
Board Level, Vertical, Extrusion
-
PC Pin
Rectangular, Pin Fins
49.500" (1257.30mm)
1.950" (49.53mm)
-
3.366" (85.50mm)
-
-
-
Aluminum
-

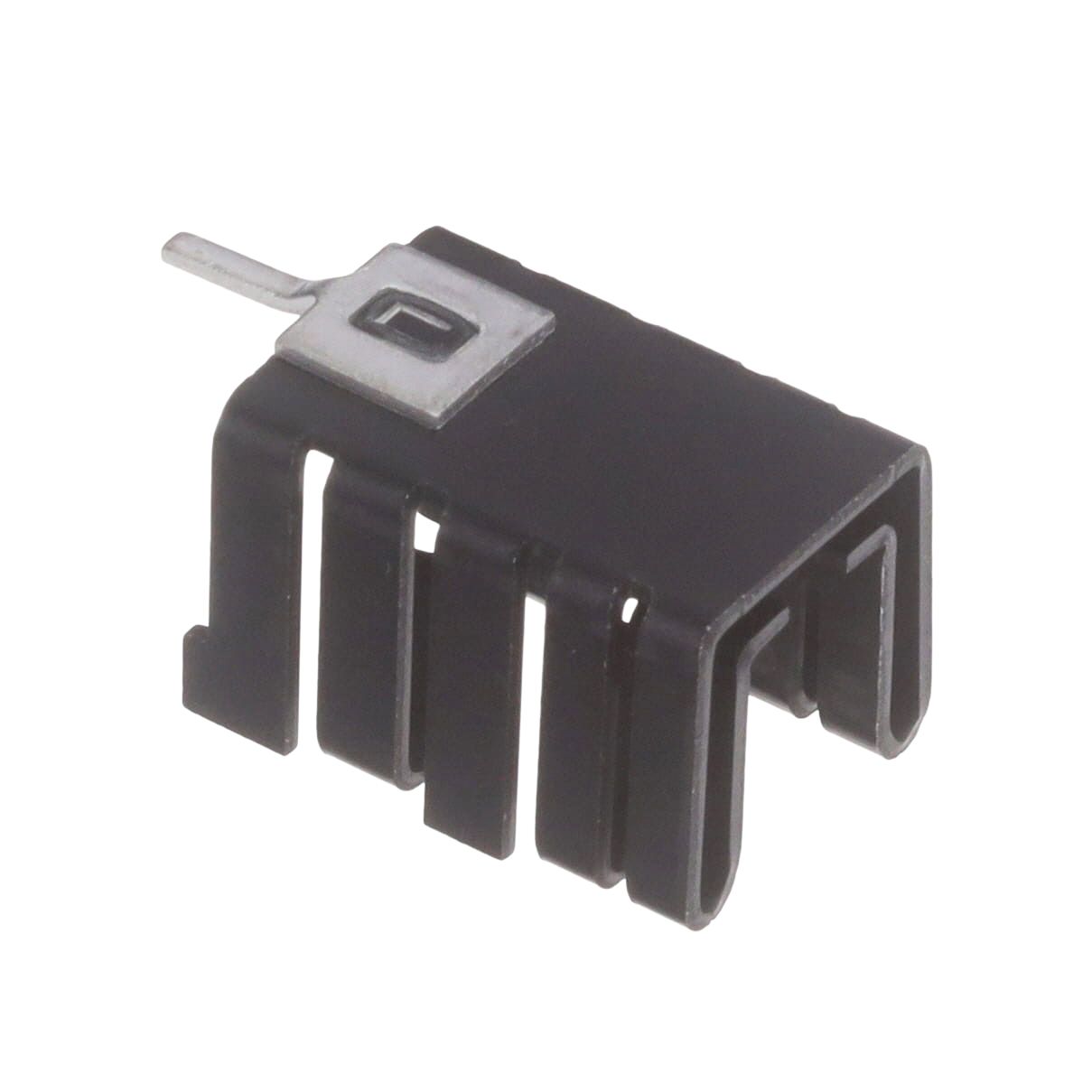

591302B04000G BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Bulk
Active
Board Level, Vertical
TO-220, TO-262
Clip and PC Pin
Rectangular, Fins
0.750" (19.05mm)
0.500" (12.70mm)
-
0.500" (12.70mm)
1.0W @ 30°C
7.00°C/W @ 400 LFM
26.80°C/W
Aluminum
Black Anodized
342949 BOYD LACONIA, LLC
BOYD LACONIA, LLC
-
-
Tray
Active
Top Mount, Skived
BGA
Push Pin
Square, Fins
3.150" (80.00mm)
3.150" (80.00mm)
-
0.472" (12.00mm)
-
1.20°C/W @ 200 LFM
5.10°C/W
Copper
AavSHIELD 3C
...
