Manufacturer

BOYD CORPORATION

Part Number	Manufacturer	Price	Product Series Line	IC Encapsulation Type	Availability Status	Device Type Classification	Thermal Package Design	Mounting Technique	Physical Shape Form	Linear Length Dimension	Horizontal Width Dimension	Circular Measurement	Heat Sink Fin Elevation	Power at Temp Increase	Thermal Resistance with Fan	Passive Cooling Resistance	Construction Material Type	Surface Material Treatment
568003B00000G BOYD CORPORATION	BOYD CORPORATION	₹1,587.40	-	Bulk	Obsolete	Board Level	TO-3	Bolt On	Square	1.810" (45.97mm)	1.810" (45.97mm)	-	0.500" (12.70mm)	5.0W @ 50°C	1.50°C/W @ 400 LFM	8.00°C/W	Aluminum	Black Anodized
374724B60024G BOYD CORPORATION	BOYD CORPORATION	₹147.74	-	Bulk	Active	Top Mount	BGA	Solder Anchor	Square, Pin Fins	1.378" (35.00mm)	1.378" (35.00mm)	-	0.709" (18.00mm)	3.0W @ 50°C	5.20°C/W @ 200 LFM	15.30°C/W	Aluminum	Black Anodized
342946 BOYD CORPORATION	BOYD CORPORATION	₹16,020.00	-	Tray	Active	Top Mount, Skived	BGA	Push Pin	Square, Fins	2.362" (60.00mm)	2.362" (60.00mm)	-	0.866" (22.00mm)	-	0.80°C/W @ 300 LFM	7.20°C/W	Copper	AavSHIELD 3C
566010B02800G BOYD CORPORATION	BOYD CORPORATION	₹734.50	-	Bulk	Active	Board Level, Vertical	Multiwatt, SIP	Clip and Board Locks	Rectangular, Fins	1.220" (30.99mm)	1.000" (25.40mm)	-	0.500" (12.70mm)	2.0W @ 30°C	5.00°C/W @ 200 LFM	11.50°C/W	Aluminum	Black Anodized
530122B00162G BOYD CORPORATION	BOYD CORPORATION	₹568.26	-	Bulk	Active	Board Level, Vertical	TO-220 (Dual)	Clip and Board Mounts	Square, Angled Fins	1.750" (44.45mm)	0.490" (12.44mm)	-	1.750" (44.45mm)	4.0W @ 30°C	1.50°C/W @ 400 LFM	6.20°C/W	Aluminum	Black Anodized

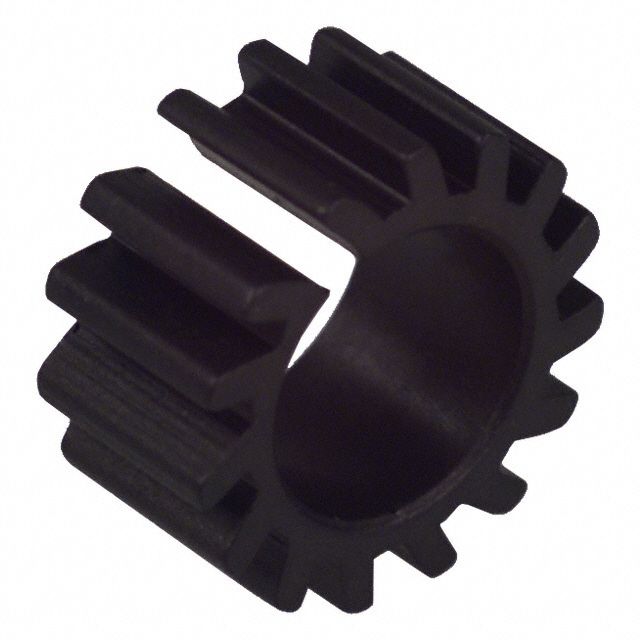

320205B00000G BOYD CORPORATION	BOYD CORPORATION	₹253.65	-	Bag	Obsolete	Board Level	TO-5	Press Fit	Cylindrical	-	-	0.305" (7.75mm) ID, 0.500" (12.70mm) OD	0.250" (6.35mm)	0.6W @ 40°C	35.00°C/W @ 200 LFM	63.00°C/W	Aluminum	Black Anodized
342943 BOYD CORPORATION	BOYD CORPORATION	₹5,190.48	-	Tray	Active	Top Mount, Skived	BGA	Push Pin	Square, Fins	1.969" (50.00mm)	1.969" (50.00mm)	-	0.551" (14.00mm)	-	2.10°C/W @ 200 LFM	8.90°C/W	Copper	AavSHIELD 3C
375024B60024G BOYD CORPORATION	BOYD CORPORATION	₹343.03	-	Bulk	Active	Board Level	BGA	Solder Anchor	Square, Pin Fins	1.575" (40.00mm)	1.575" (40.01mm)	-	0.709" (18.00mm)	2.0W @ 30°C	4.30°C/W @ 200 LFM	12.00°C/W	Aluminum	Black Anodized
529902B02500G BOYD CORPORATION	BOYD CORPORATION	₹267.89	-	Bulk	Active	Board Level, Vertical	TO-220	Bolt On and PC Pin	Rectangular, Fins	2.000" (50.80mm)	1.650" (41.91mm)	-	1.000" (25.40mm)	6.0W @ 30°C	1.50°C/W @ 500 LFM	4.50°C/W	Aluminum	Black Anodized
533702B02552G BOYD CORPORATION	BOYD CORPORATION	₹970.45	-	Bulk	Active	Board Level, Vertical	TO-220	Clip and PC Pin	Rectangular, Fins	1.000" (25.40mm)	1.650" (41.91mm)	-	1.000" (25.40mm)	12.0W @ 70°C	4.00°C/W @ 200 LFM	5.70°C/W	Aluminum	Black Anodized
534302B03553G BOYD CORPORATION	BOYD CORPORATION	₹1,252.23	-	Bulk	Active	Board Level, Vertical	TO-220	Clip and PC Pin	Rectangular, Fins	2.000" (50.80mm)	1.380" (35.05mm)	-	0.480" (12.19mm)	6.0W @ 60°C	5.00°C/W @ 200 LFM	10.40°C/W	Aluminum	Black Anodized
513101B02500G BOYD CORPORATION	BOYD CORPORATION	₹766.29	-	Bulk	Active	Board Level, Vertical	TO-218, TO-247	Bolt On and PC Pin	Rectangular, Fins	1.500" (38.10mm)	1.375" (34.93mm)	-	0.500" (12.70mm)	8.0W @ 80°C	3.00°C/W @ 500 LFM	11.00°C/W	Aluminum	Black Anodized
507222B05300G BOYD CORPORATION	BOYD CORPORATION	₹182.45	Hat Section 5070	Bulk	Active	Board Level	TO-220	Bolt On	Rectangular, Fins	0.375" (9.53mm)	1.750" (44.45mm)	-	1.470" (37.34mm)	-	-	-	Aluminum	Black Anodized
574004B00000G BOYD CORPORATION	BOYD CORPORATION	₹183.34	-	Bag	Active	Board Level	TO-202	Clip	Rectangular	0.800" (20.32mm)	0.577" (14.66mm)	-	0.250" (6.35mm)	1.0W @ 30°C	4.00°C/W @ 600 LFM	28.00°C/W	Aluminum	Black Anodized
568103B00000G BOYD CORPORATION	BOYD CORPORATION	₹2,144.01	-	Bulk	Obsolete	Board Level	TO-3	Bolt On	Square	1.810" (45.97mm)	1.810" (45.97mm)	-	0.750" (19.05mm)	5.0W @ 40°C	1.00°C/W @ 500 LFM	6.70°C/W	Aluminum	Black Anodized
574902B04300G BOYD CORPORATION	BOYD CORPORATION	₹578.14	-	Bulk	Active	Board Level, Vertical	TO-220	Clip and PC Pin	Rectangular, Fins	1.375" (34.93mm)	0.860" (21.84mm)	-	0.395" (10.03mm)	2.5W @ 40°C	6.00°C/W @ 400 LFM	16.00°C/W	Aluminum	Black Anodized
375124B60024G BOYD CORPORATION	BOYD CORPORATION	₹381.45	-	Bulk	Active	Board Level	BGA	Solder Anchor	Square, Pin Fins	1.575" (40.00mm)	1.575" (40.01mm)	-	0.984" (25.00mm)	8.0W @ 80°C	3.80°C/W @ 200 LFM	10.30°C/W	Aluminum	Black Anodized
342940 BOYD CORPORATION	BOYD CORPORATION	₹3,204.00	-	Tray	Active	Top Mount, Skived	BGA	Push Pin	Rectangular, Fins	1.480" (37.59mm)	1.516" (38.50mm)	-	0.551" (14.00mm)	-	2.60°C/W @ 200 LFM	15.90°C/W	Copper	AavSHIELD 3C
576802B03700G BOYD CORPORATION	BOYD CORPORATION	₹46.63	-	Bulk	Active	Board Level	TO-220, TO-262	Clip and PC Pin	Rectangular, Fins	0.748" (19.00mm)	0.500" (12.70mm)	-	0.500" (12.70mm)	1.0W @ 30°C	7.00°C/W @ 400 LFM	27.30°C/W	Aluminum	Black Anodized
592902B03400G BOYD CORPORATION	BOYD CORPORATION	₹812.57	Channel 5900	Bulk	Active	Board Level, Vertical	TO-220	Bolt On and PC Pin	Rectangular, Fins	0.980" (24.89mm)	0.942" (23.93mm)	-	0.500" (12.70mm)	1.0W @ 20°C	6.00°C/W @ 400 LFM	17.90°C/W	Aluminum	Black Anodized
