18 Results

Manufacturer

EPCOS

Part Number	Manufacturer	Price	Product Series Line	IC Encapsulation Type	Availability Status	Inductor Core Material	Vendor Package Type	Construction Material Type	Circular Measurement	Inductance per Turn Factor	Accuracy Tolerance Percentage	Spacing Gap Measurement	Effective Mu Permeability	Starting Permeability Mu	Magnetic Core Density Factor	Magnetic Effective Length	Magnetic Effective Area	Min Core Cross-Section Area	Magnetic Volume Efficiency	Surface Finish Type	Vertical Dimension	Linear Length Dimension	Horizontal Width Dimension

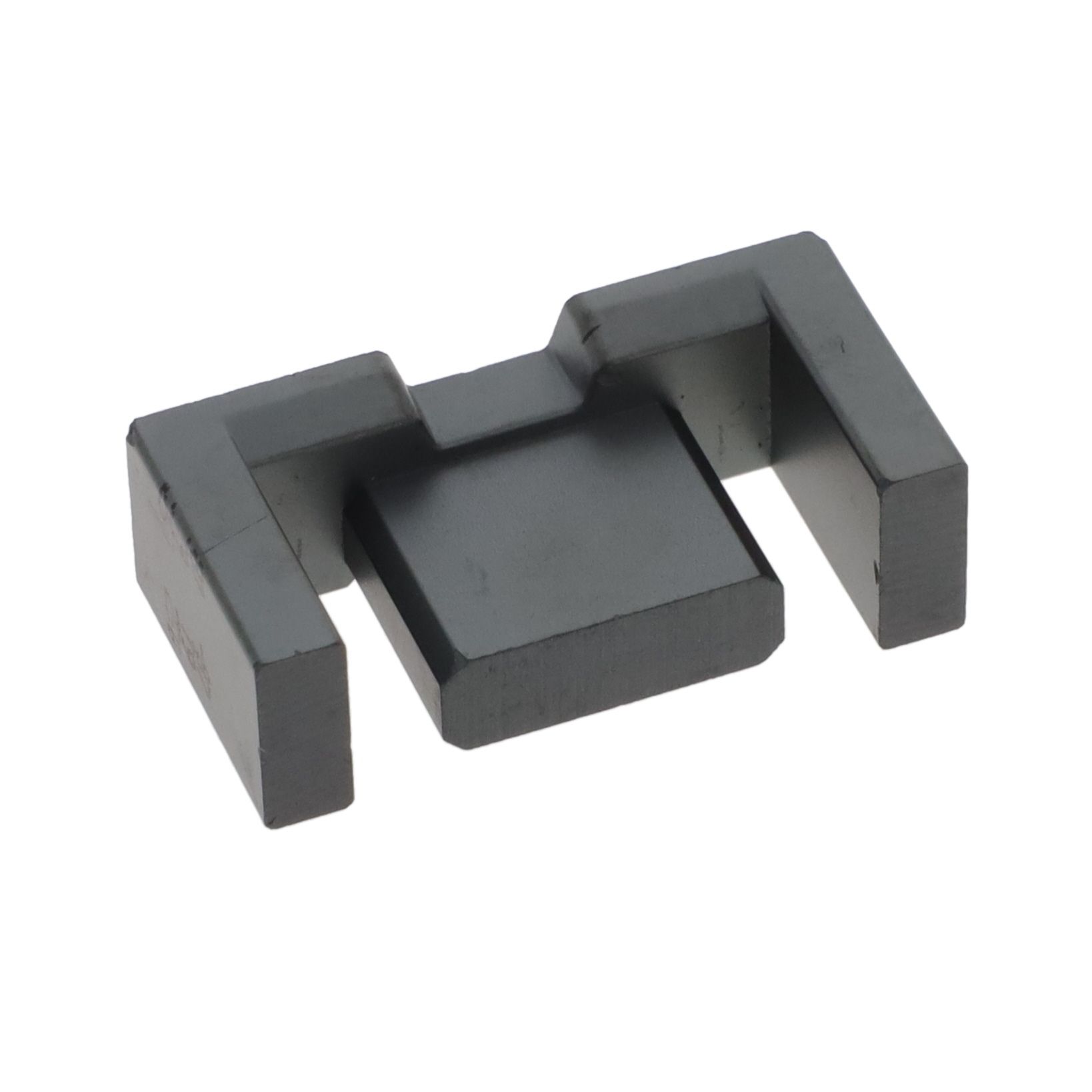

B66421G0000X187 EPCOS	EPCOS	₹51.25	EFD25/13/9	Box	Active	EFD	EFD 25 x 13 x 9	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.492" (12.50mm)	0.984" (25.00mm)	0.358" (9.10mm)

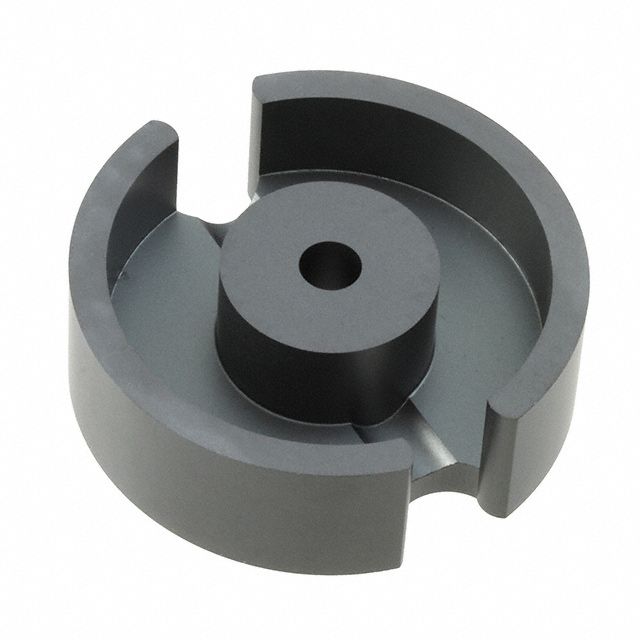

B65611D0000R048 EPCOS	EPCOS	₹329.92	P36/22	Tray	Active	P (Pot Core)	P 36 x 22	N48	1.417" (36.00mm)	7.6 µH	-20%, +30%	Ungapped	1560.0	-	0.26	52.0	202.0	-	10500.0	Uncoated	0.433" (11.00mm)	-	-

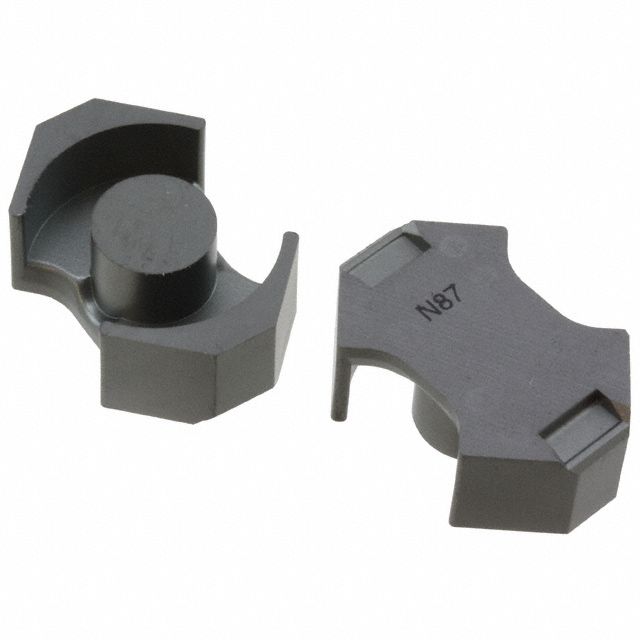

B65813J1600K041 EPCOS	EPCOS	₹72.62	RM10	Box	Active	RM	RM 10	N41	-	1.6 µH	±10%	Gapped	572.0	2800	0.45	44.0	98.0	90.0	4310.0	Uncoated	0.368" (9.35mm)	1.122" (28.50mm)	0.531" (13.50mm)
B65887E1000J041 EPCOS	EPCOS	₹585.51	RM14	Box	Active	RM	RM 14	N41	-	1 µH	±5%	Gapped	279.0	2800	0.35	70.0	200.0	170.0	14000.0	Uncoated	0.594" (15.10mm)	1.661" (42.20mm)	0.748" (19.00mm)
B65813J0250A041 EPCOS	EPCOS	₹198.00	RM10	Box	Active	RM	RM 10	N41	-	250 nH	±3%	Gapped	89.0	2800	0.45	44.0	98.0	90.0	4310.0	Uncoated	0.368" (9.35mm)	1.122" (28.50mm)	0.531" (13.50mm)
B65811J0000R041 EPCOS	EPCOS	₹142.68	RM8	Box	Active	RM	RM 8	N41	-	4.1 µH	-20%, +30%	Ungapped	1940.0	2800	0.59	38.0	64.0	55.0	2430.0	Uncoated	0.324" (8.25mm)	0.913" (23.20mm)	0.433" (11.00mm)
B65651D0000R048 EPCOS	EPCOS	₹178.44	P18/11	Box	Active	P (Pot Core)	P 18 x 11	N48	0.724" (18.40mm)	2.8 µH	-20%, +30%	Ungapped	1340.0	-	0.6	25.9	43.0	-	1114.0	Uncoated	0.209" (5.30mm)	-	-
B65943A0000X022 EPCOS	EPCOS	₹655.40	PS47/14.9	Box	Active	PS	PS 47 x 14.9	N22	1.850" (47.00mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.587" (14.90mm)	-	-
B66423U0250K187 EPCOS	EPCOS	₹53.65	EFD30/15/9	Box	Active	EFD	EFD 30 x 15 x 9	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.591" (15.00mm)	1.181" (30.00mm)	0.358" (9.10mm)
B65811J0000R087 EPCOS	EPCOS	₹118.17	RM8	Box	Active	RM	RM 8	N87	-	3.3 µH	-20%, +30%	Ungapped	1560.0	2200	0.59	38.0	64.0	55.0	2430.0	Uncoated	0.324" (8.25mm)	0.913" (23.20mm)	0.433" (11.00mm)

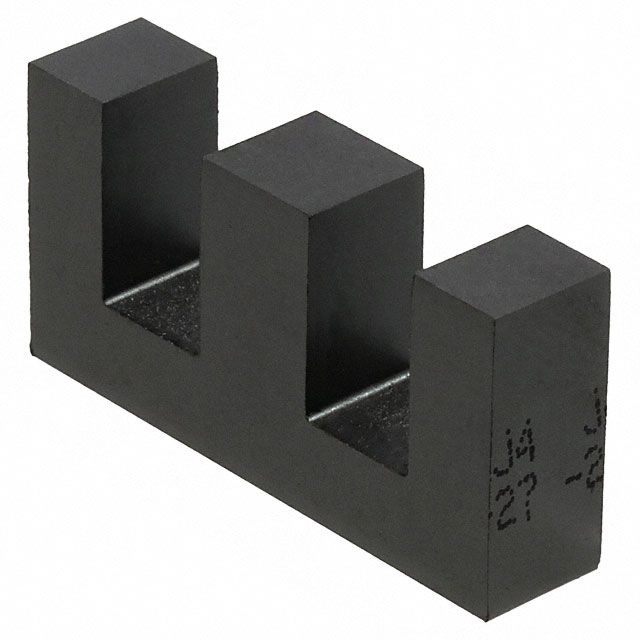

B66319G0000X127 EPCOS	EPCOS	₹32.93	E30/15/7	Box	Active	E	E 30 x 15 x 7	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.598" (15.20mm)	1.181" (30.00mm)	0.287" (7.30mm)
B66285G0000X149 EPCOS	EPCOS	₹114.76	ELP22/6/16	Box	Active	ELP	ELP 22 x 6 x 16	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224" (5.70mm)	0.858" (21.80mm)	0.622" (15.80mm)
B66363G0000X127 EPCOS	EPCOS	₹131.33	ETD39/20/13	Box	Active	ETD	ETD 39 x 20 x 13	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.787" (20.00mm)	1.531" (38.90mm)	0.504" (12.80mm)
B65981A0000R095 EPCOS	EPCOS	₹193.34	PQ50/50- Large Size	Box	Active	PQ	PQ 50 x 50	N95	-	8.2 µH	-20%, +30%	Ungapped	2230.0	-	0.342	113.0	330.0	290.0	37270.0	Uncoated	0.984" (25.00mm)	1.969" (50.00mm)	1.260" (32.00mm)
B66457G0000X187 EPCOS	EPCOS	₹89.76	ELP32/6/20	Box	Active	ELP	ELP 32 x 6 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250" (6.35mm)	1.250" (31.75mm)	0.801" (20.35mm)
B66358G0000X197 EPCOS	EPCOS	₹42.60	ETD29/16/10	Box	Active	ETD	ETD 29 x 16 x 10	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.630" (16.00mm)	1.205" (30.60mm)	0.386" (9.80mm)
B65805J0000R087 EPCOS	EPCOS	₹98.34	RM5	Box	Active	RM	RM 5	N87	-	2 µH	-20%, +30%	Ungapped	1480.0	2200	0.93	22.1	23.8	18.0	526.0	Uncoated	0.207" (5.25mm)	0.575" (14.60mm)	0.268" (6.80mm)
B65935E0000X022 EPCOS	EPCOS	₹33.72	PS9.4/4.6	Box	Active	PS	PS 9 x 3.5	N22	-	-	-	-	-	2300	-	-	-	-	-	Uncoated	0.138" (3.50mm)	-	-
