Attribute
Description
Manufacturer Part Number
T60006L2009W914
Manufacturer
Description

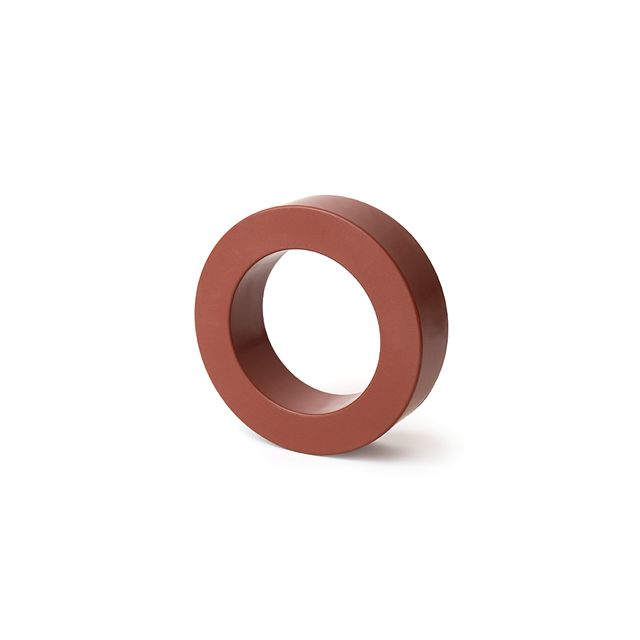

FERRITE CORE TOROID 25.5UH
Manufacturer Lead Time
1 week
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 35.04000 | ₹ 35,040.00 |
| 500 | ₹ 36.88000 | ₹ 18,440.00 |
| 250 | ₹ 42.66000 | ₹ 10,665.00 |
| 100 | ₹ 50.96000 | ₹ 5,096.00 |
| 50 | ₹ 57.82000 | ₹ 2,891.00 |
| 25 | ₹ 65.21000 | ₹ 1,630.25 |
| 10 | ₹ 75.92000 | ₹ 759.20 |
| 1 | ₹ 109.10000 | ₹ 109.10 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Inductor Core Material | Toroid | |
| Vendor Package Type | - | |
| Construction Material Type | - | |
| Circular Measurement | 0.441" (11.20mm) | |
| Inductance per Turn Factor | 25.5 µH | |
| Accuracy Tolerance Percentage | - | |
| Spacing Gap Measurement | Ungapped | |
| Effective Mu Permeability | - | |
| Starting Permeability Mu | - | |
| Magnetic Core Density Factor | - | |
| Magnetic Effective Length | 25.6 | |
| Magnetic Effective Area | 5.94 | |
| Min Core Cross-Section Area | - | |
| Magnetic Volume Efficiency | - | |
| Surface Finish Type | Uncoated | |
| Vertical Dimension | 0.228" (5.80mm) | |
| Linear Length Dimension | - | |
| Horizontal Width Dimension | - |
Description
Utilizes the core type categorized as Toroid. Offers diameter noted at 0.441" (11.20mm). Shows effective area measured at 5.94 mm². Presents an effective length measured at 25.6 mm. Describes the finish as Uncoated. Designed with a Ungapped gap for precise mechanical or electrical alignment. Features a height of 0.228" (5.80mm) for accurate dimensional precision. Inductance factor (Al) defined at 25.5 µH for design evaluations. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle.
