Description

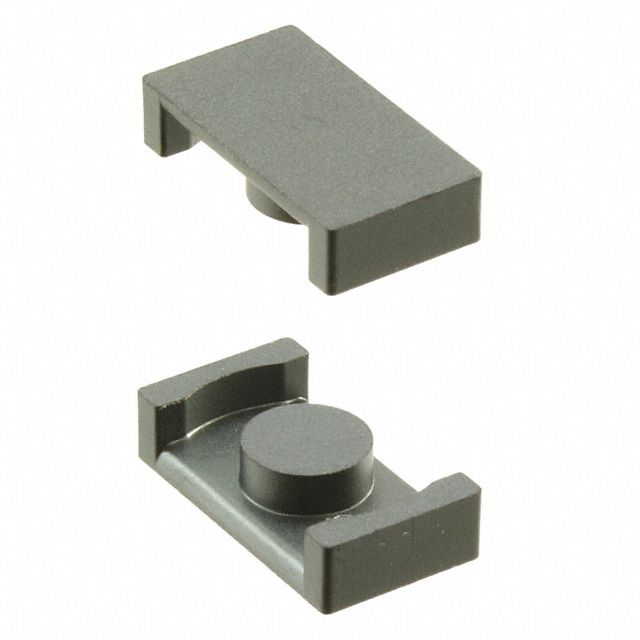

Defines the core density factor represented as 1.1 mm⁻¹ for magnetic calculations. Utilizes the core type categorized as ER. Shows effective area measured at 12.4 mm². Presents an effective length measured at 14.1 mm. Features an effective magnetic volume measured at 174.0 mm³. Represents effective permeability indicated as 1050.0. Describes the finish as Uncoated. Designed with a Ungapped gap for precise mechanical or electrical alignment. Features a height of 0.098" (2.50mm) for accurate dimensional precision. Inductance factor (Al) defined at 1.2 µH for design evaluations. Has an initial permeability of 2200 to ensure excellent magnetic efficiency. Overall length 0.433" (11.00mm) for size indication. Type of construction material N87 for durability and efficiency. Type of housing Box for safeguarding or transporting components. Type of package ER 11 x 5 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component ER11/5. Supplier package type ER 11 x 5 for component selection. Precision tolerance level -20%, +30% in manufacturing processes. Horizontal width measurement 0.236" (6.00mm).
