Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |

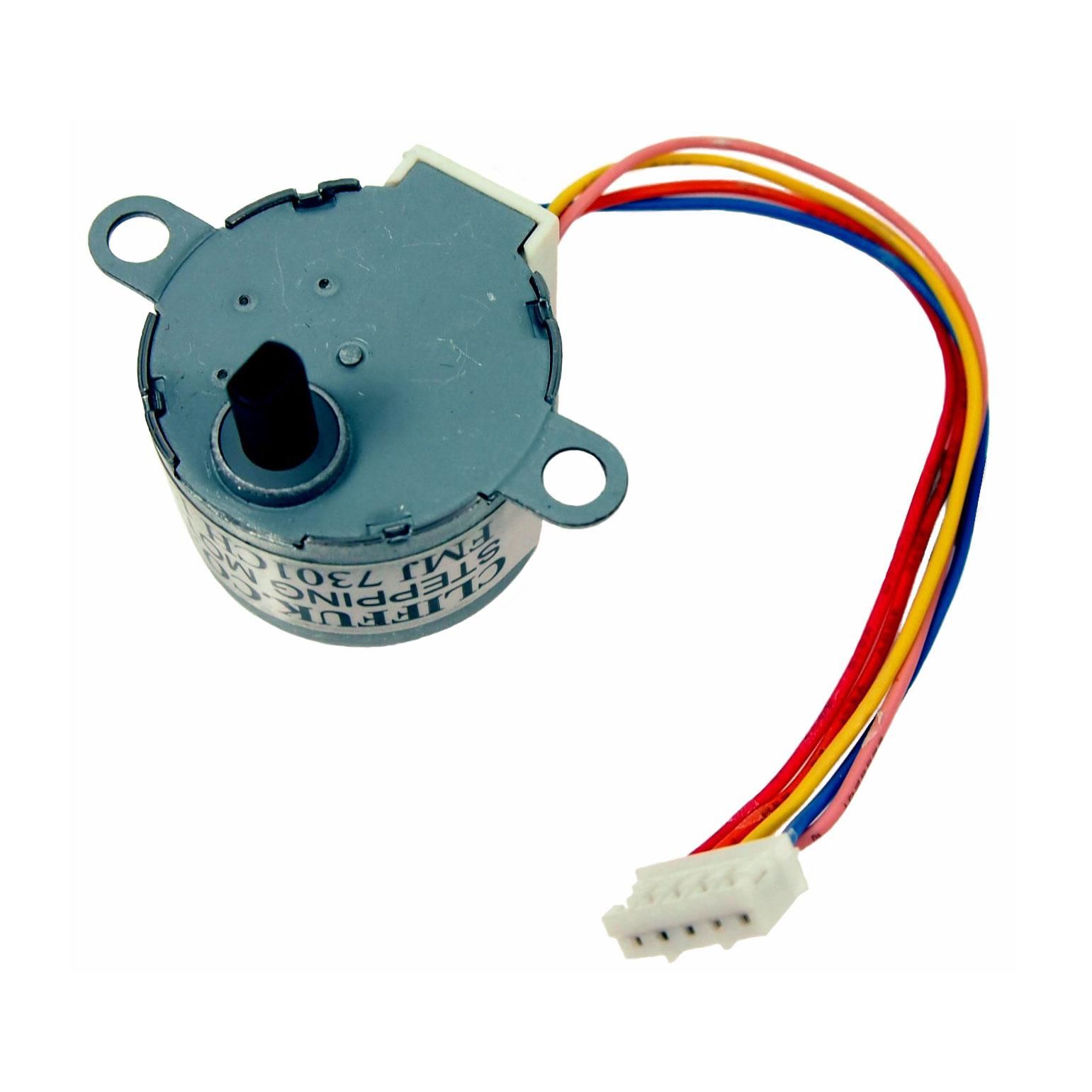

| Device Type Classification | Hybrid Gear Motor | |
| Electromagnetic Coil Design | Unipolar | |
| Rated Operating Voltage | 12VDC | |
| Ampere Capacity Rating | 32 mA | |
| Revolution Step Count | 64.0 | |
| Stepper Motor Step Degrees | 5.625° | |
| Precision Level | - | |
| Holding Torque Rating | 5.28 / 37.27 | |
| Package Size Specs | Round - 1.100" Dia (28.00mm) | |
| Motor Frame Standard | - | |
| Shaft Rod Width | 0.354" (9.00mm) | |
| Shaft Bearing Total Length | 0.236" (6.00mm) | |
| Screw Hole Pitch | 1.654" (42.00mm) | |
| Lead Termination Type | Wire Leads with Connector | |
| Ambient Temp Range | - | |
| Inductor Resistance Value | 280 Ohms | |
| Key Product Highlights | - |
Description
Features a coil resistance measured at 280 Ohms to maintain consistent electromagnetic performance. Designed with a coil type classified as Unipolar for optimal electrical efficiency. Sets the ampere rating to 32 mA. Defines the shaft diameter as 0.354" (9.00mm). Total length of the shaft and bearing 0.236" (6.00mm) for smooth assembly. Spacing between mounting holes 1.654" (42.00mm) for correct alignment. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Details on package size Round - 1.100" Dia (28.00mm) for electrical or mechanical components. Measurement dimensions Round - 1.100" Dia (28.00mm) for component specifications. Step angle 5.625° related to stepper motors. Total steps per revolution 64.0 for rotating mechanisms. Type of termination Wire Leads with Connector for connector or device. Torque retention 5.28 / 37.27 in oz-in/mNm for reliability. Type classification Hybrid Gear Motor for specifications. The operating voltage rating of the device 12VDC.
