Stock:
Distributor: 148
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 22,420.88000 | ₹ 22,420.88 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 22,874.63000 | ₹ 22,874.63 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

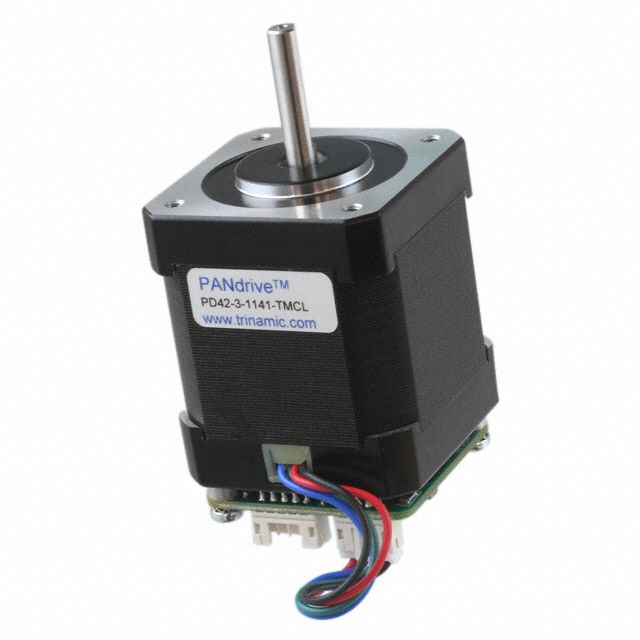

| Product Series Line | PANdrive™ | |
| IC Encapsulation Type | Case | |
| Availability Status | Active | |
| Device Type Classification | Hybrid | |
| Electromagnetic Coil Design | Bipolar | |
| Rated Operating Voltage | 24VDC | |
| Ampere Capacity Rating | 2 A | |
| Revolution Step Count | 200.0 | |
| Stepper Motor Step Degrees | 1.8° | |
| Precision Level | ±5% | |
| Holding Torque Rating | 69.39 / 490 | |
| Package Size Specs | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | |
| Motor Frame Standard | 17 | |
| Shaft Rod Width | 0.197" (5.00mm) | |
| Shaft Bearing Total Length | 0.945" (24.00mm) | |
| Screw Hole Pitch | - | |
| Lead Termination Type | Wire Leads with Connector | |
| Ambient Temp Range | - | |
| Inductor Resistance Value | - | |
| Key Product Highlights | Integrated Controller, Flatted Shaft |
Description
Delivers measurement precision rated at ±5% for reliable results. Designed with a coil type classified as Bipolar for optimal electrical efficiency. Sets the ampere rating to 2 A. Defines the shaft diameter as 0.197" (5.00mm). Equipped with features categorized as Integrated Controller, Flatted Shaft. Total length of the shaft and bearing 0.945" (24.00mm) for smooth assembly. NEMA frame standard 17 for typical motor design. Type of housing Case for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component PANdrive™. Details on package size Square - 1.654" x 1.654" (42.00mm x 42.00mm) for electrical or mechanical components. Measurement dimensions Square - 1.654" x 1.654" (42.00mm x 42.00mm) for component specifications. Step angle 1.8° related to stepper motors. Total steps per revolution 200.0 for rotating mechanisms. Type of termination Wire Leads with Connector for connector or device. Torque retention 69.39 / 490 in oz-in/mNm for reliability. Type classification Hybrid for specifications. The operating voltage rating of the device 24VDC.
