Stock:
Distributor: 141
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 16,291.45000 | ₹ 16,291.45 |
| 10 | ₹ 14,437.22000 | ₹ 1,44,372.20 |
| 25 | ₹ 14,046.41000 | ₹ 3,51,160.25 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

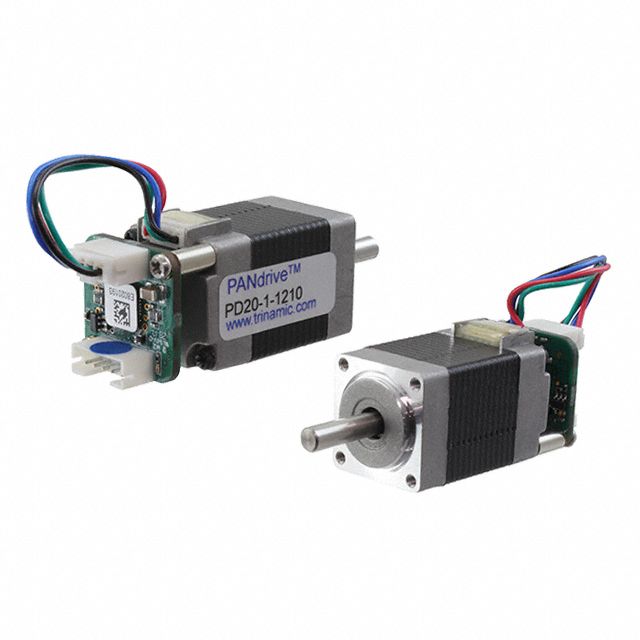

| Product Series Line | PANdrive™ | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Device Type Classification | Hybrid | |
| Electromagnetic Coil Design | Bipolar | |
| Rated Operating Voltage | 24VDC | |
| Ampere Capacity Rating | 600 mA | |
| Revolution Step Count | 200.0 | |
| Stepper Motor Step Degrees | 1.8° | |
| Precision Level | ±5% | |
| Holding Torque Rating | 2.48 / 17.5 | |
| Package Size Specs | Square - 0.787" x 0.787" (20.00mm x 20.00mm) | |
| Motor Frame Standard | 8 | |
| Shaft Rod Width | 0.157" (4.00mm) | |
| Shaft Bearing Total Length | 0.591" (15.00mm) | |
| Screw Hole Pitch | 0.630" (16.00mm) | |
| Lead Termination Type | Connector | |
| Ambient Temp Range | -20°C ~ 50°C | |
| Inductor Resistance Value | 6.5 Ohms | |
| Key Product Highlights | Integrated Controller, Round Shaft |
Description
Delivers measurement precision rated at ±5% for reliable results. Features a coil resistance measured at 6.5 Ohms to maintain consistent electromagnetic performance. Designed with a coil type classified as Bipolar for optimal electrical efficiency. Sets the ampere rating to 600 mA. Defines the shaft diameter as 0.157" (4.00mm). Equipped with features categorized as Integrated Controller, Round Shaft. Total length of the shaft and bearing 0.591" (15.00mm) for smooth assembly. Spacing between mounting holes 0.630" (16.00mm) for correct alignment. NEMA frame standard 8 for typical motor design. Temperature range -20°C ~ 50°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component PANdrive™. Details on package size Square - 0.787" x 0.787" (20.00mm x 20.00mm) for electrical or mechanical components. Measurement dimensions Square - 0.787" x 0.787" (20.00mm x 20.00mm) for component specifications. Step angle 1.8° related to stepper motors. Total steps per revolution 200.0 for rotating mechanisms. Type of termination Connector for connector or device. Torque retention 2.48 / 17.5 in oz-in/mNm for reliability. Type classification Hybrid for specifications. The operating voltage rating of the device 24VDC.
