Stock:
Distributor: 141
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 10,904.28000 | ₹ 10,904.28 |
| 10 | ₹ 9,662.82000 | ₹ 96,628.20 |
| 25 | ₹ 9,209.22000 | ₹ 2,30,230.50 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

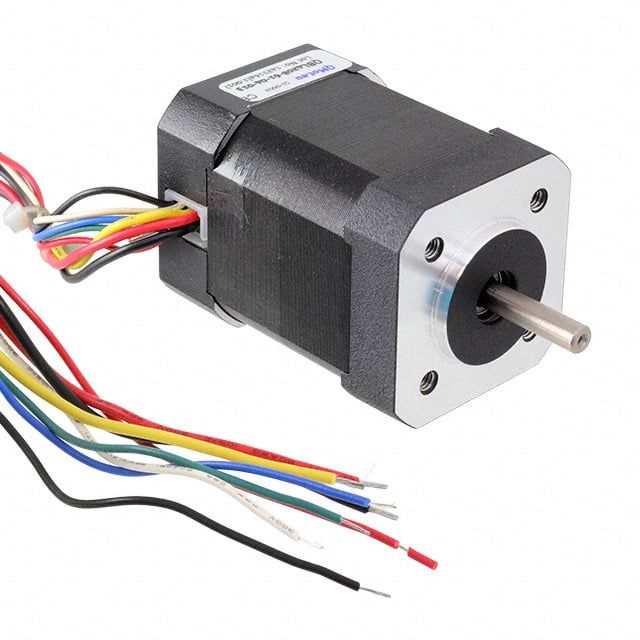

| Product Series Line | QMot QBL4208 | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Device Type Classification | DC Motor | |
| Primary Function Mode | Standard | |
| Electric Motor Design | Brushless (BLDC) | |
| Rated Operating Voltage | 24VDC | |
| Revolutions Per Minute | 4000 RPM | |
| Nominal Torque Value | 17.7 / 125 | |
| Nominal Power Rating | 52.4W | |
| Position Encoder Category | - | |
| Package Size Specs | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | |
| Shaft Rod Width | 0.197" (5.00mm) | |
| Shaft Bearing Total Length | 0.866" (22.00mm) | |
| Screw Hole Pitch | 1.417" (36.00mm) | |
| Lead Termination Type | Wire Leads | |
| Key Product Highlights | - | |
| Speed Reduction Gear Ratio | - | |
| Peak Instant Torque | 53.82 / 380 | |
| Ambient Temp Range | -20°C ~ 40°C |
Description
Defines the shaft diameter as 0.197" (5.00mm). Engineered with Standard features for versatile component usage. Total length of the shaft and bearing 0.866" (22.00mm) for smooth assembly. Type of motor Brushless (BLDC) for mechanical functionality. Spacing between mounting holes 1.417" (36.00mm) for correct alignment. Temperature range -20°C ~ 40°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Energy requirement 52.4W for device functionality. Designated power 52.4W to meet compliance standards. Product status Active concerning availability and lifecycle. The RPM value 4000 RPM for motors or mechanical devices. Classification series for the product or component QMot QBL4208. Details on package size Square - 1.654" x 1.654" (42.00mm x 42.00mm) for electrical or mechanical components. Measurement dimensions Square - 1.654" x 1.654" (42.00mm x 42.00mm) for component specifications. Type of termination Wire Leads for connector or device. Maximum torque 53.82 / 380 in oz-in/mNm for assessment. Designated torque 17.7 / 125 in oz-in/mNm for classification. Type classification DC Motor for specifications. The operating voltage rating of the device 24VDC.
