Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 300 | ₹ 2,216.68000 | ₹ 6,65,004.00 |
| 100 | ₹ 2,432.47000 | ₹ 2,43,247.00 |
| 50 | ₹ 2,600.35000 | ₹ 1,30,017.50 |
| 25 | ₹ 2,798.02000 | ₹ 69,950.50 |
| 10 | ₹ 3,114.05000 | ₹ 31,140.50 |
| 1 | ₹ 4,283.93000 | ₹ 4,283.93 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SMNZ | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Circuit Configuration Style | Isolated | |
| Ohm Value Specification | 10k | |
| Accuracy Tolerance Percentage | ±0.02% | |
| Resistor Component Total | 4 | |
| Resistor Pair Balance | ±0.01% | |
| Ratio Stability Over Time | ±1ppm/°C | |
| IC Pin Total | 8 | |
| Wattage per Component | 100mW | |
| Temp Drift Factor | ±0.2ppm/°C | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Intended Uses | - | |
| Attachment Mounting Style | Surface Mount | |

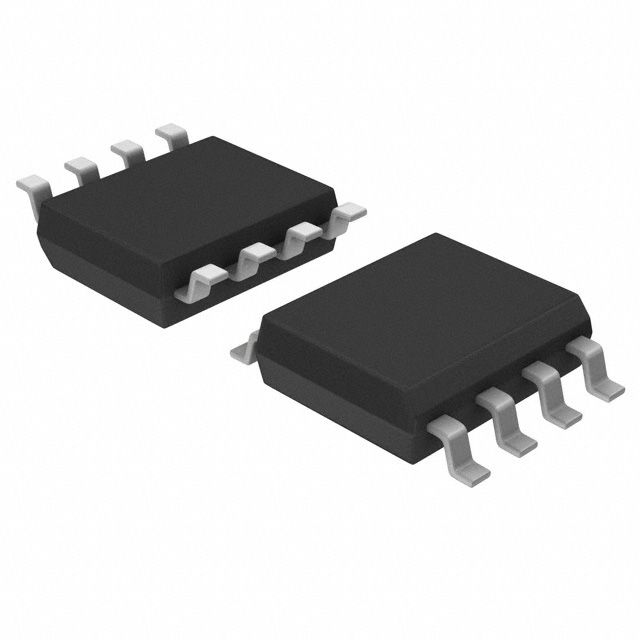

| Component Housing Style | 8-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | - | |
| Package Size Specs | 0.197" L x 0.157" W (5.00mm x 3.99mm) | |
| Maximum Mounted Height | 0.073" (1.86mm) |
Description
Employs a circuit variation identified as Isolated. Maximum installed height of 0.073" (1.86mm) for components affixed to the board. Mounting configuration Surface Mount for structural stability. Overall number of pins 8 for connectors or integrated circuits. Overall total of resistors 4 for circuit design purposes. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 8-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Energy per unit 100mW for evaluating modular systems. Product status Active concerning availability and lifecycle. Ohmic resistance value 10k for accurate electrical information. The alignment ratio of resistors ±0.01% for circuits requiring high precision. Variation in resistor ratio ±1ppm/°C to maintain temperature uniformity. Classification series for the product or component SMNZ. Details on package size 0.197" L x 0.157" W (5.00mm x 3.99mm) for electrical or mechanical components. Measurement dimensions 0.197" L x 0.157" W (5.00mm x 3.99mm) for component specifications. The temperature drift factor ±0.2ppm/°C that guarantees performance consistency. Precision tolerance level ±0.02% in manufacturing processes.
