Manufacturer

RIEDON PRODUCTS BY BOURNS

Part Number	Manufacturer	Price	Product Series Line	IC Encapsulation Type	Availability Status	Ohm Resistance Value	Accuracy Tolerance Percentage	Wattage Power Level	Material Blend	Temp Drift Factor	Ambient Temp Range	Key Product Highlights	Protective Enclosure Finish	Installation Mount Type	Package Size Specs	Maximum Mounted Height	Wire Lead Configuration	Component Housing Style	Reliability Failure Metric	Quality Grade Level	Certification Qualification
BR120-30RJ1 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	BR	Box	Active	30 Ohms	±5%	120W	Wirewound	±260ppm/°C	-55°C ~ 200°C	Non-Inductive	-	Flanges	7.165" L x 1.614" W (182.00mm x 41.00mm)	0.886" (22.50mm)	Quick Connects, 0.250" (6.35mm)	Radial, Rectangular Case	-	-	-
RSA-30-100 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RSI-600-100 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	RSI	Bulk	Active	167 µOhms	±0.25%	-	Metal Element	±15ppm/°C	30°C ~ 70°C	Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety	-	Flanges	7.000" L x 2.000" W (177.80mm x 50.80mm)	0.780" (19.81mm)	4-Terminal	Rectangular Case - Open	-	-	-
KHN2-T227 20 OHM 5% 100PPM RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	KHN	Bulk	Obsolete	20 Ohms	±5%	200W	Thick Film	±100ppm/°C	-55°C ~ 155°C	-	Epoxy Coated	Flanges	1.496" L x 1.024" W (38.00mm x 26.00mm)	0.476" (12.10mm)	M4 Threaded	SOT-227-2	-	-	-
UAL25-500RF RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	-	Bag	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PF2274-50RF1 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	PF2274	Tube	Active	50 Ohms	±1%	300W	Thick Film	±100ppm/°C	-55°C ~ 155°C	Moisture Resistant, Pulse Withstanding	-	Flanges	1.496" L x 0.984" W (38.00mm x 25.00mm)	0.402" (10.20mm)	M4 Threaded	SOT-227-2	-	-	-

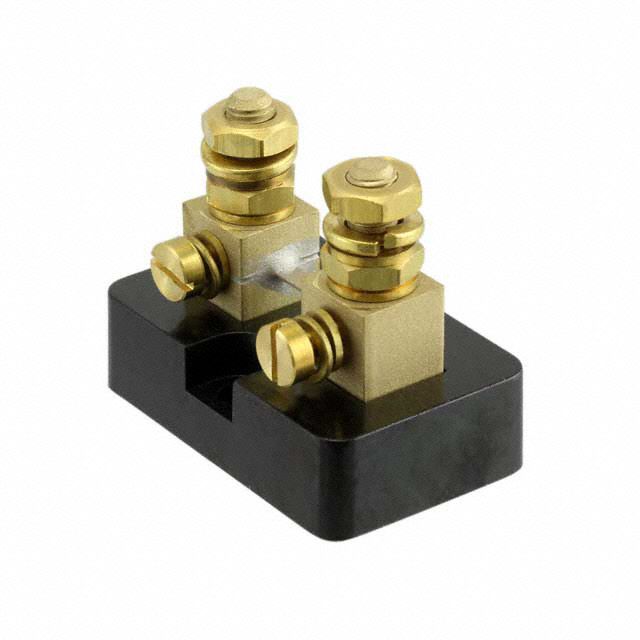

RSB-400-50 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	RS	Box	Active	125 µOhms	±0.25%	-	Metal Element	±15ppm/°C	-40°C ~ 60°C	Current Sense	-	Flanges	3.252" L x 1.752" W (82.60mm x 44.50mm)	1.720" (43.70mm)	M4 Threaded	Rectangular Case	-	-	-
UAL50-30RF8 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	UAL	Bulk	Active	30 Ohms	±1%	50W	Wirewound	±20ppm/°C	-55°C ~ 275°C	Current Sense, Flame Proof, Pulse Withstanding, Safety	Aluminum	Flanges	1.969" L x 1.142" W (50.00mm x 29.00mm)	0.630" (16.00mm)	Solder Lugs	Axial, Box	-	-	-
RSW-5-50 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	RSW	Bulk	Active	10 mOhms	±0.25%	-	Metal Element	±15ppm/°C	30°C ~ 70°C	Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety	-	Flanges	3.130" L x 0.500" W (79.50mm x 12.70mm)	0.281" (7.14mm)	-	Rectangular Case	-	-	-
RSW-150-50 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	RSW	Bulk	Active	333 µOhms	±0.25%	-	Metal Element	±15ppm/°C	30°C ~ 70°C	Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety	-	Flanges	3.620" L x 1.000" W (91.95mm x 25.40mm)	0.406" (10.32mm)	-	Rectangular Case	-	-	-

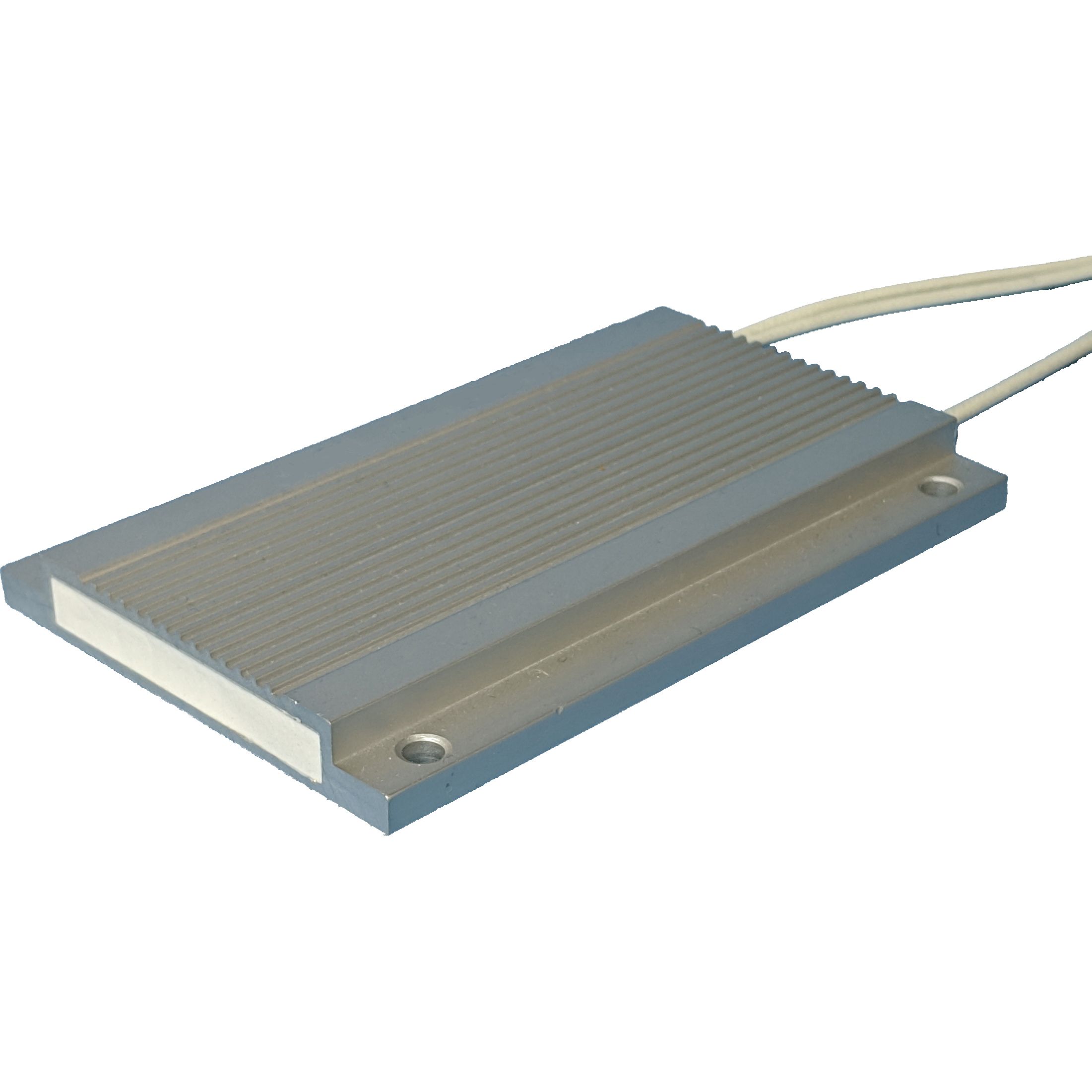

BRS300-100RJ8 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	BRS	Box	Active	100 Ohms	±5%	300W	Metal Clad	260ppm/°C	-55°C ~ 200°C	Moisture Resistant	-	Screw Holes	8.268" L x 3.150" W (210.00mm x 80.00mm)	0.472" (12.00mm)	Wire Leads	Rectangular Case	-	-	-

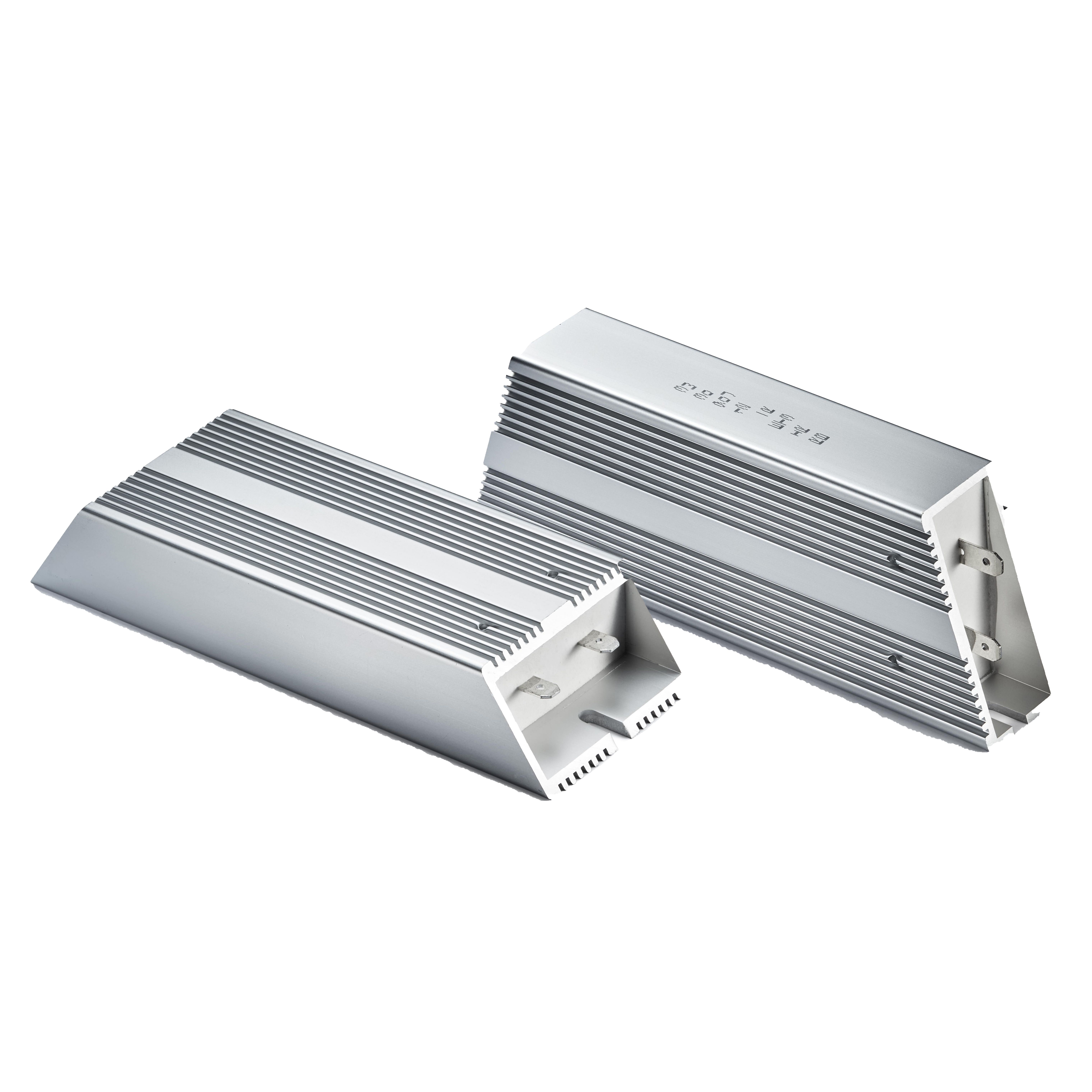

BRT300-25RJ8 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	BRT	Box	Active	25 Ohms	±5%	300W	Metal Clad	±260ppm/°C	-55°C ~ 200°C	Moisture Resistant	-	Brackets	8.465" L x 1.181" W (215.00mm x 30.00mm)	2.382" (60.50mm)	Quick Connects, 0.250" (6.35mm)	Radial, Rectangular Case	-	-	-

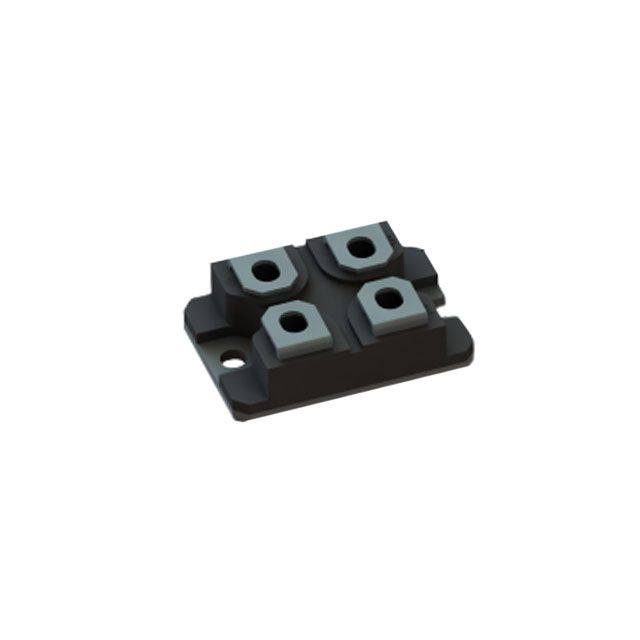

KHR4-T227 2000 OHM 5% RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	KHR	Bulk	Obsolete	2 kOhms	±5%	200W	Thick Film	±100ppm/°C	-55°C ~ 155°C	-	Epoxy Coated	Flanges	1.496" L x 1.024" W (38.00mm x 26.00mm)	0.476" (12.10mm)	M4 Threaded	SOT-227-4	-	-	-
BRS100-10RJ1 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	BRS	Box	Active	10 Ohms	±5%	100W	Wirewound	260ppm/°C	-55°C ~ 200°C	-	-	Screw Holes	3.543" L x 3.150" W (90.00mm x 80.00mm)	0.472" (12.00mm)	Wire Leads	Rectangular Case	-	-	-

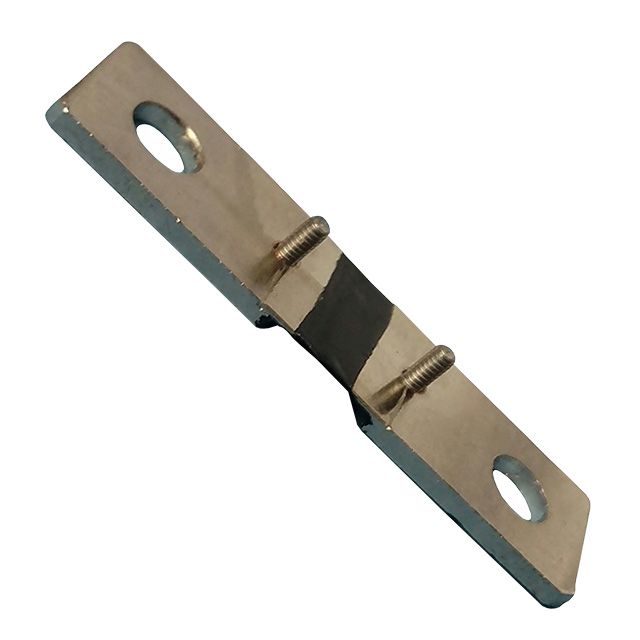

RCS4-0R0004F1 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	RCS	Bulk	Obsolete	400 µOhms	±1%	3W	Metal Element	0/ +100ppm/°C	-55°C ~ 175°C	Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety	-	Screw Holes	2.165" L x 0.591" W (55.00mm x 15.00mm)	0.079" (2.00mm)	-	Rectangular Case	-	-	-

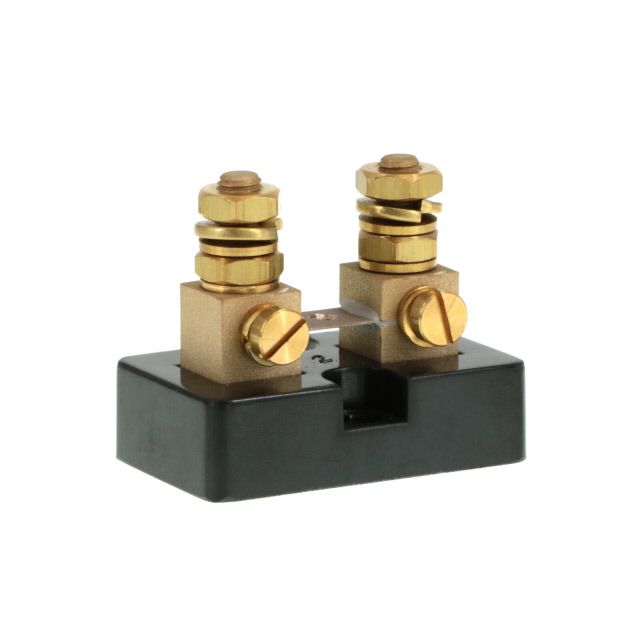

RSA-10-50 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	RS	Bulk	Active	5 mOhms	±0.25%	0.5W, 1/2W	Metal Element	±15ppm/°C	-40°C ~ 60°C	Current Sense, Pulse Withstanding	-	Flanges	2.000" L x 1.252" W (50.80mm x 31.80mm)	1.700" (43.18mm)	M4 Threaded	Rectangular Case	-	-	-
RSA-20-50 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	RS	Bulk	Active	2.5 mOhms	±0.25%	1W	Metal Element	±15ppm/°C	-40°C ~ 60°C	Current Sense, Pulse Withstanding	-	Flanges	2.000" L x 1.252" W (50.80mm x 31.80mm)	1.700" (43.18mm)	M4 Threaded	Rectangular Case	-	-	-
RSA-80-50 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	RS	Box	Active	625 µOhms	±0.25%	-	Metal Element	±15ppm/°C	-40°C ~ 60°C	Current Sense	-	Flanges	2.000" L x 1.252" W (50.80mm x 31.80mm)	1.701" (43.20mm)	M4 Threaded	Rectangular Case	-	-	-
UAL10-1KF8 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	UAL	Bulk	Active	1 kOhms	±1%	10W	Wirewound	±20ppm/°C	-55°C ~ 275°C	Current Sense, Flame Proof, Pulse Withstanding, Safety	Aluminum	Flanges	0.752" L x 0.799" W (19.10mm x 20.30mm)	0.417" (10.60mm)	Solder Lugs	Axial, Box	-	-	-
UAL25-2R5F8 RIEDON PRODUCTS BY BOURNS	RIEDON PRODUCTS BY BOURNS	-	UAL	Bulk	Active	2.5 Ohms	±1%	25W	Wirewound	±50ppm/°C	-55°C ~ 275°C	Current Sense, Flame Proof, Pulse Withstanding, Safety	Aluminum	Flanges	1.063" L x 1.079" W (27.00mm x 27.40mm)	0.575" (14.60mm)	Solder Lugs	Axial, Box	-	-	-
