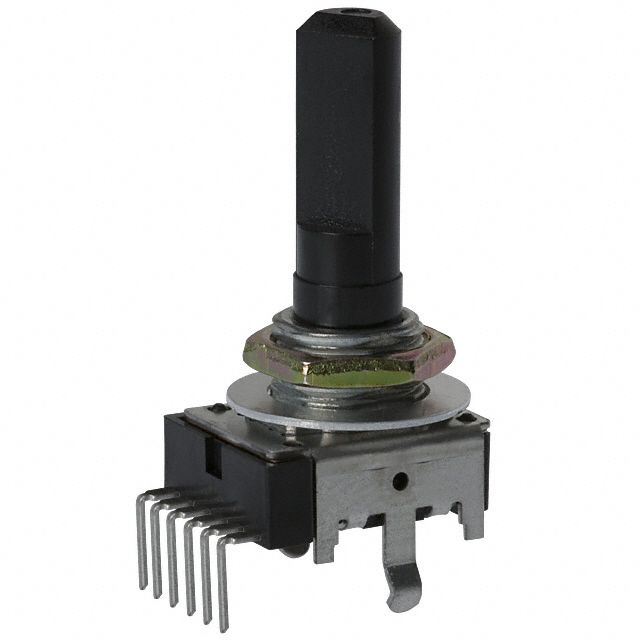

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | EVJ | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Ohm Value Specification | 50k | |
| Accuracy Tolerance Percentage | ±20% | |
| Wattage Power Level | 0.05W, 1/20W | |
| Integrated Toggle Control | Detent | |
| Coil Winding Turns | 1.0 | |
| Key Product Highlights | - | |
| Gradual Taper Angle | Linear | |
| Multi-Gang Switch Count | 2 | |
| Tuning Mechanism Style | Top Adjustment | |
| Temp Drift Factor | - | |
| Rotational Movement Degrees | 300° | |
| Resistor Element Composition | - | |
| Lead Termination Type | PC Pins, Board Locks | |
| Activator Mechanism Type | Flatted | |
| Activator Arm Length | 0.886" (22.50mm) | |
| Activator Shaft Width | 0.236" (6.00mm) | |
| Insulator Thread Pattern | M9 x 0.75 | |
| Attachment Mounting Style | Panel Mount |
Description
Has an actuator diameter of 0.236" (6.00mm) to achieve optimal functionality. Engineered with an actuator length of 0.886" (22.50mm) to provide sufficient interaction range. Incorporates a Flatted actuator type to fulfill the desired function. Features an adjustment mechanism described as Top Adjustment for accurate tuning. Includes a built-in toggle system categorized as Detent. Crafted with a bushing thread dimension of M9 x 0.75 to guarantee a secure connection. Mounting configuration Panel Mount for structural stability. Total gangs 2 situated in mechanical assemblies or switches. Total number of windings 1.0 for coils or inductors. Type of housing Bulk for safeguarding or transporting components. Power measured in watts 0.05W, 1/20W for optimal operation. Product status Obsolete concerning availability and lifecycle. Ohmic resistance value 50k for accurate electrical information. The 300° angle of rotation for mechanical movement or angular adjustment. Classification series for the product or component EVJ. The taper angle Linear relevant to mechanical or optical elements. Type of termination PC Pins, Board Locks for connector or device. Precision tolerance level ±20% in manufacturing processes.
