Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Ohm Value Specification | 5k | |
| Accuracy Tolerance Percentage | - | |
| Wattage Power Level | 0.06W | |
| Integrated Toggle Control | None | |
| Coil Winding Turns | 1.0 | |
| Key Product Highlights | - | |
| Gradual Taper Angle | Logarithmic | |
| Multi-Gang Switch Count | 1 | |
| Tuning Mechanism Style | Top Adjustment | |
| Temp Drift Factor | - | |
| Rotational Movement Degrees | 300° | |
| Resistor Element Composition | - | |
| Lead Termination Type | PC Pins | |
| Activator Mechanism Type | Round | |
| Activator Arm Length | 0.591" (15.00mm) | |
| Activator Shaft Width | 0.236" (6.00mm) | |
| Insulator Thread Pattern | M7 x 0.75 | |
| Attachment Mounting Style | Through Hole |

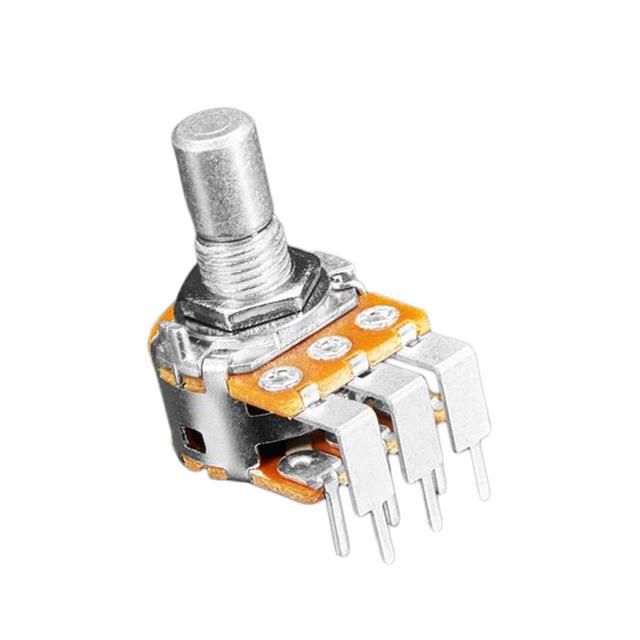

Description
Has an actuator diameter of 0.236" (6.00mm) to achieve optimal functionality. Engineered with an actuator length of 0.591" (15.00mm) to provide sufficient interaction range. Incorporates a Round actuator type to fulfill the desired function. Features an adjustment mechanism described as Top Adjustment for accurate tuning. Includes a built-in toggle system categorized as None. Crafted with a bushing thread dimension of M7 x 0.75 to guarantee a secure connection. Mounting configuration Through Hole for structural stability. Total gangs 1 situated in mechanical assemblies or switches. Total number of windings 1.0 for coils or inductors. Type of housing Bulk for safeguarding or transporting components. Power measured in watts 0.06W for optimal operation. Product status Active concerning availability and lifecycle. Ohmic resistance value 5k for accurate electrical information. The 300° angle of rotation for mechanical movement or angular adjustment. The taper angle Logarithmic relevant to mechanical or optical elements. Type of termination PC Pins for connector or device.
