Attribute
Description
Manufacturer Part Number
100SP1T7B13M2QE
Manufacturer
Description

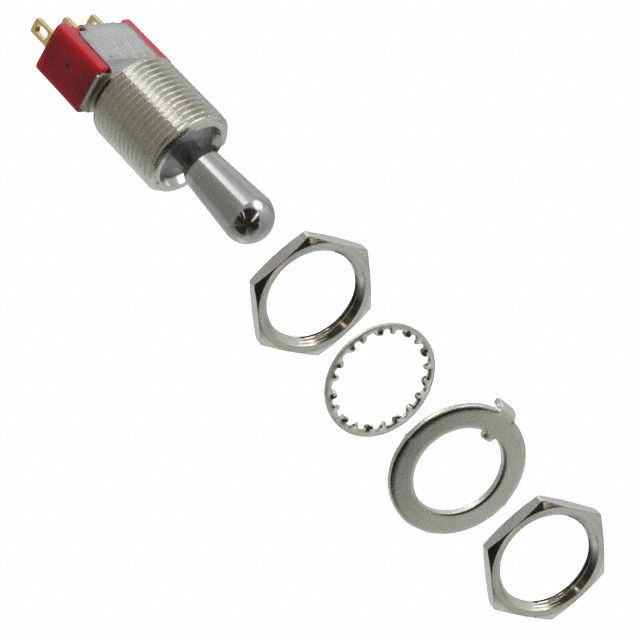

SWITCH TOGGLE SPDT 5A 120V
Manufacturer Lead Time
13 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Circuit | SPDT | |
| Switch Function | On-On | |
| Current Rating | 5A (AC/DC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Standard Round | |
| Actuator Length | 13.00mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Panel Cutout Dimensions | Circular - 11.91mm Dia | |
| Termination Style | PC Pin | |
| Bushing Thread | 15/32-32 | |
| Ingress Protection | - |
