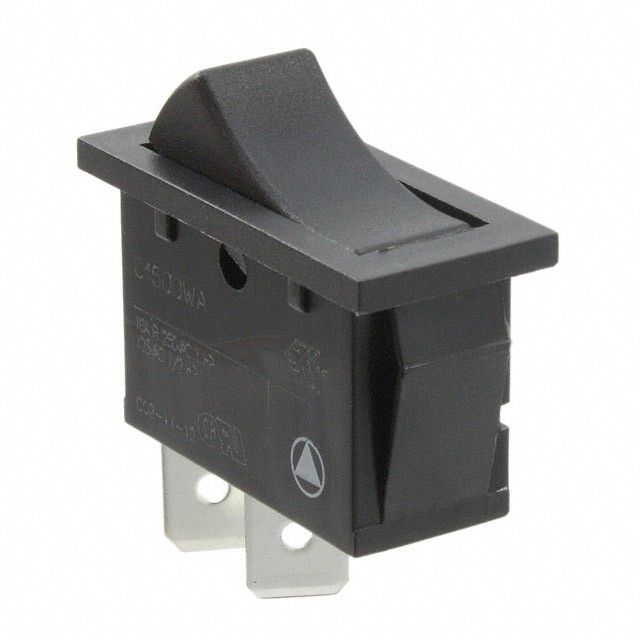

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electrical Pathway | SPST | |
| Switch Operation Mode | On-Off | |
| Rated Current | 20A (AC) | |
| AC Voltage Max | 277V | |
| DC Voltage Max | - | |
| Actuator Design | Concave (Curved) | |
| Activator Cap Shade | Black | |
| Activator Label Indicator | No Marking | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Attachment Mounting Style | Panel Mount, Snap-In | |
| Lead Termination Type | Quick Connect - 0.250" (6.3mm) | |
| Dust Water Resistance Rating | Splash Proof | |
| Mount Cutout Specs | Rectangular - 30.10mm x 11.10mm |
Description
Features labels marked as No Marking for easy identification. Employs a Concave (Curved) actuator type specifically designed for particular application needs. Configured for circuit type described as SPST. Made with an actuator or cap color labeled as Black for visual differentiation. Indicates a current rating of 20A (AC). Rated with IP Splash Proof to safeguard against dust and moisture penetration. Mounting configuration Panel Mount, Snap-In for structural stability. Specifications of the cutout Rectangular - 30.10mm x 11.10mm for accurate mounting. Modification in operation mode On-Off for electrical optimization. Type of termination Quick Connect - 0.250" (6.3mm) for connector or device. Maximum Vce(on) at Vge SPST for transistor specifications. The highest AC voltage specification 277V for the device.
