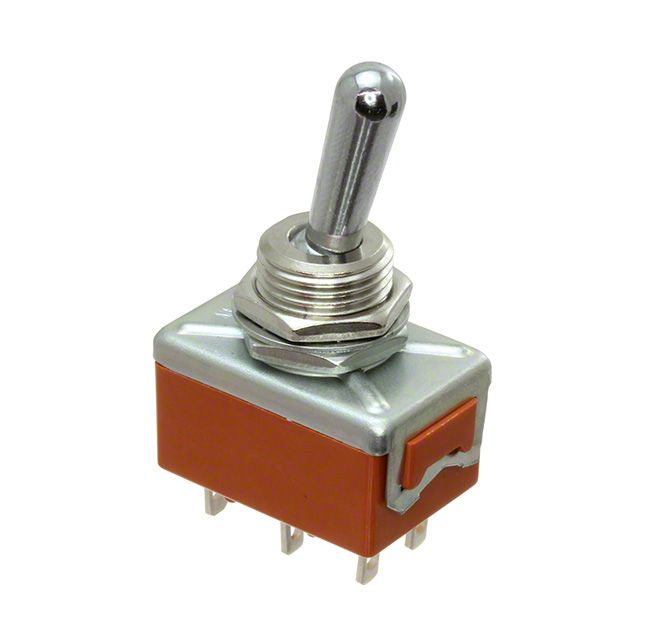

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | T-06 | |
| IC Encapsulation Type | Box | |
| Availability Status | Last Time Buy | |
| Attachment Mounting Style | Through Hole | |
| Electrical Pathway | DPDT | |
| Switch Operation Mode | On-On | |
| Ampere Capacity Rating | 6A (AC/DC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | 30 V | |
| Activator Mechanism Type | Anti-Rotation | |
| Activator Arm Length | 17.50mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Lead Termination Type | PC Pin | |
| Mount Cutout Specs | Circular - 12.30mm Dia | |
| Insulator Thread Pattern | M12 x 1 | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | -25°C ~ 70°C |
Description
Engineered with an actuator length of 17.50mm to provide sufficient interaction range. Incorporates a Anti-Rotation actuator type to fulfill the desired function. Crafted with a bushing thread dimension of M12 x 1 to guarantee a secure connection. Configured for circuit type described as DPDT. Sets the ampere rating to 6A (AC/DC). Provides Non-Illuminated brightness for improved visibility. Mounting configuration Through Hole for structural stability. Temperature range -25°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Specifications of the cutout Circular - 12.30mm Dia for accurate mounting. Product status Last Time Buy concerning availability and lifecycle. Classification series for the product or component T-06. Modification in operation mode On-On for electrical optimization. Type of termination PC Pin for connector or device. The highest AC voltage specification 125 V for the device. The highest DC voltage specification 30 V for components.
