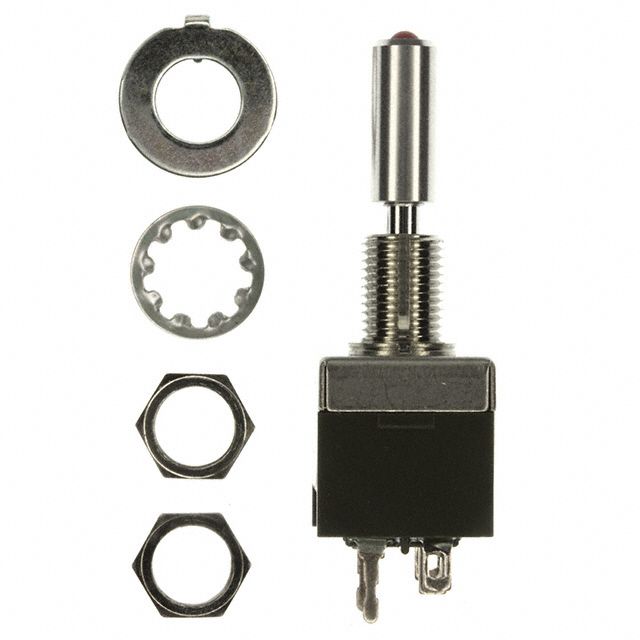

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | M | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount | |
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-Off-On | |
| Ampere Capacity Rating | 6A (AC), 3A (DC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | 30 V | |
| Activator Mechanism Type | Standard Round | |
| Activator Arm Length | 14.70mm | |
| Backlighting Feature | Illuminated | |
| LED Illumination Shades | LED, Red | |
| Standard Illumination Volts | 2.2 VDC | |
| Lead Termination Type | Solder Lug | |
| Mount Cutout Specs | Circular - 6.50mm Dia | |
| Insulator Thread Pattern | 1/4-40 | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | -10°C ~ 55°C |
Description
Engineered with an actuator length of 14.70mm to provide sufficient interaction range. Incorporates a Standard Round actuator type to fulfill the desired function. Crafted with a bushing thread dimension of 1/4-40 to guarantee a secure connection. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Configured for circuit type described as SPDT. Sets the ampere rating to 6A (AC), 3A (DC). Provides Illuminated brightness for improved visibility. Includes LED, Red colored LEDs for effective signaling. Works at a standard voltage of 2.2 VDC for illumination. Mounting configuration Panel Mount for structural stability. Temperature range -10°C ~ 55°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 6.50mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component M. Modification in operation mode On-Off-On for electrical optimization. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination Solder Lug for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. The highest AC voltage specification 125 V for the device. The highest DC voltage specification 30 V for components.
