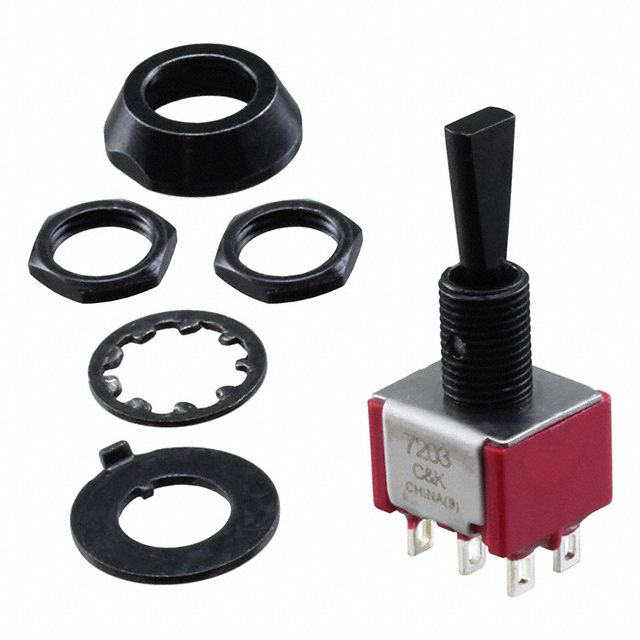

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 7000 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount | |
| Electrical Pathway | DPDT | |
| Switch Operation Mode | On-Off-On | |
| Ampere Capacity Rating | 5A (AC/DC) | |
| AC Voltage Max | 120 V | |
| DC Voltage Max | 28 V | |
| Activator Mechanism Type | Flat Anti-Rotation | |
| Activator Arm Length | 11.43mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Lead Termination Type | Solder Lug | |
| Mount Cutout Specs | Circular - 6.35mm Dia | |
| Insulator Thread Pattern | 1/4-40 | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | Black Actuator | |
| Ambient Temp Range | -30°C ~ 85°C |
Description
Engineered with an actuator length of 11.43mm to provide sufficient interaction range. Incorporates a Flat Anti-Rotation actuator type to fulfill the desired function. Crafted with a bushing thread dimension of 1/4-40 to guarantee a secure connection. Configured for circuit type described as DPDT. Sets the ampere rating to 5A (AC/DC). Equipped with features categorized as Black Actuator. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Panel Mount for structural stability. Temperature range -30°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 6.35mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component 7000. Modification in operation mode On-Off-On for electrical optimization. Type of termination Solder Lug for connector or device. The highest AC voltage specification 120 V for the device. The highest DC voltage specification 28 V for components.
