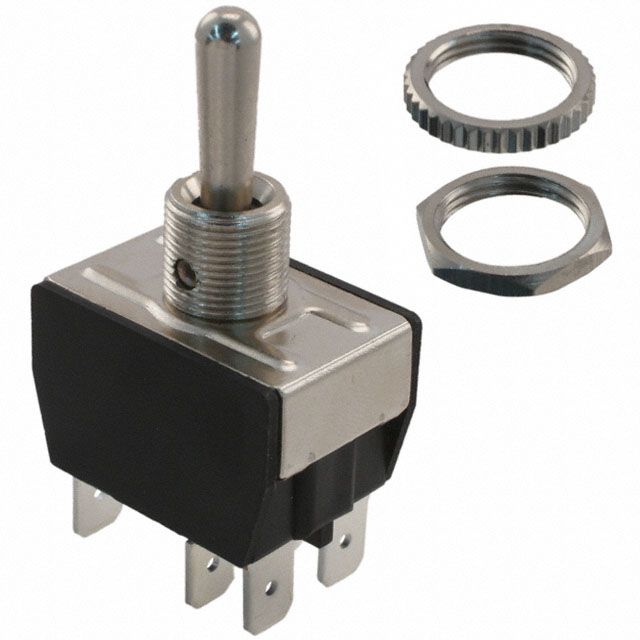

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 3900 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount | |
| Electrical Pathway | DPST | |
| Switch Operation Mode | On-On | |
| Ampere Capacity Rating | 16A (AC), 14A (DC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | 36 V | |
| Activator Mechanism Type | Standard Round | |
| Activator Arm Length | 17.50mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Lead Termination Type | Quick Connect - 0.250" (6.3mm) | |
| Mount Cutout Specs | Circular - 12.70mm Dia | |
| Insulator Thread Pattern | 15/32-32 | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | - |
Description
Engineered with an actuator length of 17.50mm to provide sufficient interaction range. Incorporates a Standard Round actuator type to fulfill the desired function. Crafted with a bushing thread dimension of 15/32-32 to guarantee a secure connection. Configured for circuit type described as DPST. Sets the ampere rating to 16A (AC), 14A (DC). Provides Non-Illuminated brightness for improved visibility. Mounting configuration Panel Mount for structural stability. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 12.70mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component 3900. Modification in operation mode On-On for electrical optimization. Type of termination Quick Connect - 0.250" (6.3mm) for connector or device. The highest AC voltage specification 125 V for the device. The highest DC voltage specification 36 V for components.
