Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 714.67000 | ₹ 714.67 |
| 10 | ₹ 618.55000 | ₹ 6,185.50 |
| 25 | ₹ 603.42000 | ₹ 15,085.50 |
| 50 | ₹ 590.07000 | ₹ 29,503.50 |
| 100 | ₹ 558.92000 | ₹ 55,892.00 |
| 200 | ₹ 509.08000 | ₹ 1,01,816.00 |
| 600 | ₹ 508.19000 | ₹ 3,04,914.00 |
| 1000 | ₹ 489.50000 | ₹ 4,89,500.00 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 720.45000 | ₹ 720.45 |
| 5 | ₹ 692.23000 | ₹ 3,461.15 |
| 10 | ₹ 657.37000 | ₹ 6,573.70 |
| 20 | ₹ 632.57000 | ₹ 12,651.40 |
| 50 | ₹ 608.66000 | ₹ 30,433.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 1700 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount | |
| Electrical Pathway | SPST | |
| Switch Operation Mode | On-Off | |
| Ampere Capacity Rating | 20A (AC) | |
| AC Voltage Max | 250 V | |
| DC Voltage Max | - | |
| Activator Mechanism Type | Flatted | |
| Activator Arm Length | 16.40mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Lead Termination Type | Quick Connect - 0.250" (6.3mm) | |
| Mount Cutout Specs | Circular - 12.70mm Dia | |
| Insulator Thread Pattern | 15/32-32 | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | - |

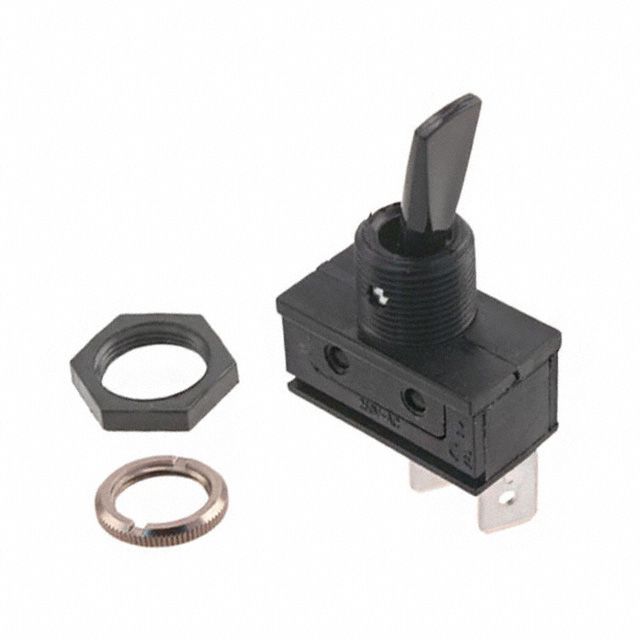

Description
Engineered with an actuator length of 16.40mm to provide sufficient interaction range. Incorporates a Flatted actuator type to fulfill the desired function. Crafted with a bushing thread dimension of 15/32-32 to guarantee a secure connection. Configured for circuit type described as SPST. Sets the ampere rating to 20A (AC). Provides Non-Illuminated brightness for improved visibility. Mounting configuration Panel Mount for structural stability. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 12.70mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component 1700. Modification in operation mode On-Off for electrical optimization. Type of termination Quick Connect - 0.250" (6.3mm) for connector or device. The highest AC voltage specification 250 V for the device.
