Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 161.09000 | ₹ 161.09 |
| 10 | ₹ 140.62000 | ₹ 1,406.20 |
| 25 | ₹ 131.72000 | ₹ 3,293.00 |
| 540 | ₹ 129.94000 | ₹ 70,167.60 |
| 1020 | ₹ 126.38000 | ₹ 1,28,907.60 |
| 2520 | ₹ 118.37000 | ₹ 2,98,292.40 |
| 5040 | ₹ 103.24000 | ₹ 5,20,329.60 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 203.26000 | ₹ 203.26 |
| 10 | ₹ 172.43000 | ₹ 1,724.30 |

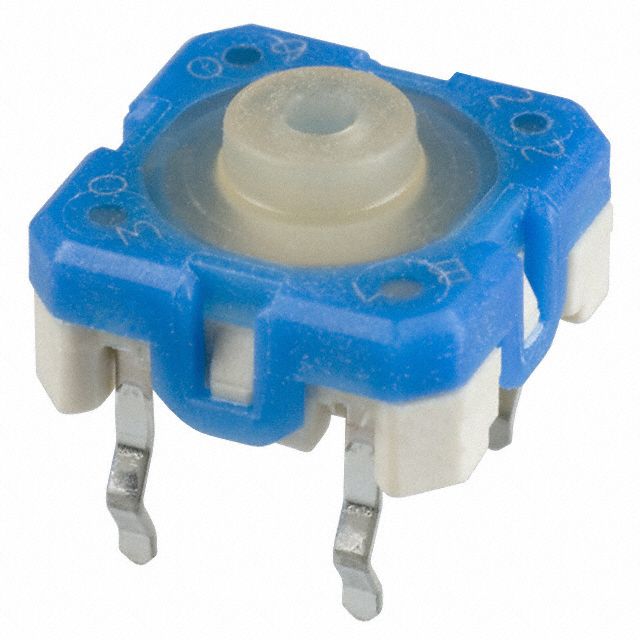

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | RACON 8 | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.1A @ 42VAC/DC | |
| Activator Mechanism Type | Standard | |
| Attachment Mounting Style | Through Hole | |
| Vertical Activator PCB Height | 4.90mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | PC Pin | |
| Dimensional Outline Drawing | 8.40mm x 8.40mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 330gf | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 80°C |
Description
Rises 4.90mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Standard actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.1A @ 42VAC/DC. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Through Hole for structural stability. Pressure applied 330gf for ergonomic or mechanical operations. Temperature range -40°C ~ 80°C for environmental conditions impacting thermal efficiency. Shape outline 8.40mm x 8.40mm for device design and footprint. Type of housing Tube for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component RACON 8. Modification in operation mode Off-Mom for electrical optimization. Type of termination PC Pin for connector or device.
