Stock:
Distributor: 113
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 750 | ₹ 173.19000 | ₹ 1,29,892.50 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 270.56000 | ₹ 270.56 |
| 10 | ₹ 226.95000 | ₹ 2,269.50 |
| 25 | ₹ 210.93000 | ₹ 5,273.25 |
| 100 | ₹ 187.79000 | ₹ 18,779.00 |
| 250 | ₹ 174.44000 | ₹ 43,610.00 |
| 500 | ₹ 173.55000 | ₹ 86,775.00 |
| 750 | ₹ 149.52000 | ₹ 1,12,140.00 |
| 2250 | ₹ 138.84000 | ₹ 3,12,390.00 |
| 4500 | ₹ 131.72000 | ₹ 5,92,740.00 |

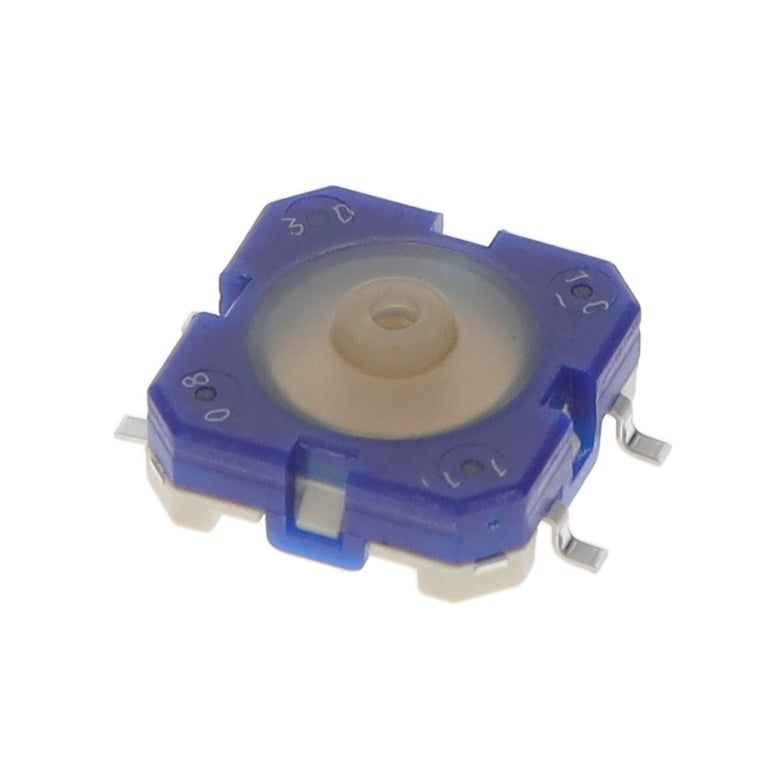

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | RACON 12 S | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.1A @ 35VAC/DC | |
| Activator Mechanism Type | Standard | |
| Attachment Mounting Style | Surface Mount | |
| Vertical Activator PCB Height | 4.96mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | SMD (SMT) Tab | |
| Dimensional Outline Drawing | 12.00mm x 12.00mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 816gf | |
| Dust Water Resistance Rating | IP54 - Dust Protected, Water Resistant | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 90°C |
Description
Rises 4.96mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Standard actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.1A @ 35VAC/DC. Provides Non-Illuminated brightness for improved visibility. Rated with IP IP54 - Dust Protected, Water Resistant to safeguard against dust and moisture penetration. Mounting configuration Surface Mount for structural stability. Pressure applied 816gf for ergonomic or mechanical operations. Temperature range -40°C ~ 90°C for environmental conditions impacting thermal efficiency. Shape outline 12.00mm x 12.00mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component RACON 12 S. Modification in operation mode Off-Mom for electrical optimization. Type of termination SMD (SMT) Tab for connector or device.
