Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Multimec® 4 | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 24VDC | |
| Activator Mechanism Type | Plunger for Cap | |
| Attachment Mounting Style | Surface Mount | |
| Vertical Activator PCB Height | 8.40mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | Gull Wing | |
| Dimensional Outline Drawing | 10.10mm x 10.10mm | |
| Backlighting Feature | Illuminated | |
| LED Illumination Shades | LED, Green | |
| Standard Illumination Volts | 2.2 VDC | |
| Activation Pressure Required | 300gf | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Key Product Highlights | Sealed - Flux Protection | |
| Ambient Temp Range | -30°C ~ 85°C |
Description

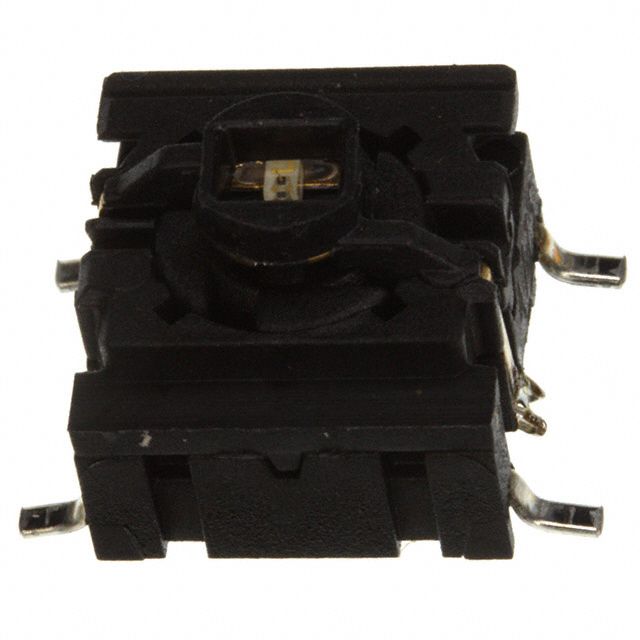

Rises 8.40mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Plunger for Cap actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 24VDC. Equipped with features categorized as Sealed - Flux Protection. Provides Illuminated brightness for improved visibility. Includes LED, Green colored LEDs for effective signaling. Works at a standard voltage of 2.2 VDC for illumination. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Surface Mount for structural stability. Pressure applied 300gf for ergonomic or mechanical operations. Temperature range -30°C ~ 85°C for environmental conditions impacting thermal efficiency. Shape outline 10.10mm x 10.10mm for device design and footprint. Type of housing Tube for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component Multimec® 4. Modification in operation mode Off-Mom for electrical optimization. Type of termination Gull Wing for connector or device.
