Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 18000 | ₹ 28.75000 | ₹ 5,17,500.00 |
| 12600 | ₹ 29.39000 | ₹ 3,70,314.00 |
| 9000 | ₹ 30.04000 | ₹ 2,70,360.00 |
| 5400 | ₹ 31.09000 | ₹ 1,67,886.00 |
| 3600 | ₹ 32.00000 | ₹ 1,15,200.00 |
| 1800 | ₹ 33.70000 | ₹ 60,660.00 |
| 500 | ₹ 37.32000 | ₹ 18,660.00 |
| 250 | ₹ 39.52000 | ₹ 9,880.00 |
| 100 | ₹ 42.67000 | ₹ 4,267.00 |
| 50 | ₹ 45.20000 | ₹ 2,260.00 |
| 25 | ₹ 47.80000 | ₹ 1,195.00 |
| 10 | ₹ 51.28000 | ₹ 512.80 |
| 1 | ₹ 59.76000 | ₹ 59.76 |

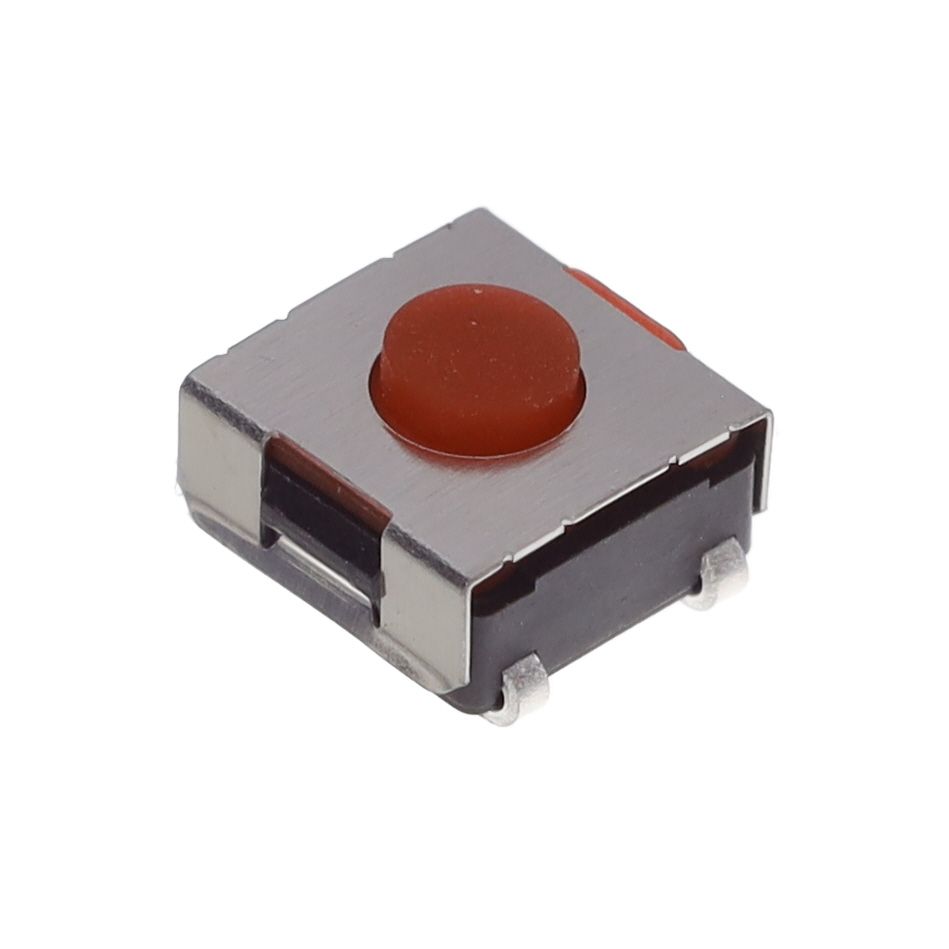

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TSS | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 32VDC | |
| Activator Mechanism Type | Standard | |
| Attachment Mounting Style | Surface Mount | |
| Vertical Activator PCB Height | 3.90mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | J Lead | |
| Dimensional Outline Drawing | 6.30mm x 6.20mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 260gf | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 85°C |
Description
Rises 3.90mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Standard actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 32VDC. Provides Non-Illuminated brightness for improved visibility. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Surface Mount for structural stability. Pressure applied 260gf for ergonomic or mechanical operations. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Shape outline 6.30mm x 6.20mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component TSS. Modification in operation mode Off-Mom for electrical optimization. Type of termination J Lead for connector or device.
