Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 18.68000 | ₹ 93,400.00 |
| 2500 | ₹ 20.73000 | ₹ 51,825.00 |
| 1000 | ₹ 22.48000 | ₹ 22,480.00 |
| 500 | ₹ 24.30000 | ₹ 12,150.00 |
| 100 | ₹ 29.25000 | ₹ 2,925.00 |
| 25 | ₹ 34.48000 | ₹ 862.00 |
| 10 | ₹ 38.52000 | ₹ 385.20 |
| 1 | ₹ 51.60000 | ₹ 51.60 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 18.97000 | ₹ 94,850.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 50.73000 | ₹ 50.73 |
| 10 | ₹ 38.54000 | ₹ 385.40 |
| 25 | ₹ 34.53000 | ₹ 863.25 |
| 100 | ₹ 29.28000 | ₹ 2,928.00 |
| 500 | ₹ 24.39000 | ₹ 12,195.00 |
| 1000 | ₹ 22.52000 | ₹ 22,520.00 |
| 2500 | ₹ 20.56000 | ₹ 51,400.00 |
| 5000 | ₹ 18.96000 | ₹ 94,800.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.012A @ 24VDC | |
| Activator Mechanism Type | Snap Dome | |
| Attachment Mounting Style | Surface Mount | |
| Vertical Activator PCB Height | 0.50mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | SMD (SMT) Tab | |
| Dimensional Outline Drawing | 7.00mm x 7.00mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 280gf | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | Flex Membrane | |
| Ambient Temp Range | -40°C ~ 105°C |
Description

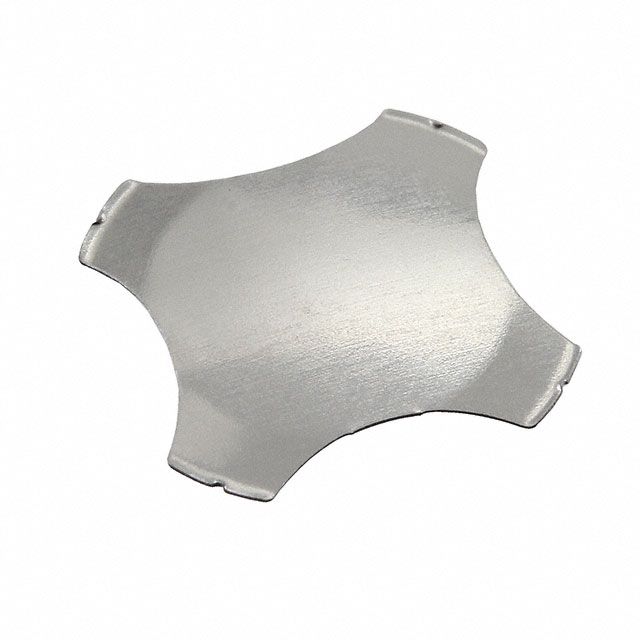

Rises 0.50mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Snap Dome actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.012A @ 24VDC. Equipped with features categorized as Flex Membrane. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Surface Mount for structural stability. Pressure applied 280gf for ergonomic or mechanical operations. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Shape outline 7.00mm x 7.00mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Modification in operation mode Off-Mom for electrical optimization. Type of termination SMD (SMT) Tab for connector or device.
