Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 12000 | ₹ 88.86000 | ₹ 10,66,320.00 |
| 6000 | ₹ 89.32000 | ₹ 5,35,920.00 |
| 3000 | ₹ 89.78000 | ₹ 2,69,340.00 |
| 1800 | ₹ 90.25000 | ₹ 1,62,450.00 |
| 1200 | ₹ 90.71000 | ₹ 1,08,852.00 |
Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1200 | ₹ 92.56000 | ₹ 1,11,072.00 |
| 900 | ₹ 94.34000 | ₹ 84,906.00 |
| 600 | ₹ 118.37000 | ₹ 71,022.00 |
| 300 | ₹ 193.13000 | ₹ 57,939.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 7500 | ₹ 102.05000 | ₹ 7,65,375.00 |
| 3000 | ₹ 108.00000 | ₹ 3,24,000.00 |
| 2100 | ₹ 110.61000 | ₹ 2,32,281.00 |
| 1500 | ₹ 113.21000 | ₹ 1,69,815.00 |
| 900 | ₹ 117.47000 | ₹ 1,05,723.00 |
| 600 | ₹ 121.10000 | ₹ 72,660.00 |
| 300 | ₹ 127.83000 | ₹ 38,349.00 |
| 100 | ₹ 124.09000 | ₹ 12,409.00 |
| 25 | ₹ 139.30000 | ₹ 3,482.50 |
| 10 | ₹ 150.18000 | ₹ 1,501.80 |
| 1 | ₹ 178.36000 | ₹ 178.36 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 300 | ₹ 106.80000 | ₹ 32,040.00 |
| 1200 | ₹ 106.80000 | ₹ 1,28,160.00 |
| 2400 | ₹ 104.13000 | ₹ 2,49,912.00 |
| 4800 | ₹ 101.46000 | ₹ 4,87,008.00 |

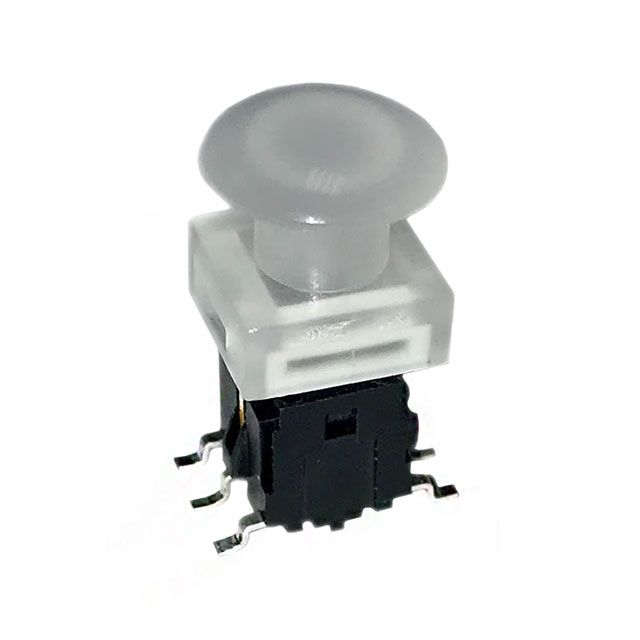

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 228B | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 12VDC | |
| Activator Mechanism Type | Round Button | |
| Attachment Mounting Style | Surface Mount | |
| Vertical Activator PCB Height | 16.80mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | Gull Wing | |
| Dimensional Outline Drawing | 7.50mm x 7.50mm | |
| Backlighting Feature | Illuminated | |
| LED Illumination Shades | LED, Yellow | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 160gf | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | -20°C ~ 70°C |
Description
Rises 16.80mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Round Button actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 12VDC. Provides Illuminated brightness for improved visibility. Includes LED, Yellow colored LEDs for effective signaling. Mounting configuration Surface Mount for structural stability. Pressure applied 160gf for ergonomic or mechanical operations. Temperature range -20°C ~ 70°C for environmental conditions impacting thermal efficiency. Shape outline 7.50mm x 7.50mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component 228B. Modification in operation mode Off-Mom for electrical optimization. Type of termination Gull Wing for connector or device.
