Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PTS635 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 12VDC | |
| Activator Mechanism Type | Rectangular Button | |
| Attachment Mounting Style | Through Hole | |
| Vertical Activator PCB Height | 5.00mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | PC Pin | |
| Dimensional Outline Drawing | 6.00mm x 3.50mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 130gf | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 60°C |
Description

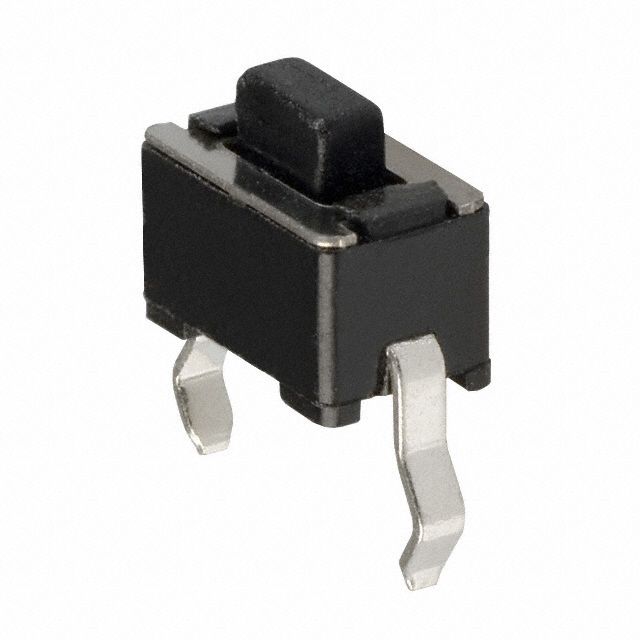

Rises 5.00mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Rectangular Button actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 12VDC. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Through Hole for structural stability. Pressure applied 130gf for ergonomic or mechanical operations. Temperature range -40°C ~ 60°C for environmental conditions impacting thermal efficiency. Shape outline 6.00mm x 3.50mm for device design and footprint. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component PTS635. Modification in operation mode Off-Mom for electrical optimization. Type of termination PC Pin for connector or device.
