Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | CS1206 | |

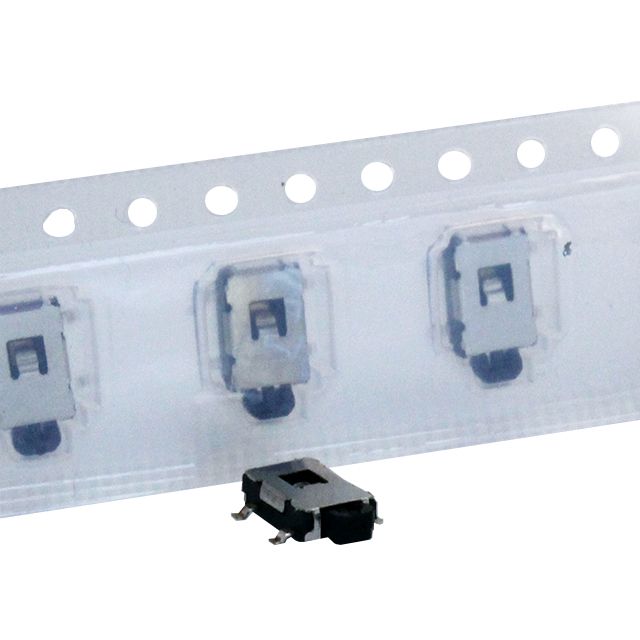

| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 50VDC | |
| Activator Mechanism Type | Rectangular Button | |
| Attachment Mounting Style | Surface Mount, Right Angle | |
| Vertical Activator PCB Height | - | |
| Right-Angle Activator Length | 7.40mm | |
| Activator Alignment Direction | Side Actuated | |
| Lead Termination Type | Gull Wing | |
| Dimensional Outline Drawing | 6.10mm x 4.50mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 200gf | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 85°C |
Description
Set up with a right-angle actuator length of 7.40mm for effective assembly. Aligned with Side Actuated actuator orientation for precise placement. Incorporates a Rectangular Button actuator type to fulfill the desired function. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 50VDC. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Surface Mount, Right Angle for structural stability. Pressure applied 200gf for ergonomic or mechanical operations. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Shape outline 6.10mm x 4.50mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component CS1206. Modification in operation mode Off-Mom for electrical optimization. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination Gull Wing for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
