Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 101200 | ₹ 14.77000 | ₹ 14,94,724.00 |
| 50600 | ₹ 15.00000 | ₹ 7,59,000.00 |
| 26400 | ₹ 15.23000 | ₹ 4,02,072.00 |
| 11000 | ₹ 15.61000 | ₹ 1,71,710.00 |
| 8800 | ₹ 15.85000 | ₹ 1,39,480.00 |
| 6600 | ₹ 16.27000 | ₹ 1,07,382.00 |
| 4400 | ₹ 16.52000 | ₹ 72,688.00 |
| 2200 | ₹ 16.77000 | ₹ 36,894.00 |

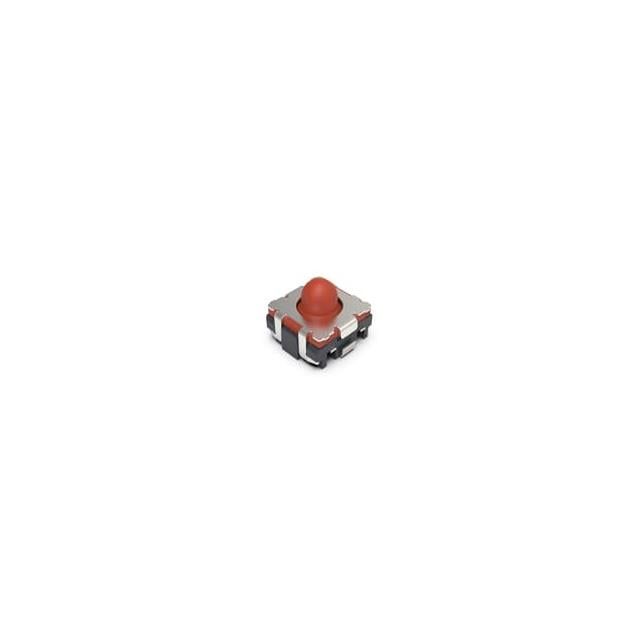

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SKSU | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 16VDC | |
| Activator Mechanism Type | Spherical | |
| Attachment Mounting Style | Surface Mount | |
| Vertical Activator PCB Height | 4.34mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | J Lead | |
| Dimensional Outline Drawing | 5.40mm x 5.30mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 510gf | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 90°C |
Description
Rises 4.34mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Spherical actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 16VDC. Provides Non-Illuminated brightness for improved visibility. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Surface Mount for structural stability. Pressure applied 510gf for ergonomic or mechanical operations. Temperature range -40°C ~ 90°C for environmental conditions impacting thermal efficiency. Shape outline 5.40mm x 5.30mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component SKSU. Modification in operation mode Off-Mom for electrical optimization. Type of termination J Lead for connector or device.
