Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100800 | ₹ 13.63000 | ₹ 13,73,904.00 |
| 50400 | ₹ 13.84000 | ₹ 6,97,536.00 |
| 26400 | ₹ 14.05000 | ₹ 3,70,920.00 |
| 12000 | ₹ 14.41000 | ₹ 1,72,920.00 |
| 9600 | ₹ 14.63000 | ₹ 1,40,448.00 |
| 7200 | ₹ 15.01000 | ₹ 1,08,072.00 |
| 4800 | ₹ 15.25000 | ₹ 73,200.00 |
| 2400 | ₹ 15.48000 | ₹ 37,152.00 |

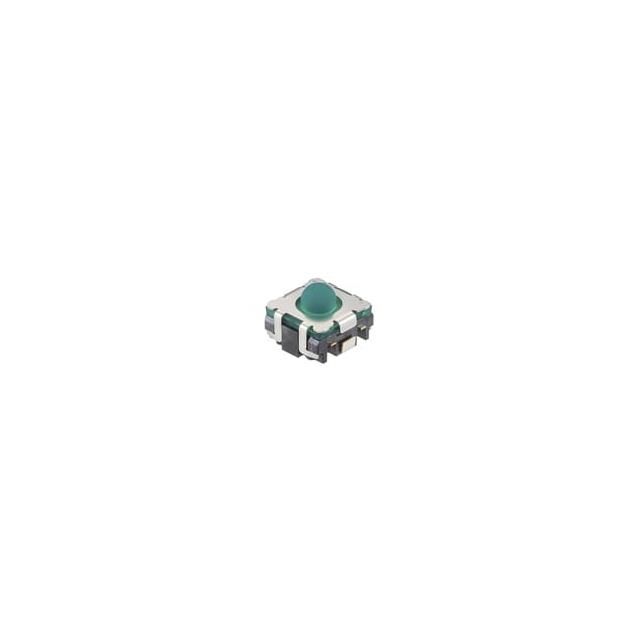

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SKSU | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 16VDC | |
| Activator Mechanism Type | Standard | |
| Attachment Mounting Style | Surface Mount, Right Angle | |
| Vertical Activator PCB Height | 3.85mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | J Lead | |
| Dimensional Outline Drawing | 5.30mm x 5.40mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 357gf | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 90°C |
Description
Rises 3.85mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Standard actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 16VDC. Provides Non-Illuminated brightness for improved visibility. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Surface Mount, Right Angle for structural stability. Pressure applied 357gf for ergonomic or mechanical operations. Temperature range -40°C ~ 90°C for environmental conditions impacting thermal efficiency. Shape outline 5.30mm x 5.40mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component SKSU. Modification in operation mode Off-Mom for electrical optimization. Type of termination J Lead for connector or device.
