Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 6,114.30000 | ₹ 6,114.30 |
| 10 | ₹ 5,503.76000 | ₹ 55,037.60 |
| 25 | ₹ 5,299.95000 | ₹ 1,32,498.75 |
| 50 | ₹ 5,160.22000 | ₹ 2,58,011.00 |
| 100 | ₹ 5,054.31000 | ₹ 5,05,431.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | A22NW | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Device Type Classification | Standard | |
| Electrical Pathway | DPST-NO | |
| Switch Position Options | 3 | |
| Switch Operation Mode | On-Off-Off, Off-Off-On | |
| Ampere Capacity Rating | 10A (AC), 8A (DC) | |
| AC Voltage Max | 120 V | |
| DC Voltage Max | 24 V | |
| Backlighting Feature | Illuminated | |
| LED Illumination Shades | LED, Green | |
| Standard Illumination Volts | 100 ~ 120 VAC | |
| Attachment Mounting Style | Panel Mount | |
| Lead Termination Type | Spring Terminal | |
| Mount Cutout Specs | Circular - 22.30mm Dia | |
| Dust Water Resistance Rating | IP66 - Dust Tight, Water Resistant | |

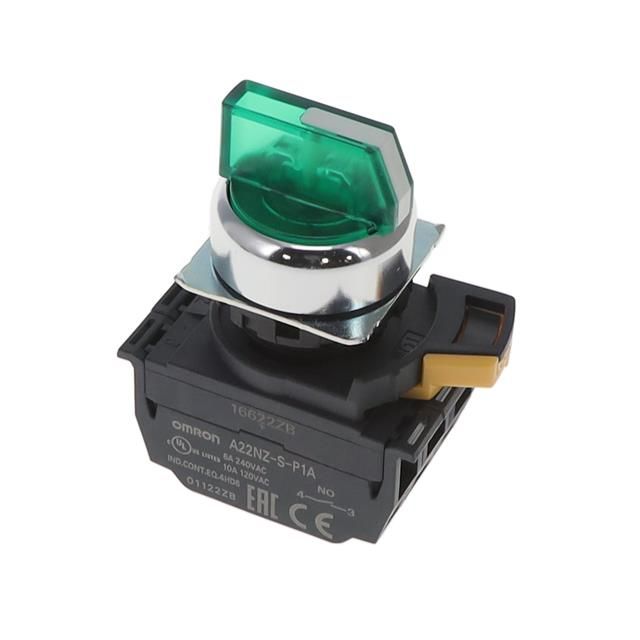

| Key Product Highlights | Bezel - Round, Green Knob | |
| Ambient Temp Range | -25°C ~ 55°C |
Description
Configured for circuit type described as DPST-NO. Sets the ampere rating to 10A (AC), 8A (DC). Equipped with features categorized as Bezel - Round, Green Knob. Provides Illuminated brightness for improved visibility. Includes LED, Green colored LEDs for effective signaling. Works at a standard voltage of 100 ~ 120 VAC for illumination. Rated with IP IP66 - Dust Tight, Water Resistant to safeguard against dust and moisture penetration. Mounting configuration Panel Mount for structural stability. Overall number of positions 3 for switches or mechanical components. Temperature range -25°C ~ 55°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 22.30mm Dia for accurate mounting. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component A22NW. Modification in operation mode On-Off-Off, Off-Off-On for electrical optimization. Type of termination Spring Terminal for connector or device. Type classification Standard for specifications. The highest AC voltage specification 120 V for the device. The highest DC voltage specification 24 V for components.
