Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1520 | ₹ 13,140.29000 | ₹ 1,99,73,240.80 |
| 600 | ₹ 13,208.03000 | ₹ 79,24,818.00 |
| 200 | ₹ 13,275.76000 | ₹ 26,55,152.00 |
| 80 | ₹ 13,343.49000 | ₹ 10,67,479.20 |
| 40 | ₹ 15,590.01000 | ₹ 6,23,600.40 |
Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 40 | ₹ 13,546.69000 | ₹ 5,41,867.60 |
| 30 | ₹ 13,823.48000 | ₹ 4,14,704.40 |
| 20 | ₹ 19,643.19000 | ₹ 3,92,863.80 |
| 10 | ₹ 37,104.10000 | ₹ 3,71,041.00 |
Stock:
Distributor: 69
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 40 | ₹ 13,546.69000 | ₹ 5,41,867.60 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 40 | ₹ 13,635.14000 | ₹ 5,45,405.60 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | DS | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Switch Position Options | 2 | |
| Rotation Stop Positions | Fixed | |
| Switch Deck Layers | 1 | |
| Poles per Switch Layer | 3 | |
| Circuits per Layer | 3PDT | |
| Switch Activation Sequence | Not Specified | |
| Ampere Capacity Rating | 1A | |
| AC Voltage Max | - | |
| DC Voltage Max | 32 V | |
| Activator Mechanism Type | Knob | |
| Activator Arm Length | - | |
| Switch Throw Angle | 22.5° | |
| Pin Alloy Composition | Copper | |
| Pin Surface Treatment | Silver | |
| Attachment Mounting Style | Panel Mount | |
| Lead Termination Type | Connector | |
| Key Product Highlights | - | |
| Rear Panel Extension | - |
Description

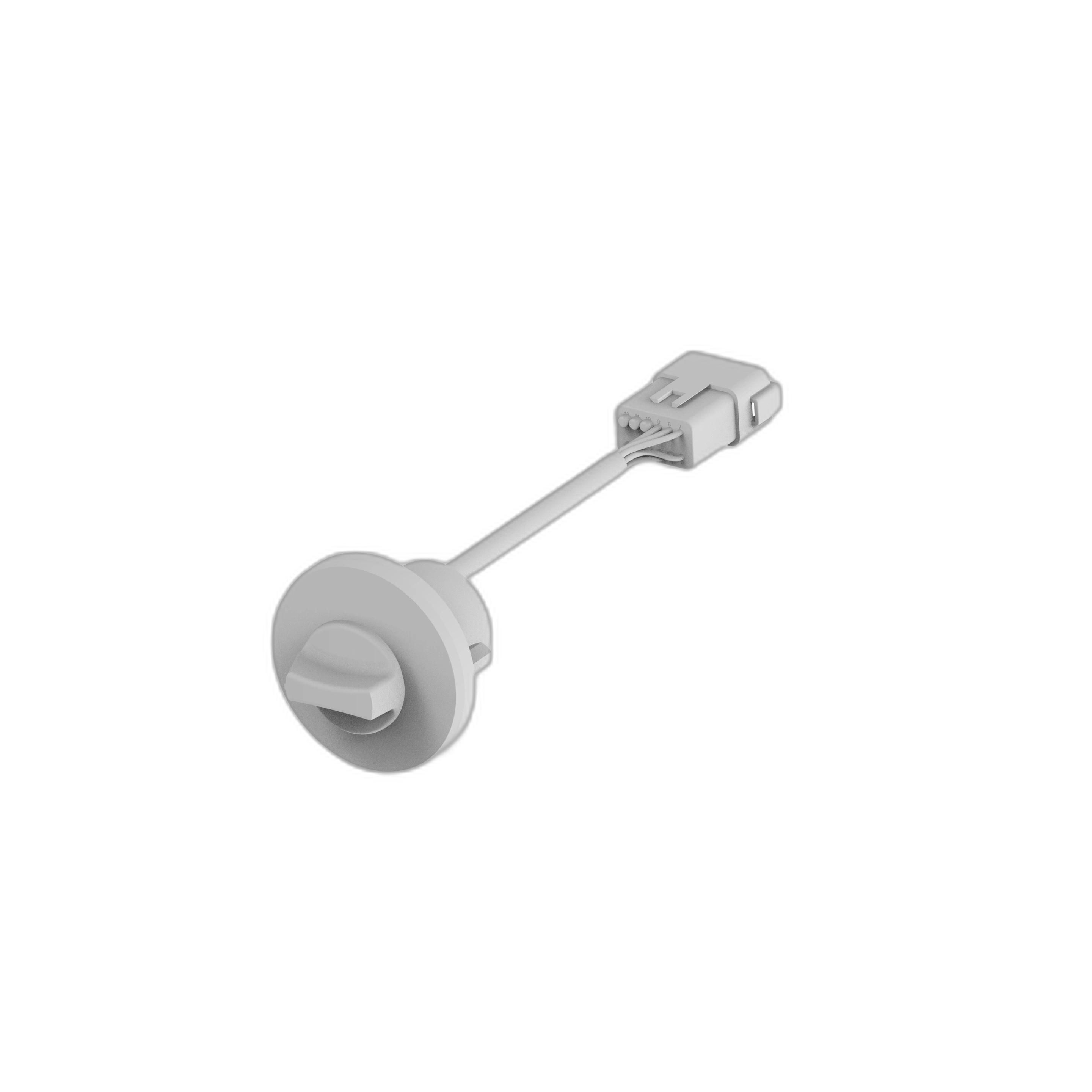

Incorporates a Knob actuator type to fulfill the desired function. Delivers a throw angle of 22.5° for efficient switching operation. Features 3PDT circuits per layer in systems with multiple controls. Includes contact finish plated at Silver to improve conductivity. Constructed from the contact material known as Copper. Displays the contact timing characteristics defined as Not Specified. Sets the ampere rating to 1A. Equipped with Fixed index stops for precise positioning. Mounting configuration Panel Mount for structural stability. Total decks 1 used in mechanical or card-based systems. Number of poles per layer 3 for multi-layer switches or circuits. Overall number of positions 2 for switches or mechanical components. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component DS. Type of termination Connector for connector or device. The highest DC voltage specification 32 V for components.
