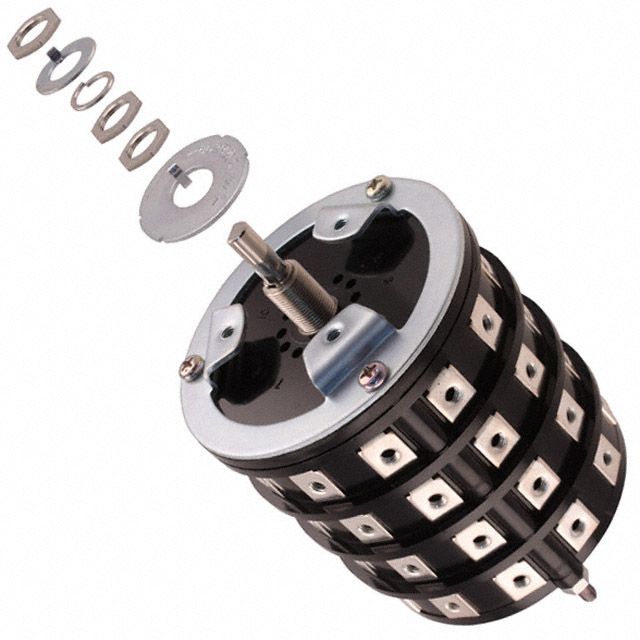

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PS | |
| IC Encapsulation Type | BoxBox | |
| Availability Status | Obsolete | |
| Switch Position Options | 2 ~ 11 | |
| Rotation Stop Positions | Adjustable | |
| Switch Deck Layers | 4 | |
| Poles per Switch Layer | 1 | |
| Circuits per Layer | SP11T | |
| Switch Activation Sequence | Non-Shorting (BBM) | |
| Ampere Capacity Rating | 30A (AC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | - | |
| Activator Mechanism Type | Flatted (6mm Dia) | |
| Activator Arm Length | 15.00mm | |
| Switch Throw Angle | 30° | |
| Pin Alloy Composition | Silver Alloy | |
| Pin Surface Treatment | - | |
| Attachment Mounting Style | Panel Mount | |
| Lead Termination Type | Screw Terminal | |
| Key Product Highlights | - | |
| Rear Panel Extension | 99.00mm |
Description
Engineered with an actuator length of 15.00mm to provide sufficient interaction range. Incorporates a Flatted (6mm Dia) actuator type to fulfill the desired function. Delivers a throw angle of 30° for efficient switching operation. Features SP11T circuits per layer in systems with multiple controls. Constructed from the contact material known as Silver Alloy. Displays the contact timing characteristics defined as Non-Shorting (BBM). Sets the ampere rating to 30A (AC). Details the depth behind the panel noted at 99.00mm. Equipped with Adjustable index stops for precise positioning. Mounting configuration Panel Mount for structural stability. Total decks 4 used in mechanical or card-based systems. Number of poles per layer 1 for multi-layer switches or circuits. Overall number of positions 2 ~ 11 for switches or mechanical components. Type of housing BoxBox for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component PS. Type of termination Screw Terminal for connector or device. The highest AC voltage specification 125 V for the device.
