Description

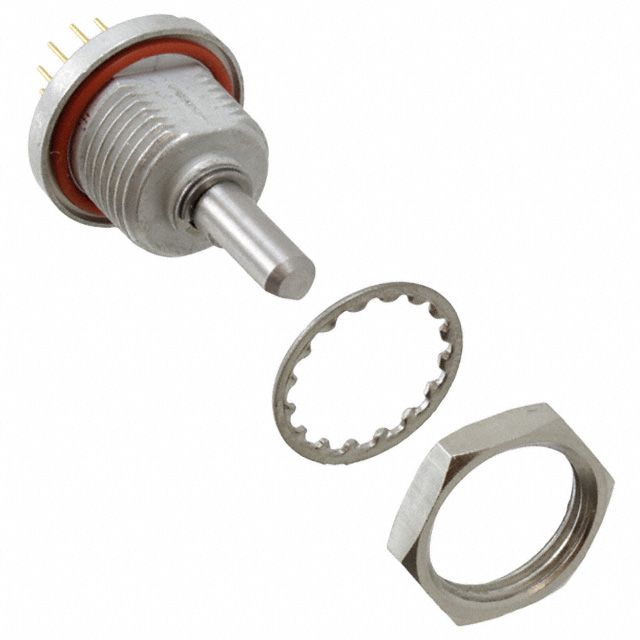

Engineered with an actuator length of 7.98mm to provide sufficient interaction range. Incorporates a Flatted (3.17mm Dia) actuator type to fulfill the desired function. Delivers a throw angle of 36° for efficient switching operation. Features SP10T circuits per layer in systems with multiple controls. Includes contact finish plated at Gold to improve conductivity. Constructed from the contact material known as Silver Tin Oxide (AgSnO). Displays the contact timing characteristics defined as Non-Shorting (BBM). Sets the ampere rating to 50mA (AC), 200mA (DC). Details the depth behind the panel noted at 4.57mm. Equipped with features categorized as Shaft and Panel Sealed. Equipped with Fixed index stops for precise positioning. Mounting configuration Panel Mount, Through Hole for structural stability. Total decks 1 used in mechanical or card-based systems. Number of poles per layer 1 for multi-layer switches or circuits. Overall number of positions 10 for switches or mechanical components. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component 77. Type of termination PC Pin for connector or device. The highest AC voltage specification 115 V for the device. The highest DC voltage specification 28 V for components.
