Description

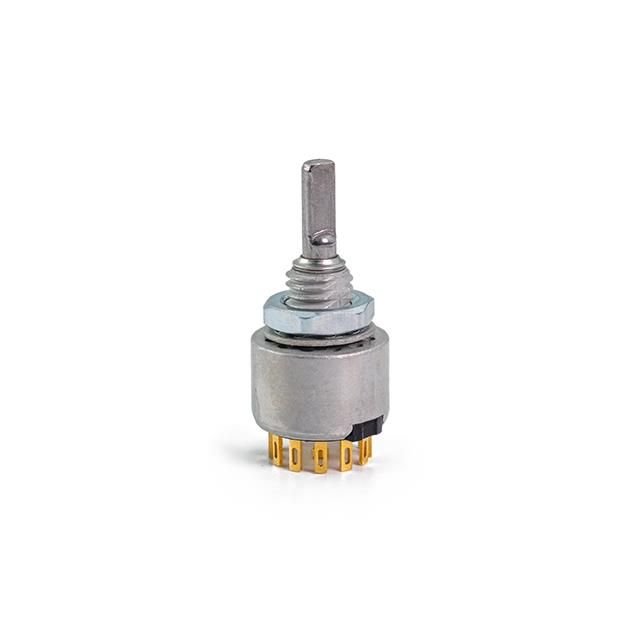

Engineered with an actuator length of 9.53mm to provide sufficient interaction range. Incorporates a Flatted (3.17mm Dia) actuator type to fulfill the desired function. Delivers a throw angle of 36° for efficient switching operation. Features SP10T circuits per layer in systems with multiple controls. Includes contact finish plated at Silver to improve conductivity. Constructed from the contact material known as Brass. Displays the contact timing characteristics defined as Non-Shorting (BBM). Sets the ampere rating to 200mA (AC/DC). Details the depth behind the panel noted at 12.19mm. Equipped with features categorized as Shaft and Panel Sealed. Equipped with Adjustable index stops for precise positioning. Mounting configuration Panel Mount for structural stability. Total decks 1 used in mechanical or card-based systems. Number of poles per layer 1 for multi-layer switches or circuits. Overall number of positions 2 ~ 10 for switches or mechanical components. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component 56. Type of termination Solder Lug for connector or device. The highest AC voltage specification 115 V for the device. The highest DC voltage specification 30 V for components.
