Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 1,120.51000 | ₹ 5,60,255.00 |
| 250 | ₹ 1,150.77000 | ₹ 2,87,692.50 |
| 100 | ₹ 1,246.00000 | ₹ 1,24,600.00 |
| 50 | ₹ 1,570.85000 | ₹ 78,542.50 |
| 25 | ₹ 1,618.02000 | ₹ 40,450.50 |
| 10 | ₹ 1,667.86000 | ₹ 16,678.60 |
| 1 | ₹ 1,869.00000 | ₹ 1,869.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 1,637.49000 | ₹ 81,874.50 |
| 25 | ₹ 1,749.91000 | ₹ 43,747.75 |
| 10 | ₹ 1,909.72000 | ₹ 19,097.20 |
| 5 | ₹ 2,039.75000 | ₹ 10,198.75 |
| 1 | ₹ 2,375.78000 | ₹ 2,375.78 |

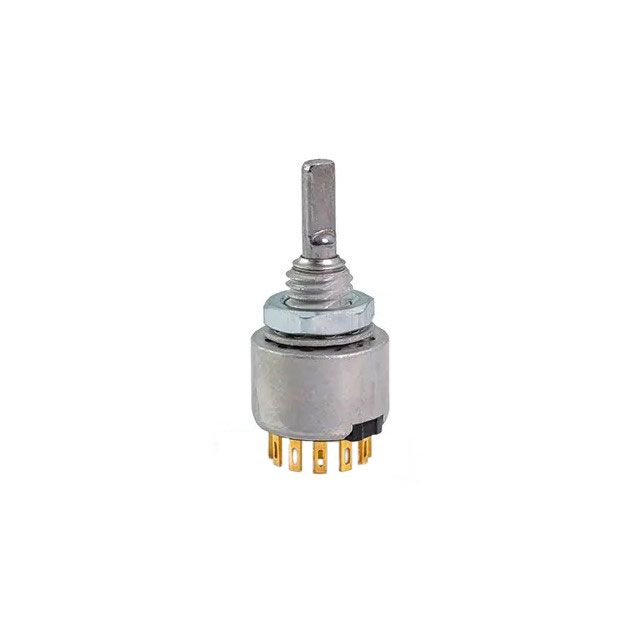

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 56 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Switch Position Options | 10 | |
| Rotation Stop Positions | Fixed | |
| Switch Deck Layers | 1 | |
| Poles per Switch Layer | 1 | |
| Circuits per Layer | SP10T | |
| Switch Activation Sequence | Shorting (MBB) | |
| Ampere Capacity Rating | 200mA (AC/DC) | |
| AC Voltage Max | 115 V | |
| DC Voltage Max | 30 V | |
| Activator Mechanism Type | Screwdriver Slot | |
| Activator Arm Length | 3.18mm | |
| Switch Throw Angle | 36° | |
| Pin Alloy Composition | Brass | |
| Pin Surface Treatment | Silver | |
| Attachment Mounting Style | Panel Mount, Through Hole | |
| Lead Termination Type | PC Pin | |
| Key Product Highlights | - | |
| Rear Panel Extension | 9.58mm |
Description
Engineered with an actuator length of 3.18mm to provide sufficient interaction range. Incorporates a Screwdriver Slot actuator type to fulfill the desired function. Delivers a throw angle of 36° for efficient switching operation. Features SP10T circuits per layer in systems with multiple controls. Includes contact finish plated at Silver to improve conductivity. Constructed from the contact material known as Brass. Displays the contact timing characteristics defined as Shorting (MBB). Sets the ampere rating to 200mA (AC/DC). Details the depth behind the panel noted at 9.58mm. Equipped with Fixed index stops for precise positioning. Mounting configuration Panel Mount, Through Hole for structural stability. Total decks 1 used in mechanical or card-based systems. Number of poles per layer 1 for multi-layer switches or circuits. Overall number of positions 10 for switches or mechanical components. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component 56. Type of termination PC Pin for connector or device. The highest AC voltage specification 115 V for the device. The highest DC voltage specification 30 V for components.
