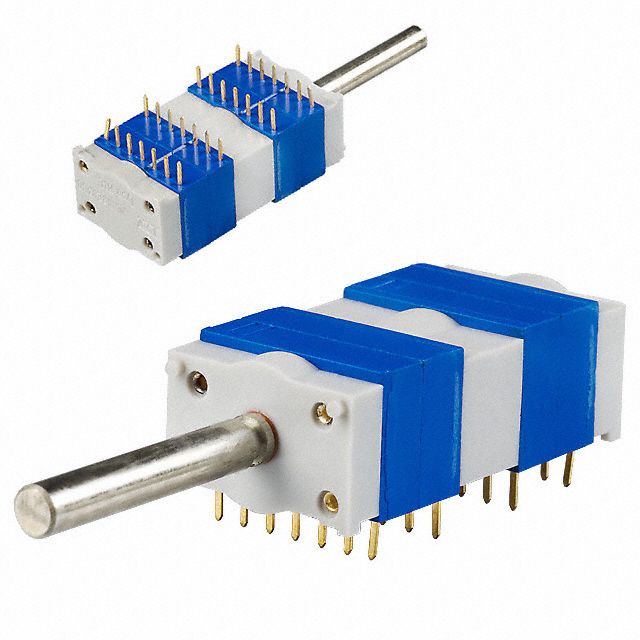

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | MIL | |
| IC Encapsulation Type | - | |
| Availability Status | Obsolete | |
| Switch Position Options | 12 | |
| Rotation Stop Positions | Fixed | |
| Switch Deck Layers | 2 | |
| Poles per Switch Layer | 1 | |
| Circuits per Layer | SP12T | |
| Switch Activation Sequence | Non-Shorting (BBM) | |
| Ampere Capacity Rating | 20mA (AC/DC) | |
| AC Voltage Max | 50 V | |
| DC Voltage Max | 50 V | |
| Activator Mechanism Type | Round (4mm Dia) | |
| Activator Arm Length | 25.00mm | |
| Switch Throw Angle | 30° | |
| Pin Alloy Composition | Brass | |
| Pin Surface Treatment | Gold | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Lead Termination Type | PC Pin | |
| Key Product Highlights | Sealed - Fully | |
| Rear Panel Extension | 35.56mm |
Description
Engineered with an actuator length of 25.00mm to provide sufficient interaction range. Incorporates a Round (4mm Dia) actuator type to fulfill the desired function. Delivers a throw angle of 30° for efficient switching operation. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Features SP12T circuits per layer in systems with multiple controls. Includes contact finish plated at Gold to improve conductivity. Constructed from the contact material known as Brass. Displays the contact timing characteristics defined as Non-Shorting (BBM). Sets the ampere rating to 20mA (AC/DC). Details the depth behind the panel noted at 35.56mm. Equipped with features categorized as Sealed - Fully. Equipped with Fixed index stops for precise positioning. Mounting configuration Through Hole, Right Angle for structural stability. Total decks 2 used in mechanical or card-based systems. Number of poles per layer 1 for multi-layer switches or circuits. Overall number of positions 12 for switches or mechanical components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component MIL. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination PC Pin for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. The highest AC voltage specification 50 V for the device. The highest DC voltage specification 50 V for components.
