Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 432.21000 | ₹ 4,32,210.00 |
| 600 | ₹ 446.39000 | ₹ 2,67,834.00 |
| 400 | ₹ 457.95000 | ₹ 1,83,180.00 |
| 200 | ₹ 478.31000 | ₹ 95,662.00 |
| 25 | ₹ 544.11000 | ₹ 13,602.75 |
| 10 | ₹ 575.39000 | ₹ 5,753.90 |
| 1 | ₹ 660.08000 | ₹ 660.08 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |

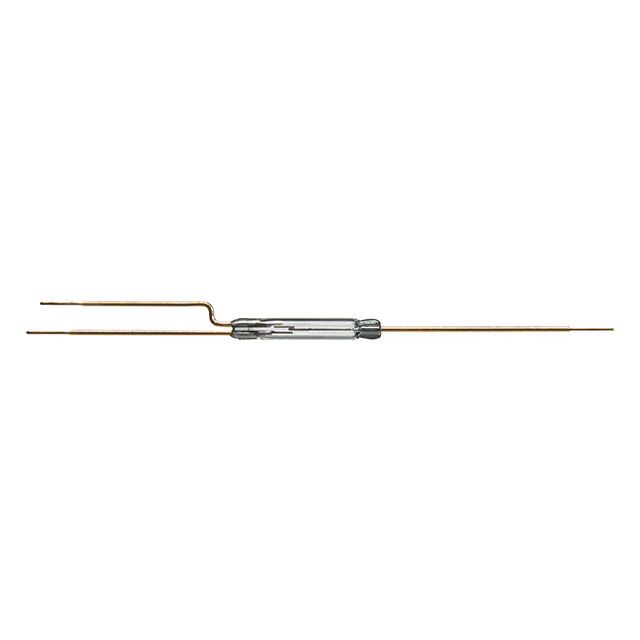

| Device Type Classification | Glass Body Reed | |
| Electrical Pathway | SPDT | |
| Functional Operating Range | 15 ~ 20AT | |
| Deactivation Range | 6AT | |
| Switch Transition Amps | 1A (AC/DC) | |
| AC Switching Voltage | 140 V | |
| DC Switching Voltage | 150 V | |
| Nominal Power Rating | 20W | |
| Activation Response Time | 2.5 ms | |
| Reset Response Duration | 2.5 ms | |
| Attachment Mounting Style | Surface Mount | |
| Lead Termination Type | Axial | |
| Full Overall Length | 2.165" (55.00mm) | |
| Main Body Dimensions | 0.087" Dia x 0.571" L (2.20mm x 14.50mm) | |
| PCB Clearance Height | - | |
| Ambient Temp Range | -40°C ~ 130°C | |
| Storage Capacity Electrical | - | |
| Continuous Current Rating | 2A (AC/DC) |
Description
Configured for circuit type described as SPDT. Offers a current rating of 2A (AC/DC). Operates with switching current characterized as 1A (AC/DC). The complete length 2.165" (55.00mm) for thorough dimensional reference. Mounting configuration Surface Mount for structural stability. Operational range 15 ~ 20AT essential for device functionality. Time duration 2.5 ms for the response upon activation. Temperature range -40°C ~ 130°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Energy requirement 20W for device functionality. Designated power 20W to meet compliance standards. Product status Active concerning availability and lifecycle. Sensitivity level 6AT for switches or sensors. Duration required 2.5 ms for reset and reaction. Measurements of the main body 0.087" Dia x 0.571" L (2.20mm x 14.50mm) for compatibility with devices. Type of termination Axial for connector or device. Type classification Glass Body Reed for specifications. AC voltage employed for switching in circuits 140 V. DC voltage used for switching in circuits 150 V.
