Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 12500 | ₹ 53.21000 | ₹ 6,65,125.00 |
| 7500 | ₹ 54.97000 | ₹ 4,12,275.00 |
| 5000 | ₹ 56.40000 | ₹ 2,82,000.00 |
| 2500 | ₹ 58.94000 | ₹ 1,47,350.00 |
| 1000 | ₹ 46.25000 | ₹ 46,250.00 |
| 500 | ₹ 48.88000 | ₹ 24,440.00 |
| 250 | ₹ 51.75000 | ₹ 12,937.50 |
| 100 | ₹ 55.87000 | ₹ 5,587.00 |
| 25 | ₹ 62.63000 | ₹ 1,565.75 |
| 10 | ₹ 67.34000 | ₹ 673.40 |
| 1 | ₹ 79.17000 | ₹ 79.17 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |

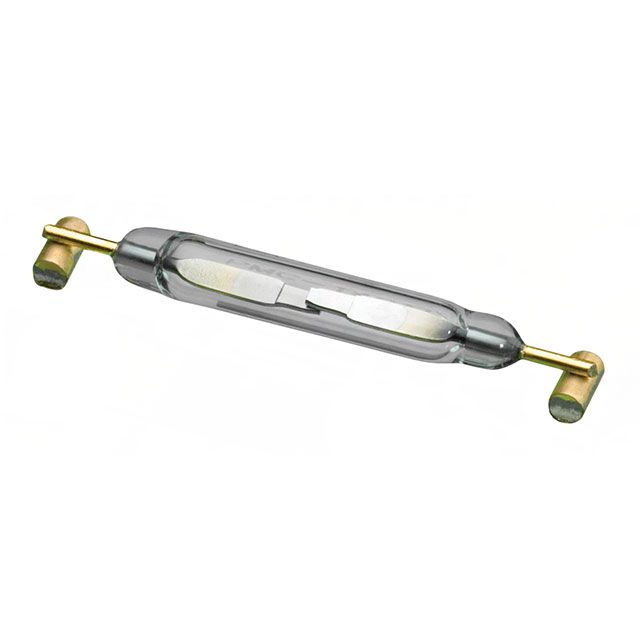

| Device Type Classification | Glass Body Reed | |
| Electrical Pathway | SPST-NO | |
| Functional Operating Range | 10 ~ 15AT | |
| Deactivation Range | 4AT | |
| Switch Transition Amps | 1A (AC/DC) | |
| AC Switching Voltage | 140 V | |
| DC Switching Voltage | 200 V | |
| Nominal Power Rating | 10W | |
| Activation Response Time | 1 ms | |
| Reset Response Duration | 0.4 ms | |
| Attachment Mounting Style | Surface Mount | |
| Lead Termination Type | Axial | |
| Full Overall Length | 0.724" (18.40mm) | |
| Main Body Dimensions | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) | |
| PCB Clearance Height | - | |
| Ambient Temp Range | -60°C ~ 155°C | |
| Storage Capacity Electrical | - | |
| Continuous Current Rating | 1.2A (AC/DC) |
Description
Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Configured for circuit type described as SPST-NO. Offers a current rating of 1.2A (AC/DC). Operates with switching current characterized as 1A (AC/DC). The complete length 0.724" (18.40mm) for thorough dimensional reference. Mounting configuration Surface Mount for structural stability. Operational range 10 ~ 15AT essential for device functionality. Time duration 1 ms for the response upon activation. Temperature range -60°C ~ 155°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Energy requirement 10W for device functionality. Designated power 10W to meet compliance standards. Product status Active concerning availability and lifecycle. Sensitivity level 4AT for switches or sensors. Duration required 0.4 ms for reset and reaction. Measurements of the main body 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) for compatibility with devices. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination Axial for connector or device. Type classification Glass Body Reed for specifications. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. AC voltage employed for switching in circuits 140 V. DC voltage used for switching in circuits 200 V.
