Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 4000 | ₹ 60.21000 | ₹ 2,40,840.00 |
| 2000 | ₹ 63.14000 | ₹ 1,26,280.00 |
| 500 | ₹ 81.15000 | ₹ 40,575.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CT10 | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |

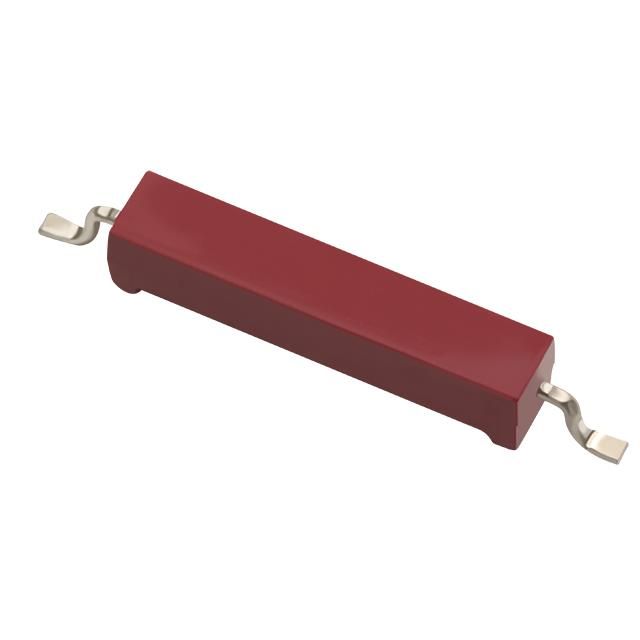

| Device Type Classification | Molded Body Reed | |
| Electrical Pathway | SPST-NO | |
| Functional Operating Range | 25 ~ 40AT | |
| Deactivation Range | - | |
| Switch Transition Amps | 500mA (AC/DC) | |
| AC Switching Voltage | 140 V | |
| DC Switching Voltage | 200 V | |
| Nominal Power Rating | 10W | |
| Activation Response Time | - | |
| Reset Response Duration | - | |
| Attachment Mounting Style | Surface Mount | |
| Lead Termination Type | Gull Wing | |
| Full Overall Length | 0.640" (16.26mm) | |
| Main Body Dimensions | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) | |
| PCB Clearance Height | 0.115" (2.92mm) | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Storage Capacity Electrical | - | |
| Continuous Current Rating | 500mA (DC) |
Description
Configured for circuit type described as SPST-NO. Offers a current rating of 500mA (DC). Operates with switching current characterized as 500mA (AC/DC). Maintains a height of 0.115" (2.92mm) above the board to accommodate assembly and clearance requirements. The complete length 0.640" (16.26mm) for thorough dimensional reference. Mounting configuration Surface Mount for structural stability. Operational range 25 ~ 40AT essential for device functionality. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Energy requirement 10W for device functionality. Designated power 10W to meet compliance standards. Product status Active concerning availability and lifecycle. Classification series for the product or component CT10. Measurements of the main body 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) for compatibility with devices. Type of termination Gull Wing for connector or device. Type classification Molded Body Reed for specifications. AC voltage employed for switching in circuits 140 V. DC voltage used for switching in circuits 200 V.
