Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CM5 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |

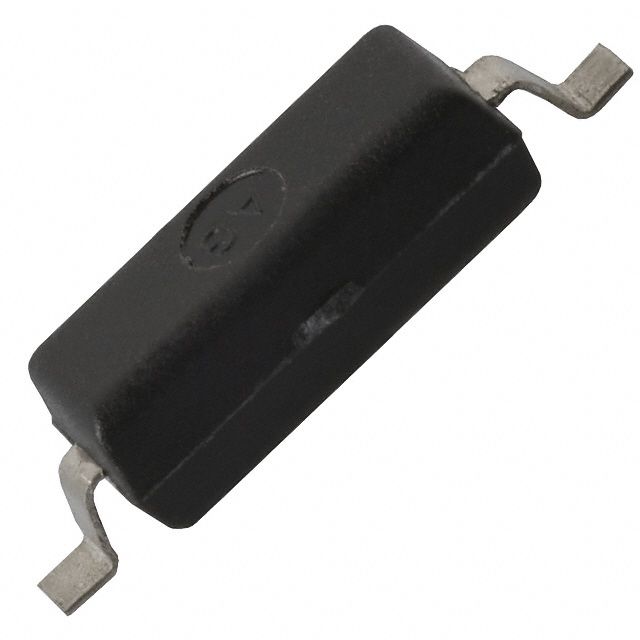

| Device Type Classification | Molded Body Reed | |
| Electrical Pathway | SPST-NO | |
| Functional Operating Range | 10 ~ 30AT | |
| Deactivation Range | - | |
| Switch Transition Amps | 250mA (AC/DC) | |
| AC Switching Voltage | 175 V | |
| DC Switching Voltage | 175 V | |
| Nominal Power Rating | 5VA | |
| Activation Response Time | 0.4 ms | |
| Reset Response Duration | 0.1 ms | |
| Attachment Mounting Style | Surface Mount | |
| Lead Termination Type | Gull Wing | |
| Full Overall Length | 0.394" (10.00mm) | |
| Main Body Dimensions | 0.265" L x 0.115" W x 0.094" H (6.73mm x 2.92mm x 2.40mm) | |
| PCB Clearance Height | 0.120" (3.05mm) | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Storage Capacity Electrical | 0.3 pF | |
| Continuous Current Rating | 500mA (AC/DC) |
Description
Provides a capacitance level rated at 0.3 pF to maintain circuit stability. Configured for circuit type described as SPST-NO. Offers a current rating of 500mA (AC/DC). Operates with switching current characterized as 250mA (AC/DC). Maintains a height of 0.120" (3.05mm) above the board to accommodate assembly and clearance requirements. The complete length 0.394" (10.00mm) for thorough dimensional reference. Mounting configuration Surface Mount for structural stability. Operational range 10 ~ 30AT essential for device functionality. Time duration 0.4 ms for the response upon activation. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Energy requirement 5VA for device functionality. Designated power 5VA to meet compliance standards. Product status Obsolete concerning availability and lifecycle. Duration required 0.1 ms for reset and reaction. Classification series for the product or component CM5. Measurements of the main body 0.265" L x 0.115" W x 0.094" H (6.73mm x 2.92mm x 2.40mm) for compatibility with devices. Type of termination Gull Wing for connector or device. Type classification Molded Body Reed for specifications. AC voltage employed for switching in circuits 175 V. DC voltage used for switching in circuits 175 V.
