Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 7840 | ₹ 162.87000 | ₹ 12,76,900.80 |
| 5040 | ₹ 169.99000 | ₹ 8,56,749.60 |
| 2800 | ₹ 170.88000 | ₹ 4,78,464.00 |
| 1120 | ₹ 173.55000 | ₹ 1,94,376.00 |
| 560 | ₹ 175.33000 | ₹ 98,184.80 |
| 250 | ₹ 186.01000 | ₹ 46,502.50 |
| 100 | ₹ 197.58000 | ₹ 19,758.00 |
| 10 | ₹ 282.13000 | ₹ 2,821.30 |
Stock:
Distributor: 115
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 7840 | ₹ 162.87000 | ₹ 12,76,900.80 |
| 5040 | ₹ 169.99000 | ₹ 8,56,749.60 |
| 2800 | ₹ 170.88000 | ₹ 4,78,464.00 |
| 1120 | ₹ 173.55000 | ₹ 1,94,376.00 |
| 560 | ₹ 175.33000 | ₹ 98,184.80 |
| 250 | ₹ 186.01000 | ₹ 46,502.50 |
| 100 | ₹ 197.58000 | ₹ 19,758.00 |
| 10 | ₹ 282.13000 | ₹ 2,821.30 |

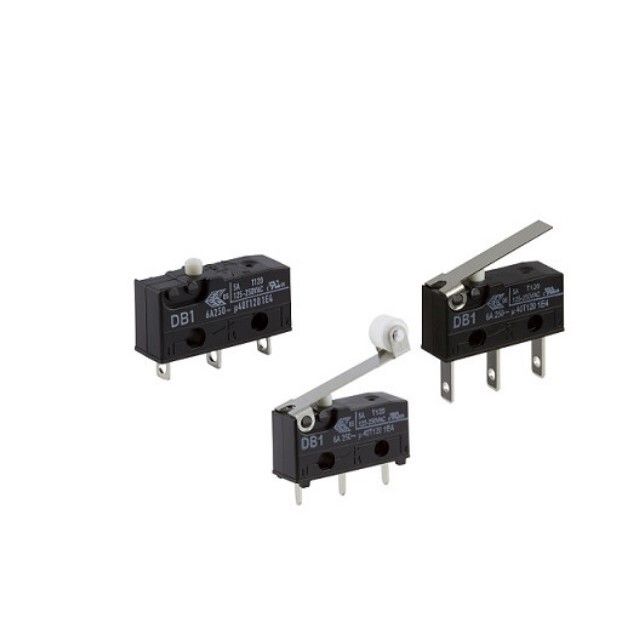

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | DB | |
| IC Encapsulation Type | BulkBulk | |
| Availability Status | Active | |
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-Mom | |
| Ampere Capacity Rating | 5A (AC), 1A (DC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | 48 V | |
| Activator Mechanism Type | Lever, Roller | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Solder Lug | |
| Dust Water Resistance Rating | IP50 - Dust Protected | |
| Key Product Highlights | - | |
| Activation Pressure Required | 55gf | |
| Detachment Pressure | - | |
| Functional Position Setting | 0.638" (16.2mm) | |
| Initial Travel Distance | 0.178" (4.5mm) | |
| Switch Travel Difference | 0.025" (0.6mm) | |
| Excess Travel Distance | 0.079" (2.0mm) | |
| Physical Durability Cycles | 15,000,000 Cycles | |
| Cycle Durability Rating | 6,000 Cycles | |
| Ambient Temp Range | -40°C ~ 120°C |
Description
Incorporates a Lever, Roller actuator type to fulfill the desired function. Configured for circuit type described as SPDT. Sets the ampere rating to 5A (AC), 1A (DC). Offers a measurement of the differential travel at 0.025" (0.6mm). Indicates electrical lifespan evaluated at 6,000 Cycles. Rated with IP IP50 - Dust Protected to safeguard against dust and moisture penetration. Mechanical strength 15,000,000 Cycles cycles for durability. Mounting configuration Chassis Mount for structural stability. Pressure applied 55gf for ergonomic or mechanical operations. Position configuration 0.638" (16.2mm) for correct device alignment. Temperature range -40°C ~ 120°C for environmental conditions impacting thermal efficiency. Additional travel distance 0.079" (2.0mm) for mechanical safety and longevity. Type of housing BulkBulk for safeguarding or transporting components. Initial distance 0.178" (4.5mm) for mechanical control or switch activation. Product status Active concerning availability and lifecycle. Classification series for the product or component DB. Modification in operation mode On-Mom for electrical optimization. Type of termination Solder Lug for connector or device. The highest AC voltage specification 125 V for the device. The highest DC voltage specification 48 V for components.
