Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 7,404.09000 | ₹ 37,02,045.00 |
| 250 | ₹ 7,774.29000 | ₹ 19,43,572.50 |
| 100 | ₹ 8,144.50000 | ₹ 8,14,450.00 |
| 25 | ₹ 8,514.70000 | ₹ 2,12,867.50 |
| 10 | ₹ 8,884.91000 | ₹ 88,849.10 |
| 1 | ₹ 9,255.11000 | ₹ 9,255.11 |
Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 8,117.69000 | ₹ 4,05,884.50 |
| 25 | ₹ 8,241.40000 | ₹ 2,06,035.00 |
| 15 | ₹ 8,366.89000 | ₹ 1,25,503.35 |
| 10 | ₹ 8,851.94000 | ₹ 88,519.40 |
| 5 | ₹ 9,116.27000 | ₹ 45,581.35 |
| 1 | ₹ 9,851.41000 | ₹ 9,851.41 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 11,002.76000 | ₹ 11,002.76 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 11,498.80000 | ₹ 11,498.80 |
| 5 | ₹ 10,380.96000 | ₹ 51,904.80 |
| 10 | ₹ 10,178.04000 | ₹ 1,01,780.40 |
| 25 | ₹ 9,562.16000 | ₹ 2,39,054.00 |
| 50 | ₹ 8,944.50000 | ₹ 4,47,225.00 |

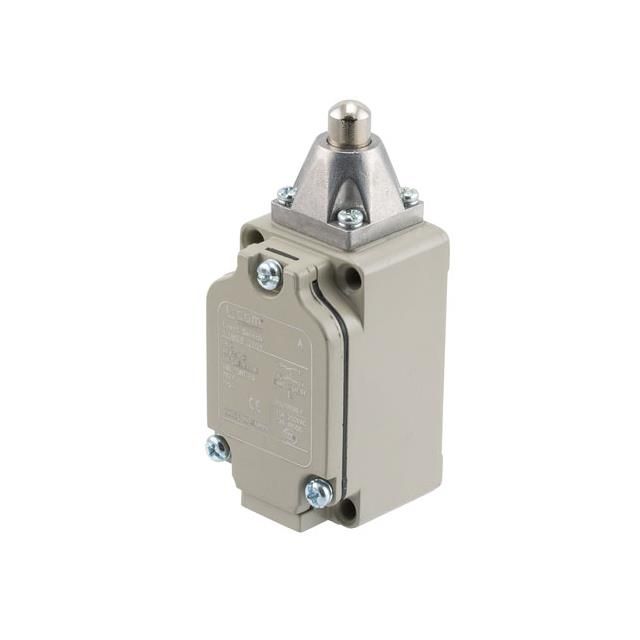

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Electrical Pathway | DPST-NO/NC | |
| Switch Operation Mode | On-Off, Off-On | |
| Ampere Capacity Rating | 10A (AC/DC) | |
| AC Voltage Max | 250 V | |
| DC Voltage Max | 250 V | |
| Activator Mechanism Type | Round (Pin Plunger) | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Screw Terminal | |
| Dust Water Resistance Rating | IP65 - Dust Tight, Water Resistant | |
| Key Product Highlights | - | |
| Activation Pressure Required | 2720gf | |
| Detachment Pressure | 910gf | |
| Functional Position Setting | 1.339" (34.0mm) | |
| Initial Travel Distance | - | |
| Switch Travel Difference | - | |
| Excess Travel Distance | 0.252" (6.4mm) | |
| Physical Durability Cycles | 15,000,000 Cycles | |
| Cycle Durability Rating | 500,000 Cycles | |
| Ambient Temp Range | -25°C ~ 80°C |
Description
Incorporates a Round (Pin Plunger) actuator type to fulfill the desired function. Configured for circuit type described as DPST-NO/NC. Sets the ampere rating to 10A (AC/DC). Indicates electrical lifespan evaluated at 500,000 Cycles. Rated with IP IP65 - Dust Tight, Water Resistant to safeguard against dust and moisture penetration. Mechanical strength 15,000,000 Cycles cycles for durability. Mounting configuration Chassis Mount for structural stability. Pressure applied 2720gf for ergonomic or mechanical operations. Position configuration 1.339" (34.0mm) for correct device alignment. Temperature range -25°C ~ 80°C for environmental conditions impacting thermal efficiency. Additional travel distance 0.252" (6.4mm) for mechanical safety and longevity. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Force needed 910gf to activate mechanical or electrical switches. Modification in operation mode On-Off, Off-On for electrical optimization. Type of termination Screw Terminal for connector or device. The highest AC voltage specification 250 V for the device. The highest DC voltage specification 250 V for components.
