Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 254 | ₹ 56.39000 | ₹ 14,323.06 |
| 64 | ₹ 70.49000 | ₹ 4,511.36 |
| 1 | ₹ 140.98000 | ₹ 140.98 |

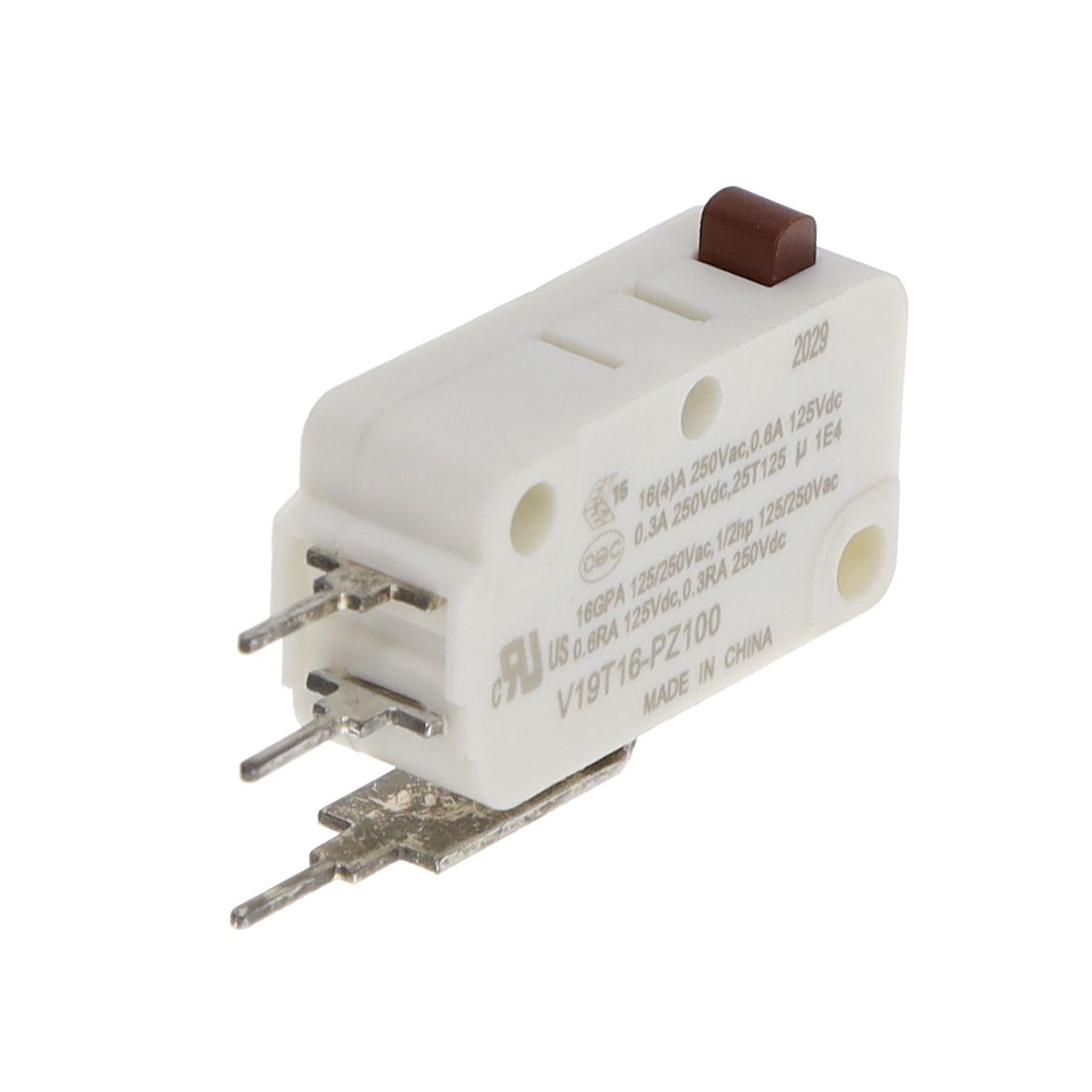

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | V19 | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-Mom | |
| Ampere Capacity Rating | 16A (AC), 600mA (DC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | 125 V | |
| Activator Mechanism Type | Round (Pin Plunger) | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | PC Pin | |
| Dust Water Resistance Rating | IP40 | |
| Key Product Highlights | - | |
| Activation Pressure Required | 100gf | |
| Detachment Pressure | 15gf | |
| Functional Position Setting | 0.579" (14.7mm) | |
| Initial Travel Distance | 0.047" (1.2mm) | |
| Switch Travel Difference | 0.016" (0.4mm) | |
| Excess Travel Distance | 0.039" (1.0mm) | |
| Physical Durability Cycles | 1,000,000 Cycles | |
| Cycle Durability Rating | 10,000 Cycles | |
| Ambient Temp Range | -25°C ~ 125°C |
Description
Incorporates a Round (Pin Plunger) actuator type to fulfill the desired function. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Configured for circuit type described as SPDT. Sets the ampere rating to 16A (AC), 600mA (DC). Offers a measurement of the differential travel at 0.016" (0.4mm). Indicates electrical lifespan evaluated at 10,000 Cycles. Rated with IP IP40 to safeguard against dust and moisture penetration. Mechanical strength 1,000,000 Cycles cycles for durability. Mounting configuration Chassis Mount for structural stability. Pressure applied 100gf for ergonomic or mechanical operations. Position configuration 0.579" (14.7mm) for correct device alignment. Temperature range -25°C ~ 125°C for environmental conditions impacting thermal efficiency. Additional travel distance 0.039" (1.0mm) for mechanical safety and longevity. Type of housing Box for safeguarding or transporting components. Initial distance 0.047" (1.2mm) for mechanical control or switch activation. Product status Active concerning availability and lifecycle. Force needed 15gf to activate mechanical or electrical switches. Classification series for the product or component V19. Modification in operation mode On-Mom for electrical optimization. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination PC Pin for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. The highest AC voltage specification 125 V for the device. The highest DC voltage specification 125 V for components.
