Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Proximity Detection Range | 0.039" (1mm) | |
| Detection Technology Type | Through-Beam | |
| Output Setup Options | Phototransistor | |
| Max Forward DC Current | 25 mA | |
| Maximum Collector Amps | 20 mA | |
| Max Collector-Emitter Breakdown | 20 V | |
| Activation Speed ms | 10µs, 10µs | |
| Ambient Temp Range | -30°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 4-SMD |

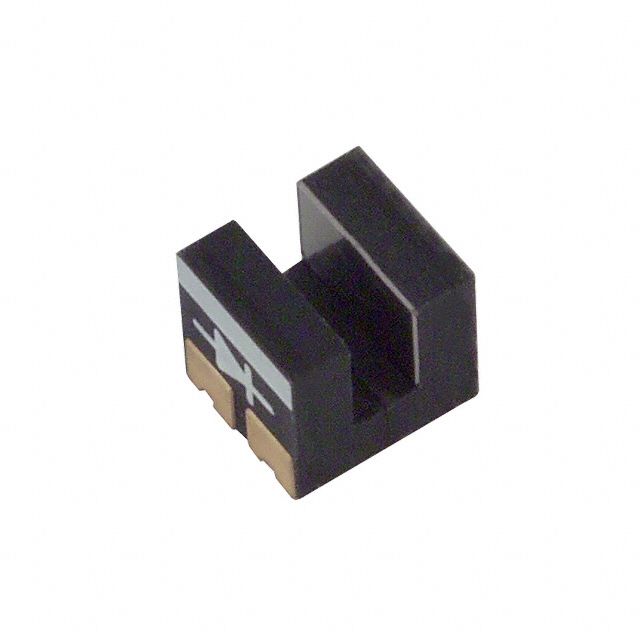

Description
Has a peak collector current (Ic) of 20 mA. Offers a maximum DC forward current (If) specified at 25 mA. Mounting configuration Surface Mount for structural stability. Temperature range -30°C ~ 85°C for environmental conditions impacting thermal efficiency. Preferences Phototransistor for establishing system output configurations. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 4-SMD that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Time taken to respond 10µs, 10µs for rapid operation or detection. Sensor detection range 0.039" (1mm) for sensors or detectors. Method of detection Through-Beam for device operation. Maximum collector-emitter breakdown voltage 20 V.
