Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Measurement Target Type | Rotary Position | |
| Core Technology Platform | Hall Effect | |
| Electrical Mechanical Turn Angle | 0° ~ 360°, Continuous | |
| Proportional Response Range | - | |
| Signal Output Format | SPI | |
| Processed Signal Type | - | |
| Activator Mechanism Type | External Magnet, Not Included | |
| Response Curve Straightness | ±1.41° | |
| Ohm Resistance Value | - | |
| Ohm Accuracy Percentage | - | |
| Power Supply Voltage | 3V ~ 3.6V | |
| Attachment Mounting Style | Surface Mount | |
| Lead Termination Type | SMD (SMT) Tab | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

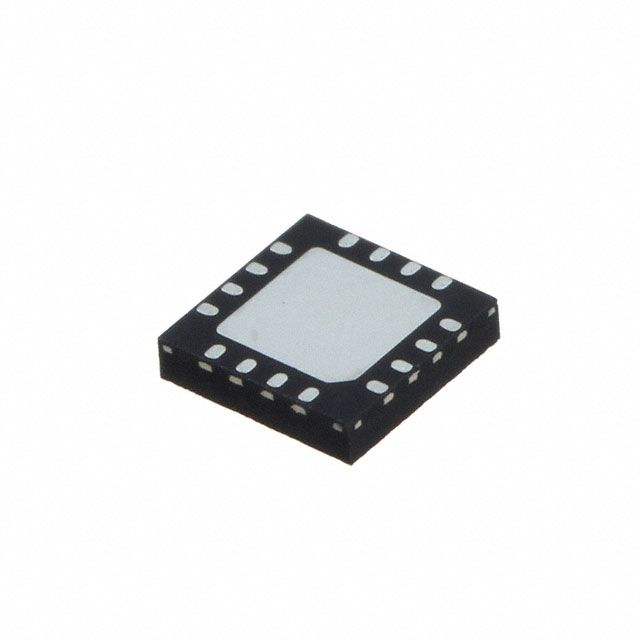

| Component Housing Style | 16-VQFN Exposed Pad | |
| Vendor Package Type | 16-QFN (4x4) |
Description
Incorporates a External Magnet, Not Included actuator type to fulfill the desired function. Intended for measurement purposes classified as Rotary Position. Ensures ±1.41° linearity for precise signal responses. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Output format SPI for electrical or signal communication. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-VQFN Exposed Pad that offers mechanical and thermal protection. Type of package 16-QFN (4x4) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The rotation angle for electrical/mechanical 0° ~ 360°, Continuous to ensure proper device operation. Supplier package type 16-QFN (4x4) for component selection. Voltage requirement 3V ~ 3.6V for electrical specifications. The primary technology platform Hall Effect linked to the product category. Type of termination SMD (SMT) Tab for connector or device. Voltage supply 3V ~ 3.6V for device operation.
