Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 4000 | ₹ 113.92000 | ₹ 4,55,680.00 |
| 12000 | ₹ 113.92000 | ₹ 13,67,040.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 12000 | ₹ 124.36000 | ₹ 14,92,320.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Measurement Target Type | Angle | |
| Core Technology Platform | Hall Effect | |
| Electrical Mechanical Turn Angle | 0° ~ 360° | |
| Proportional Response Range | - | |
| Signal Output Format | Analog Voltage | |
| Processed Signal Type | Clockwise Increase | |
| Activator Mechanism Type | External Magnet, Not Included | |
| Response Curve Straightness | - | |
| Ohm Resistance Value | - | |
| Ohm Accuracy Percentage | - | |
| Power Supply Voltage | 4.5V ~ 5.5V | |
| Attachment Mounting Style | Surface Mount | |
| Lead Termination Type | SMD (SMT) Tab | |
| Ambient Temp Range | -40°C ~ 150°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

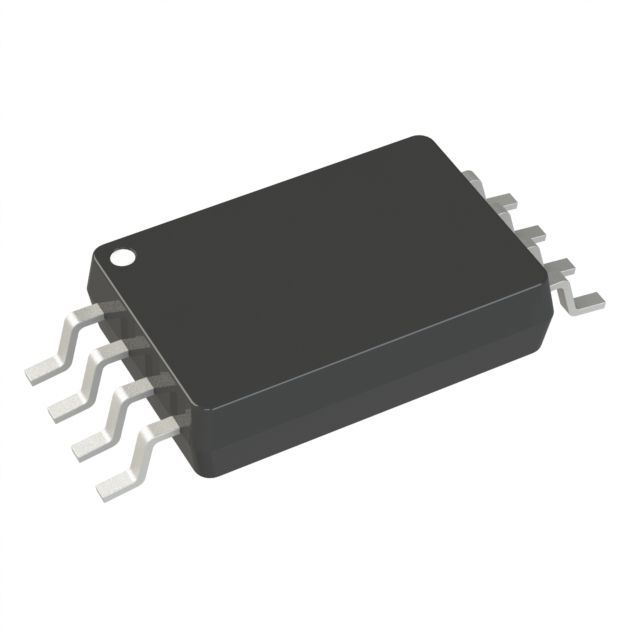

| Component Housing Style | 8-TSSOP (0.173", 4.40mm Width) | |
| Vendor Package Type | 8-eTSSOP |
Description
Incorporates a External Magnet, Not Included actuator type to fulfill the desired function. Intended for measurement purposes classified as Angle. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 150°C for environmental conditions impacting thermal efficiency. Output format Analog Voltage for electrical or signal communication. Category Clockwise Increase for transmitting communication or control output signals. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 8-TSSOP (0.173", 4.40mm Width) that offers mechanical and thermal protection. Type of package 8-eTSSOP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The rotation angle for electrical/mechanical 0° ~ 360° to ensure proper device operation. Supplier package type 8-eTSSOP for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. The primary technology platform Hall Effect linked to the product category. Type of termination SMD (SMT) Tab for connector or device. Voltage supply 4.5V ~ 5.5V for device operation.
