Stock:
Distributor: 145
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 540 | ₹ 49.59000 | ₹ 26,778.60 |
| 405 | ₹ 55.31000 | ₹ 22,400.55 |
| 315 | ₹ 57.22000 | ₹ 18,024.30 |
| 230 | ₹ 59.12000 | ₹ 13,597.60 |
| 150 | ₹ 61.04000 | ₹ 9,156.00 |
| 60 | ₹ 74.38000 | ₹ 4,462.80 |
Stock:
Distributor: 157
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 14000 | ₹ 77.51000 | ₹ 10,85,140.00 |
| 2000 | ₹ 83.97000 | ₹ 1,67,940.00 |

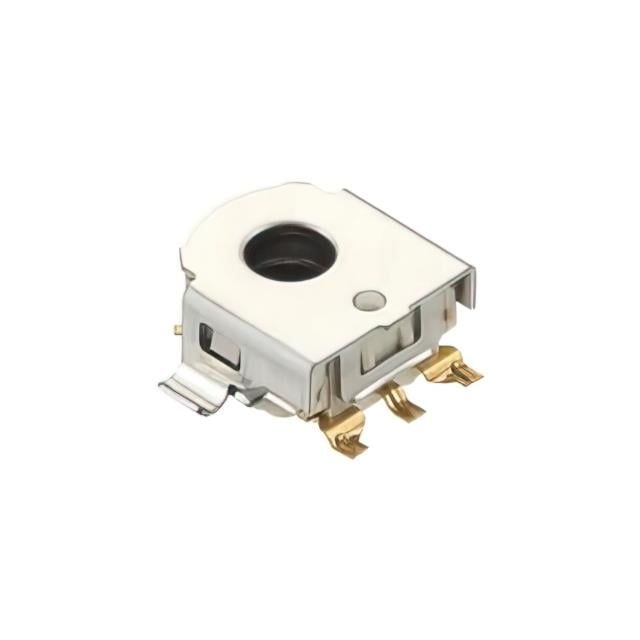

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | EC05E | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Position Encoder Category | Mechanical | |
| Exit Signal Category | Quadrature (Incremental) | |
| Encoder Pulse Count per Turn | 12 | |
| Power Supply Voltage | 5V | |
| Activator Mechanism Type | Hole for Shaft | |
| Notch Position Hold | Yes | |
| Integrated Toggle Control | No | |
| Attachment Mounting Style | PCB, Through Hole | |
| Installation Orientation | Vertical | |
| Lead Termination Type | PC Pin | |
| Minimum Rotation Cycles | 100K | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Incorporates a Hole for Shaft actuator type to fulfill the desired function. Includes a built-in toggle system categorized as No. Incorporates a detent mechanism rated at Yes. Refers to the category of features recognized by the encoder as Mechanical. Mounting configuration PCB, Through Hole for structural stability. Alignment Vertical for proper installation or signal positioning. Type Quadrature (Incremental) for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Number of pulses per revolution 12 for rotary encoders or motors. The minimum 100K cycles required for durability. Classification series for the product or component EC05E. Voltage requirement 5V for electrical specifications. Type of termination PC Pin for connector or device. Voltage supply 5V for device operation.
